Specifications
5v 2000ma power supply for musical instruments1.Input:AC110-240V 50/60HZ
2.Output:DC 5V 2000ma
tection:OVP,OCP SCP

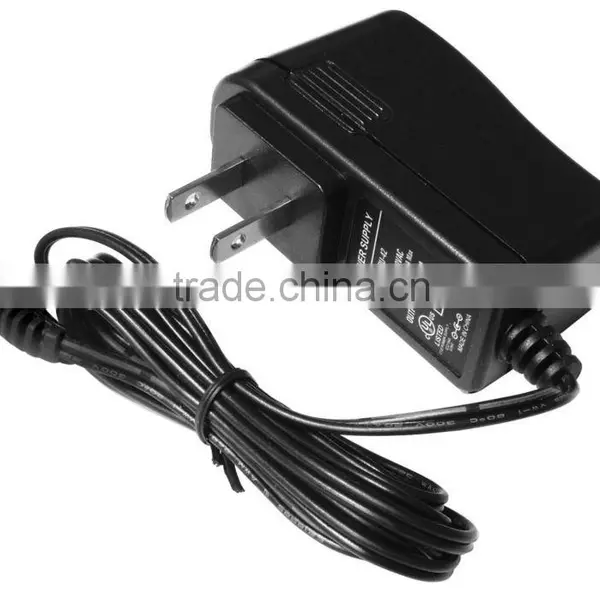

5v 2000ma power supply for musical instruments
1.Features:
- Input:AC 110-240V 50/60HZ
- Output:DC 12V 1A 1.5A 2A /9V 0.35a 1A 1.3A 1.5A 2A /8V 1A 1.3A 1.4A 1.5A 2A/5v 1A 1.5A 2A 2.5A 3A
- US,EU, AU,UK plug
- DC tips: you customize
- Output DC wire:1.2M
- Ripple noise:200mv
- Line regulation:+-5%
- load regulation:+-5%
2.Technical specification:
|
Input voltage Rated Voltage: 100~240Vac |
|
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
|
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
|
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
|
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
|
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |
4.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us.You will receive a prompt reply from us
5.Remarks:
1. delivery time:7 days (if quantity more than 4000Pcs,it will subject to our final
confirmation)
2. Payment: TT or western Union
6.About us :
our company is the professional manufacturer and specialized in power adapter of laptop ,cctv camera ,mobile phone ,router, tablet etc
7.Photos:
8.other populau products of our company:
ac adapter for epson pos printer:
