Specifications
yamaha 16v power adapter1.Input:AC 110-240V
2.output:DC16v 2.4a
tection: OCP ,OVP SCP
Yamaha 16v power adapter
1.Features:
Input voltage: |
110-240V(AC) |
Input power: |
100W |
Output voltage: |
16V(DC) |
Output voltage accuracy: |
±5%(no load) |
Dc connecter: |
customized |
Input Rated Current: |
1.0Amp |
Input Min. Current: |
0.1A |
Output DC wire: |
1.2m |
Ripple noise: |
100mv |
Protection: |
OCP,OSP,OVP |
2.Technical specification:
|
Input voltage Rated Voltage: 100~240Vac |
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
|
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
|
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
|
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |
3.Suggested application:
Digital Camera, lcd power supply, tv power supply, Notebook/laptop adapter ,ADSL AP, Wireless Lan Station, LCD Monitor,cctv camera, Hard Disk, Communication Terminals, Any Portable Device or Machine ,etc.
4.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us.You will receive a prompt reply from us
5.Reliability:
- 1)Heat-resistance: The yamaha 16v power adapter shall be stored at a temperature of 55+/-2 °C for 16 hours. Then No distortion and (Storage) it shall be subjected to standard astrospheres conditions for 2 hours,
- 2)Heat resistance: The yamaha 16v power adapter shall be placed at a temperature of 25+/-2 °C and operating at No abnormity (Operation) full load for 4 hours. Measurement shall be made.
- (3)Cold-resistance: The yamaha 16v power adapter shall be stored at a temperature of -20+/-2 °C for 16 hours. No distortion and
- (Storage) Then it shall be subjected to standard astrospheres conditions for 2 hour, No function error after which measurement shall be made.
- 4)Cold-resistance: The yamaha 16v power adapter shall be placed at a temperature of 0+/-2 °C and operating at No abnormity (Operation) rate75% full load for 4 hours. Measurement shall be made.
- 5)Body surface temp: at a entironment temperature of 23+/-2 °C , 100VAC/2.0A load ≤65°C For 2 hours, measure central section of sueface (thermoelectric couple method)
- 6) M.T.B.F: 50K Hours At 25°C With 80% Loading No abnormity
- 7) Life : Average Life Expectancy Or 3 Years

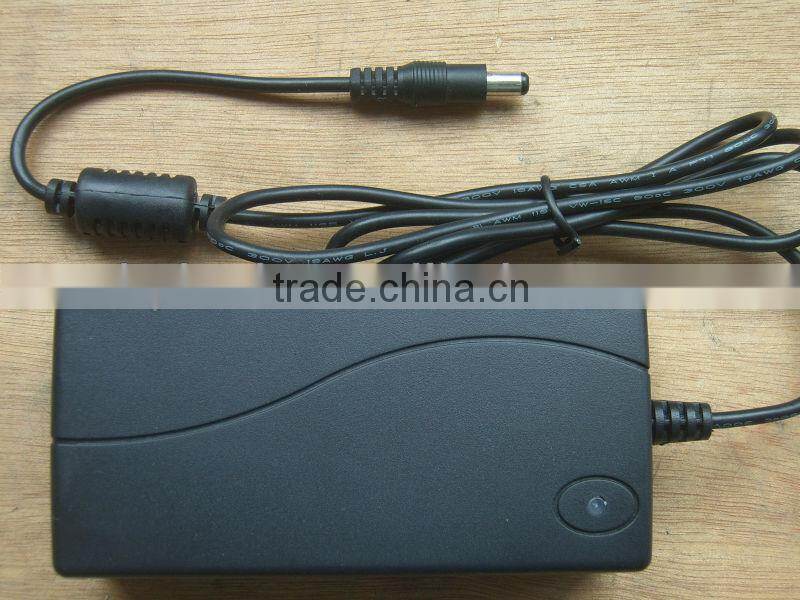

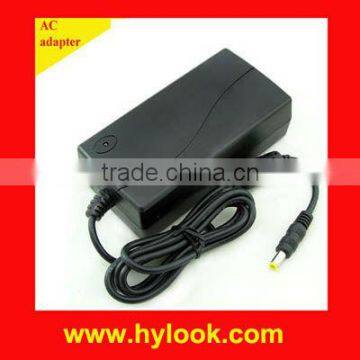

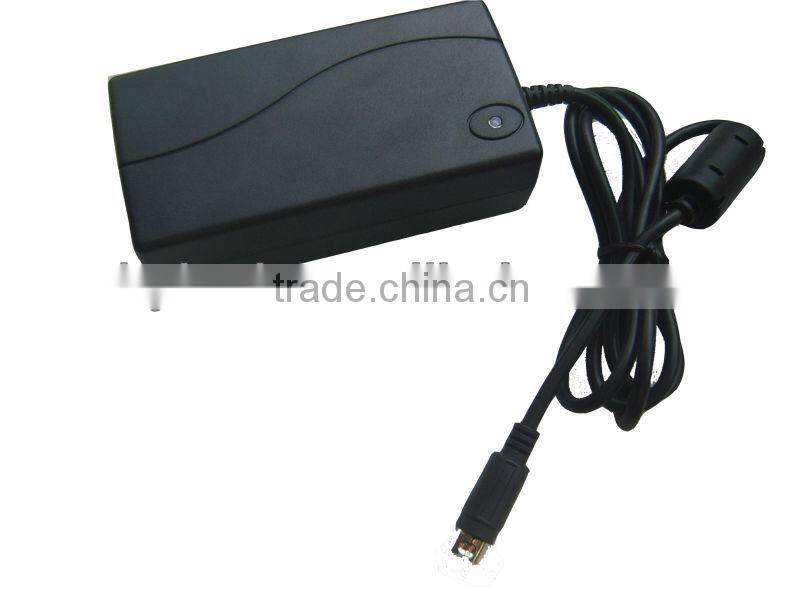

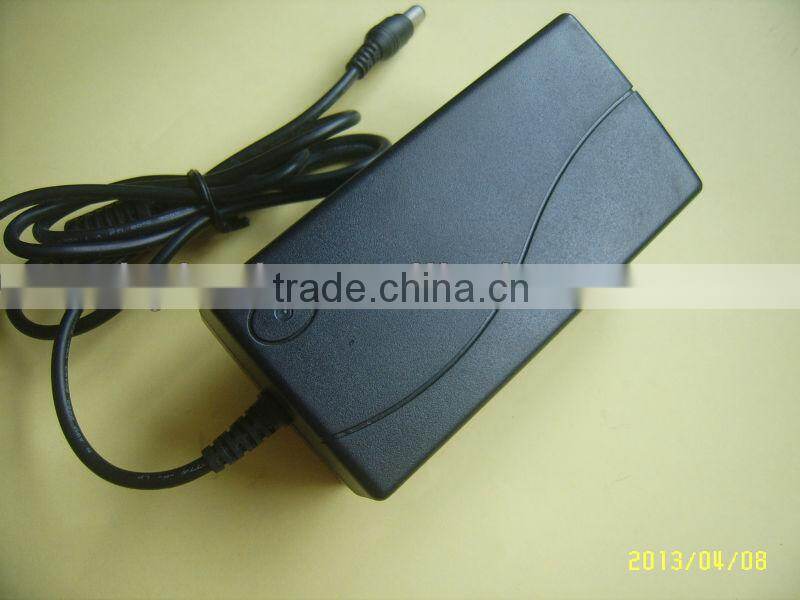

6.Photos:
7.about us:
Our company is the professional manufacturer and specialized in power adapter of laptop,CCTV camera,tablet, Pos printer,router,mobile phone ,car charger etc.

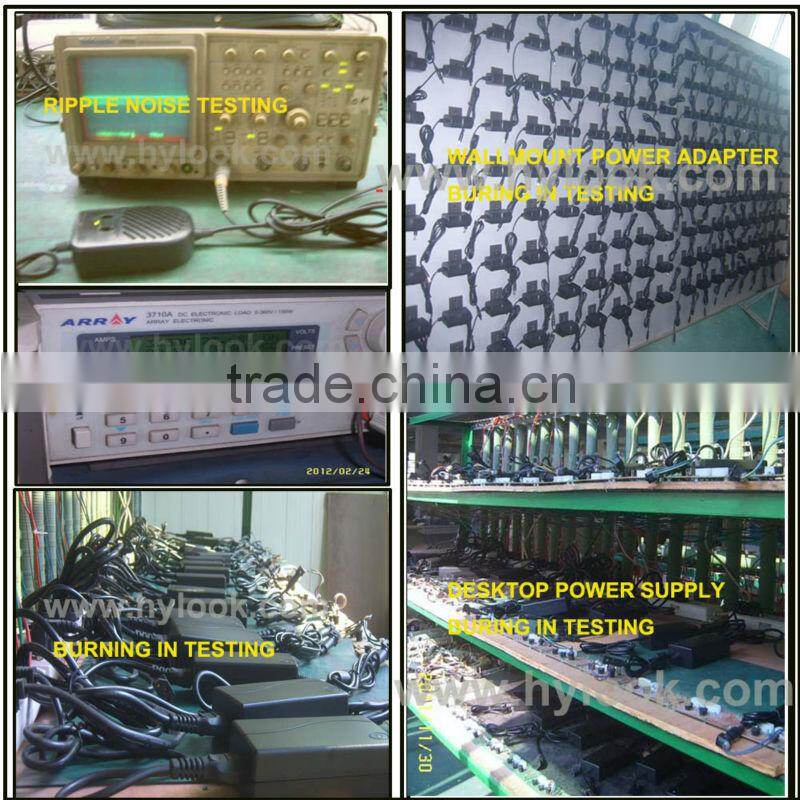

8.testing :

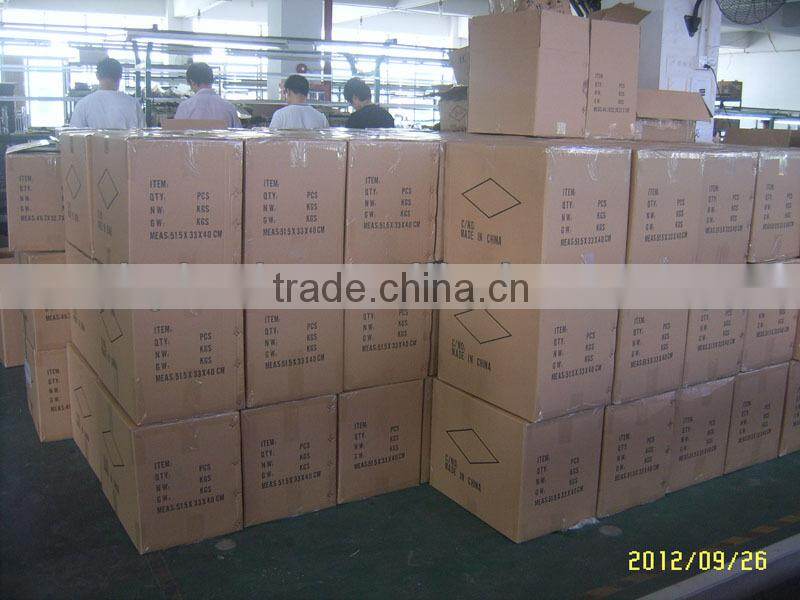

9: packages:
