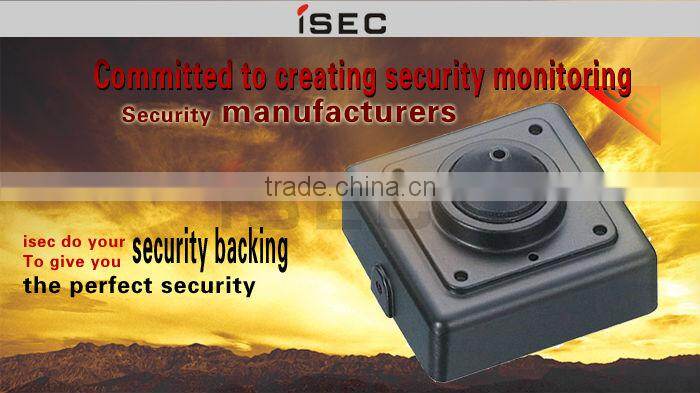

550TVL 12V 0.05lux Smallest Mini Surveillance Camera CCTV With House
Negotiable
MOQ: 2 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC
Model Number:
IC-C-CDN Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
90 Degree! 550TVL Smallest HD & Night Vision Mini Security Camera, Color Camera, 0.05luxNegotiableMOQ: 2 Units -
Best Mini Hidden Cameras For ToiletNegotiableMOQ: 2 Units
-
Mini Hidden Camera With 1/4 Sony Ccd 420TVLNegotiableMOQ: 2 Units
-
1/4"Sharp Color CCD Miniature Hidden Video Camera With Pinhole LensNegotiableMOQ: 2 Units
-
25mm 0.05Lux B W Hidden Mini CameraNegotiableMOQ: 2 Units
Place of Origin
Guangdong, China
Brand Name
ISEC
Model Number
IC-C-CDN Series
Type
Other, Analog Camera, Mini Surveillance Camera
Style
Mini Camera
Sensor
Other, CCD, Sony/Sharp Ccd
Technology
Pinhole
Special Features
Other, audio is optional
Specifications
420TVL Smallest Mini Surveillance Camera-2.5/2.8/6mm lens are optional
-CE FCC ROHS
-2 years warranty
-Paypal Accept
550TVL 12V 0.05lux Smallest Mini Surveillance Camera CCTV With House
Features:
♦ Latest Security Systems Design.
♦ Easy installation Mini Bullet Camera.
♦ 420/550/650TV Lines optional, 650TV Lines built OSD menu.
♦ 1/3 Sony Low Illumination Ccd , 1/4 Sharp Ccd, all original.
♦ 3.7mm super cone pinhole lens, 2.5/2.8/6mm lens are optional .
♦ 2 years warranty, CE/FCC/RoHS certificate approved.
♦ High Quality Cctv Cameras' manufacturer and supplier.
♦ Size Optional: 26x26 30x30 34x34 (mm)
♦ DC12V Power supply .
Technical parameter:
| Square Minature Camera | ||
| Model No | Specification | Size(mm) |
| IC-2250C | 1/3" SONY Low Illumination CCD, 420TVL, 0.1Lux, 3.7mm super cone pinhole lens | 26x26 |
| IC-2250CDN | 1/3" SONY Low Illumination CCD, 420TVL,0.1(color)/0.05(B/W), 3.7mm super cone pinhole lens | 26x26 |
| IC-2303C | 1/4" Sharp CCD, 420TVL, 1.0Lux, 3.7mm super cone pinhole lens, audio is optional | 30x30 |
| IC-2301C | 1/4" Sony CCD, 420TVL, 0.5Lux, 3.7mm super cone pinhole lens, audio is optinal | 30x30 |
| IC-2300C | 1/3" SONY Low Illumination CCD, 420TVL, 0.1Lux, 3.7mm super cone pinhole lens, audio is optinal | 30x30 |
| IC-2300CDN | 1/3" SONY Low Illumination CCD, 420TVL, 0.1(color)/0.05(B/W), 3.7mm super cone pinhole lens, audio is optinal | 30x30 |
| IC-2343C | 1/4" SHARP Low Illumination CCD, 420TVL, 0.5Lux, 3.7mm super cone pinhole lens, audio is optional | 34x34 |
| IC-2340C | 1/3" SONY Low Illumination CCD, 420TVL, 0.1Lux, 3.7mm super cone pinhole lens, audio is optinal | 34x34 |
| IC-2340CDN | 1/3" SONY Low Illumination CCD, 420TVL, 0.1(color)/0.05(B/W), 3.7mm super cone pinhole lens, audio is optinal | 34x34 |
| IC-2345C | 1/3" SONY Low Illumination CCD, 550TVL, 0.1Lux, 3.7mm super cone pinhole lens, audio is optinal | 34x34 |
| IC-2345CDN | 1/3" SONY Low Illumination CCD, 550TVL, 0.1Lux, 3.7mm super cone pinhole lens, audio is optinal | 34x34 |
| IC-2346C | 1/3" Sony Low Illumination CCD, 650TV Lines, 3.7mm flat pinhole lens, B/W and COLOR mode can be adusted, DWDR, built-OSD, OSD cable | 34x34 |
| Image Pick-up Device | 1/3" SONY COLOR CCD, 1/4" SHARP Low Illumination CCD | |
| Horizontal Resolution | 420TV Lines, 550TV Lines, 650TV Lines, | |
| Camera Lens | 3.6mm board lens, 1.8/2.1/2.8/6/10/25mm lens are optional | |
| Number of Pixels | NTSC:510(H)x492(V); PAL:500(H)x582(V) | |
| Scanning System | NTSC:525 Lines,60 Field/sec, | |
| PAL:625 Lines 50 Field/sec | ||
| Sync System | Internal Synchronization | |
| Gamma Characterlstic | '0.45 | |
| S/N Ratio | more than 48dB(AGC Off) | |
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; | |
| Minimum Illumination | 0.1Lux | |
| Video Output | 1.0Vp-p 75 ohm | |
| Gain Control(AGC) | Auto | |
| Operation Temperature | -10C~ +50C RH95% MAX | |
| Storage Temperature | -20C~ +60C RH95% MAX | |
| Power Supply | DC12V+_10%,120mA | |
| Case | Black | |
Camera Package:
Lens and View Angle for reference:
Camera Application:
Welcome to Isec Factory !
Camera Certificates:
After-Sale Services:
♦ We provide 2 years guarantee for all these cameras on the basis of ship date.
♦ Logo Printing, OEM order welcome
Contact us now ! We are quiet ready for you !
