External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950 Quality Choice

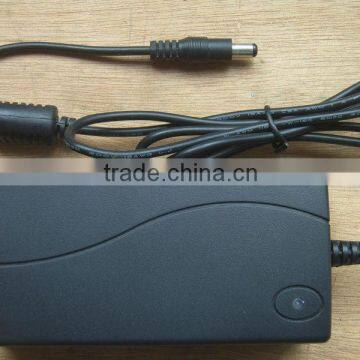

External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950 Quality Choice photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYLOOK
Model Number:
HL-P16-024
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name HYLOOK
Model Number HL-P16-024
Output Type DC
Connection Desktop

Specifications

External AC Power Adapter for Yamaha PA300
1.Input:110-240V
2.Output:16V 2.4A
3.For:Musical keyboard
4.MOQ:100pcs

External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950

  • This is High Quality PA-300 Replace AC Adapter
  • 100% HI-POT tested
  • Model:PA-300
  • Input Voltage: 100V-240Vac/1.2A (50-60Hz)
  • Output Voltage: 16Volts DC
  • Amperage: 2.4A
  • DC Plus Dimension: suit for yamaha keyboard
  • Warranty: 1 Year
  • Package Content:ONE AC Adapter



16V power supply Features:

Technical Specifications:

  • AC input voltage ……100-240VAC
  • Output ………16V 2400MA
  • Input frequency ………47-63Hz
  • AC inrush current(max.) …….20A/230V
  • Line regulation (full load).......±0.5%
  • Peak- to -peak ripple …….<500MV
  •  Working temperature………….0-35°C@100%,50°C@70% load
  • Setup rise hold up time………100ms,50ms,20ms@240VAC input
  • Strong made totally compatible part
  •  Over voltage protection………115%-135% rated output voltage
  • Withstand voltage………I/P-O/P 3Kvac,1 minute
  • Over load protection ………115%-135%fold back current limiting, Auto-recovery
  • Output connector:6.3x3.0mm

Advantages:

  • Universal input switchmode power supply with fixed 16 volt output voltage.
  • High efficiency miniature power supply for networking and telecom use.
  • Fully regulated power supply is useful for devices requiring 16 volts and 2400 mA or less.



  External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950  External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950External AC Power Adapter for Yamaha PA300 PSR-S650, PSR-S750,PSR-S950





Package include:

  • 1xAC Adapter  Pls note that this switching  power supply do not including the ac power cord It should buy separately





Compatibility:

Compatible for yamaha Part no.:

  • yamaha PA-300
  • yamaha PA-300B
  • yamaha PA-301
  • yamaha PA-300C

Model no.:

  •   P120
  •   P120S
  •   PSR1000
  •   PSR2000
  • 1000
  • 2000
  • 1100
  • 2100
  • 1500/3000
  • S-500/S-700/S-900



We are factory engaged in switching power supply  ,welcome your inquiry of our products
