Specifications
hidden miniature camera2Y Warranty & T/T for payment
3-5 days fast delivery
8Y factory experience
CE/FCC/ROHS

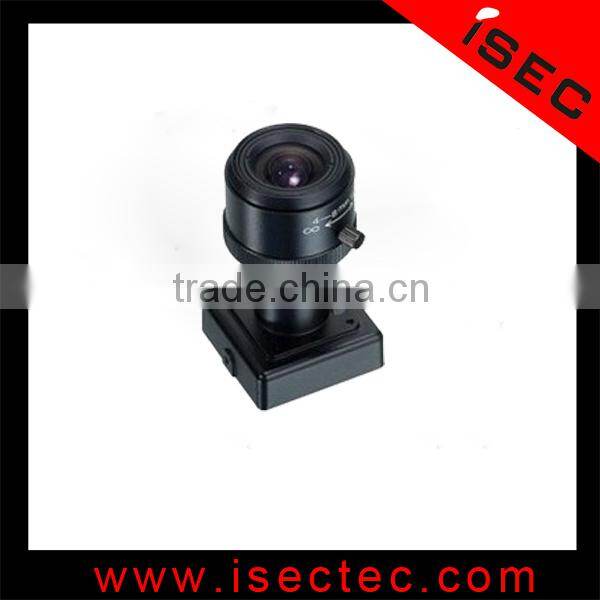

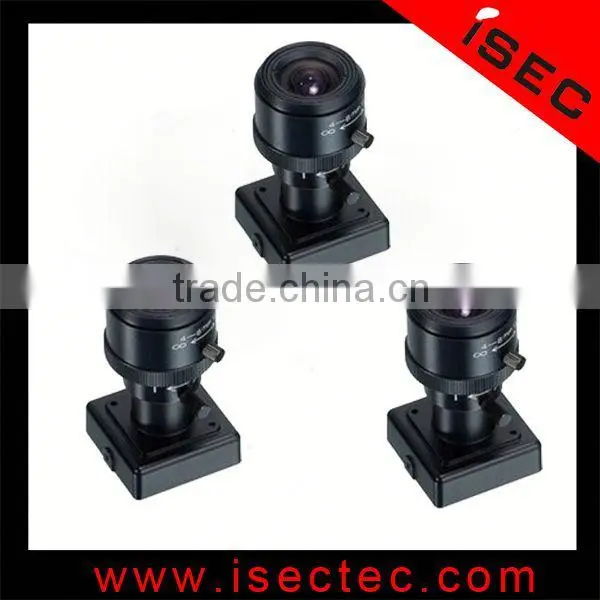

3.7mm/2.8mm lens very small hidden miniature camera
| Model | IC-34SOV | IC-34SSV | IC-34SQV | IC-34SKV | IC-34SFV |
| Image Sensor | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 760H CCD | 1/3" SONY Super HAD II CCD | 1/3" SONY Super HAD II CCD |
| CCD model no. | ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX639BK(PAL) ICX638BK(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
| DSP model no. | AVS03P | Effio-E CSD4140GG |
Nextchip 2040E | Nextchip 2030E | SONY CXD3142R |
| Horizontal Resolution | 800TVL OSD |
700TV Lines OSD |
650TV Lines OSD |
480TV Lines Hi-sensitivity |
420TV Lines Hi-sensitivity |
| TV System | PAL / NTSC | ||||
| Effective Pixels | PAL:1020(H)*596(V) NTSC:1020H*508(V) |
PAL:752(H)*582(V) NTSC:768(H)*494(V) |
PAL:500(H)*582(V) N:510(H)*492(V) |
||
| Lens | 2.8-12mm manual zoom lens | ||||
| Scanning System | 2:1 Interlace | ||||
| Sync System | Internal Synchronization | ||||
| S/N Ratio | More than 48dB(AGC OFF) | ||||
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec; PAL 1/50~1/100,000Sec | ||||
| Video Output | 1Vp-p,75ohm, BNC | ||||
| OSD cable | optional | ||||
| Audio | optional | ||||
| Gain Control(AGC) | adjustable | Auto | |||
| White Balance | adjustable | Auto | |||
| Backlight Compensation | adjustable | Auto | |||
| Mirror | ON/OFF | ||||
| Privacy Masking | ON/OFF (8 areas) | ||||
| Operation Temperature | -10C~ +50C RH95% MAX | ||||
| Storage Temperature | -20C~ +60C RH95% MAX | ||||
| Power Supply | DC12V, 300mA | ||||
| Dimension | 25*25mm / 30*30mm / 34*34mm | ||||
| Weigt | 80g | ||||

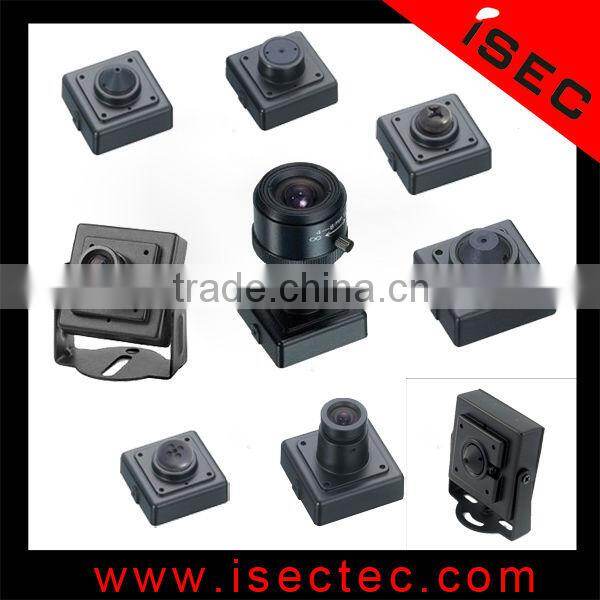

More options:
Why choose us?
u Provide one-stop-products: from CCTV camera, IP camera to DVR, video balun, etc to meet your whole project needs.
u 9 years R&D and export experience and leading and professional manufacturer in CCTV industry.
u High quality (material) with competitive and reasonable price.
u 2 year warranty and lifetime maintenance.
u Fast delivery: usually within 3-10 work days since payment arrived.
u Professional technical support; Best pre-sale, sale and after-sale service.
u Welcome OEM & ODM, mixed order.
u CE, FCC, RoHS passed.
Quality Control:
u All raw materials are carefully selected and inspected.
u Advanced production equipment is used and routinely inspected and serviced.
u All operators and employees are thoroughly trained.
u All products have passed the European Union RoHS standard and are CE, FCC certified.
u Professional logistics personnel are employed to control the damage during the physical distribution of products.
Questions about our hidden miniature camera:
u Q: How long is the warranty?
u A: 2 -years-warranty since delivered out.
u Q: What's the MOQ?
u A: 1pc for sample, 20pcs for OEM order.
u Q: How long is the delivery time?
u A: Sample order 3-5 working days, bulk order 5-10 working days.
u Q: How do make payment?
