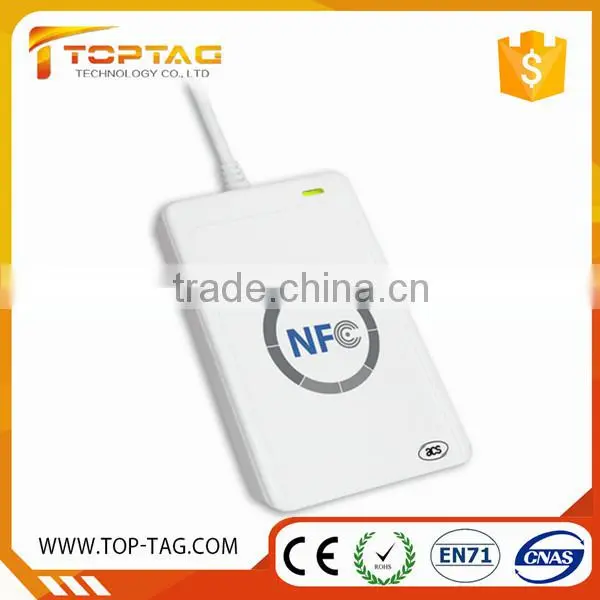

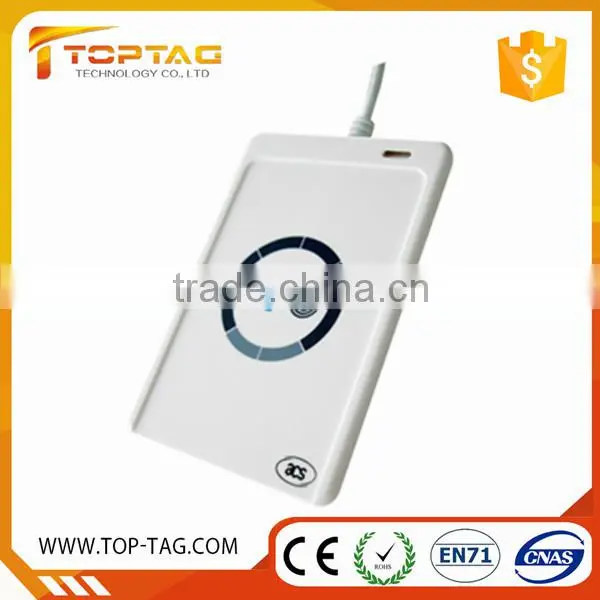

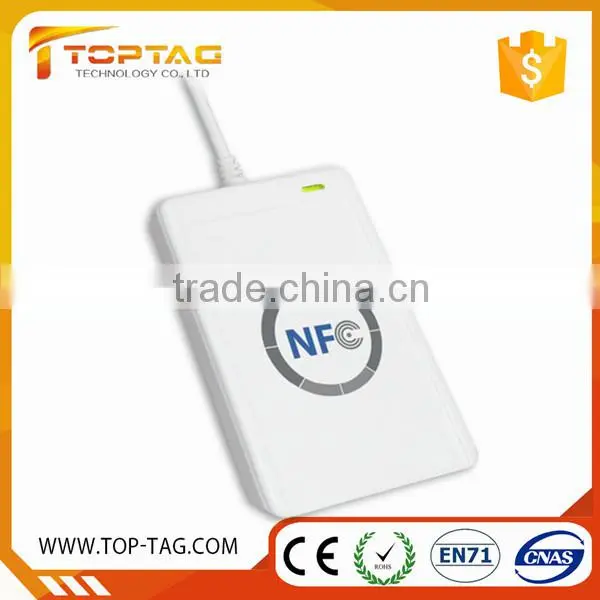

White 13.56MHz NFC RFID smart card reader ACR122 with USB interface
The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support not only Mifare and ISO 14443 Type A and B cards but also FeliCa and NFC tags.
By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR122U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.
CCID-compliant
PC/SC-compliant
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Supports new Mifare Ultralight C, Mifare Plus and DESFire EV1
Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes
Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
USB PnP
User-controllable bi-color LED
Compact size: 98 mm (L) x 65 mm (W) x 12.8 mm (H)
Light Weight: 70 g
User-controllable buzzer
Typical Applications
e-Government
e-Banking and e-Payment
e-Healthcare
Transportation
Network Security
Access Control
Loyalty Program
Dimensions |
98 mm (L) x 65 mm (W) x 12.8 mm (H) |
Weight |
70 grams |
Interface |
USB Full Speed |
Operating Distance |
<= 50mm |
Supply Voltage |
Regulated 5V DC |
Supply Current |
200mA (operating); 50mA (standby); 100mA (normal) |
Operating Temperature |
0-50°C |
Operating Frequency |
13.56 MHz |
Standards/Certifications |
ISO14443 1-4, CE, FCC, RoHS Compliant |
Operating System Support |
Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 6 |
2.Product images
