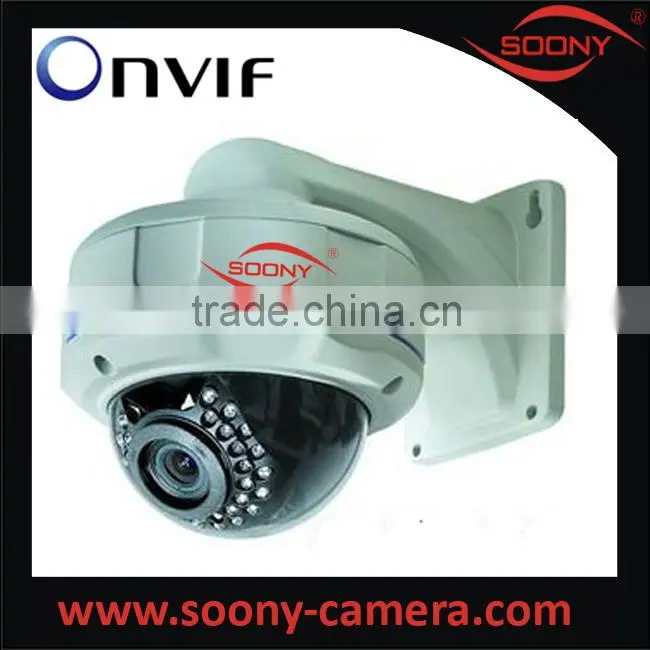

ONVIF 1080P Full HD IP Camera, Wireless IP Camera IP With POE
US$ 40 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SOONY or OEM
Model Number:
SY-IP2503TDMW Series
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Hd 720P WDR Waterproof Night Vision Megapixel IP Camera IPNegotiableMOQ: 2 Units -
Surveillance Outdoor 20m Infrared 0 Lux Waterproof IP66 CCTV Network CameraNegotiableMOQ: 2 Units
-
4-9mm Manual Zoom Lens Waterproof IR Bullet CCTV Wireless Outdoor Security System IC-IP2001NegotiableMOQ: 2 Units
-
4/6/8/12mm Fxed Lens Megapixel 2.0 Dual Stream Encoding CCTV Camerea IPNegotiableMOQ: 2 Units
-
40M Infrared Waterproof IR Day&Night 2MP Outdoor Wireless IP CCTV CameraNegotiableMOQ: 2 Units
Place of Origin
Guangdong, China
Brand Name
SOONY or OEM
Model Number
SY-IP2503TDMW Series
Type
Digital Camera
Style
Dome Camera
Sensor
Other, CMOS, 1/2.5 inch 3 Megapixel CMOS(Aptina AR0331)-TI Solution
Technology
Infrared
Special Features
Vandal-proof
Specifications
ONVIF 1080P Full HD IP Camera, Wireless IP Camera IP with POE-1/2.5 inch 3 Megapixel Progressive
-2560*1440@15fps
-P2P,cloud
Company Information
ONVIF 2 Megapixels 1080P HD IP Camera, WIFI IP Camera IP with POE
Product Description
1, Main features:
1) 1/4 inch 1 Megapixel Progressive scan CMOS (OV9712)-TI Solution; 1/3 inch 1.3 Megapixel Progressive scan CMOS (Aptina AR0130)-TI Solution; 1/2.5 inch 3 Megapixel Progressive scan CMOS (Aptina AR0331)-TI Solution
2) 3.6mm megapixels lens
3) H.264 / MJPEG compression Optional
4) 1MP (720P):1280×720@25fps 1.3MP (960P):1280×960@25fps, 2MP(1080P):1920x1080@25fps, 3MP(1440P): 2560*1440 , ONVIFV 2.0 Compliant
5) Supports P2P function,no need set up router
6) Supports IP changes and cross-network monitoring
7)IR Night Vsion distance: 25M (30pcs IR leds)
8) DC12V or Power Over Ethernet (PoE IEEE802.3af)

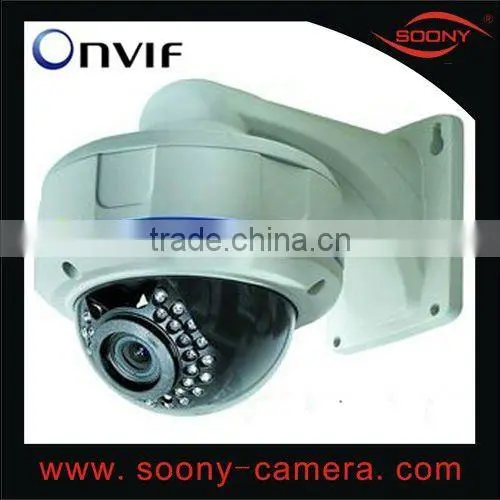

2, ONVIF 1080P Full HD IP Camera, Wireless IP Camera IP with POE Picture:

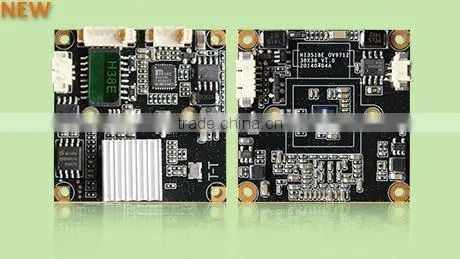

3, 720P (1MP) camera module:

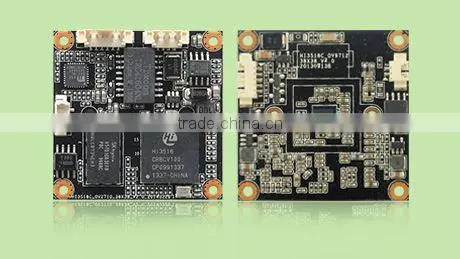

960P (1.3MP) camera module:

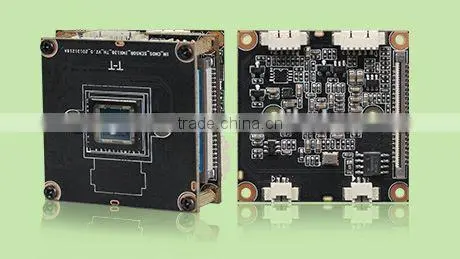

1080P (2MP/3MP) camera module:
4, WIFI Module:

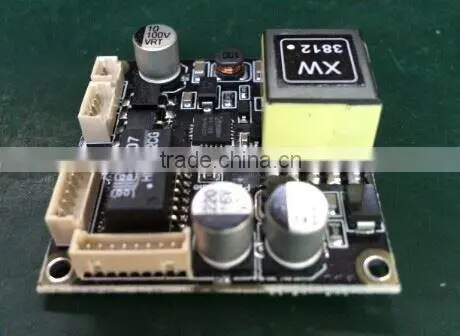

5, POE Module for IP Camera
2MP camera Day/Night Effect:
7, Specification:
| Model | SY-IP2501HDW | SY-IP2502TDW |
SY-IP2503TDW
|
| Item | Dome IP Camera | ||
| Device Type | 1 Megapixel Progressive scan CMOS (OV9712)-TI Solution | 1.3 Megapixel Progressive scan CMOS (Aptina AR0130)-TI Solution | 3 Megapixel Progressive scan CMOS (Aptina AR0331)-TI Solution |
| Size | 1/4' | 1/3' | 1/2.5' |
| Day and Night | Yes | ||
| Min.Scene Illumination | 0.01lux(IR ON) | ||
| Infrared sensitivity | Support | ||
| IR Filter | IR-CUT | ||
| IR-led | Yes | ||
| IR distance | 30M | ||
| Electronic shutter | 1/5-1/15,000 /S | ||
| Lens | |||
| Lens | 3.6mm megapixel lens | ||
| Focus | fixed Lens | ||
| Aperture | Fixed Aperture F1.2 | ||
| Video | |||
| Compression | H.264 Main Profile/Baseline | ||
| Picture Resolution | 1MP(720P):1280x720@25fps | 1.3M (960P):1280×960@25fps | 2MP (1080P):1920x1080@25fps |
| Steam flow | Support dual stream | ||
| Bit Rate | 128-8192kbps | ||
| Bit Rate Type | CBR/VBR | ||
| S/N Ratio | >50DB | ||
| Image enhancement | Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted | ||
| Subtitles input | Support channel name, date/time | ||
| Flip Config | Up/down, Left/right | ||
| Audio | Support the microphone input and LINE OUT, support two-way voice intercom equipment | ||
| Audio input/ output | one channel audio input, one channel audio output | ||
| Audio Compression | G.711/G.726 | ||
| Alarm input/output | one channel alarm input, one channel alarm output | ||
| Alarm processing | The control center to monitor, Go to PTZ preset pos, Send E-mail, Log record,SD card storage etc. | ||
| Network | |||
| Protocal | HTTP,TCP/IP,UDP, SMTP, DDNS, DNS, SNTP,DHCP, FTP, RTP, RTSP,UPNP,ONVIF | ||
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector | ||
| Safety | IP address filtering,User level password protection,The user access log | ||
| Software | |||
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google, firefox etc. | ||
| Mobile Phone | Support iPhone, Android, Bit rate: 32K – 512K adjustable, Frame rate: 6–12 fps | ||
| Software Management | CMS and the devices Compatible with ONVIF | ||
| Remote Access | DDNS, Software, P2P | ||
| Physical properties | |||
| Power Comsumption | DC 12V, Module power consumption is less than 2 W | ||
| Temperature | -20°~60°C | ||
| Humidity | -10~85% | ||
