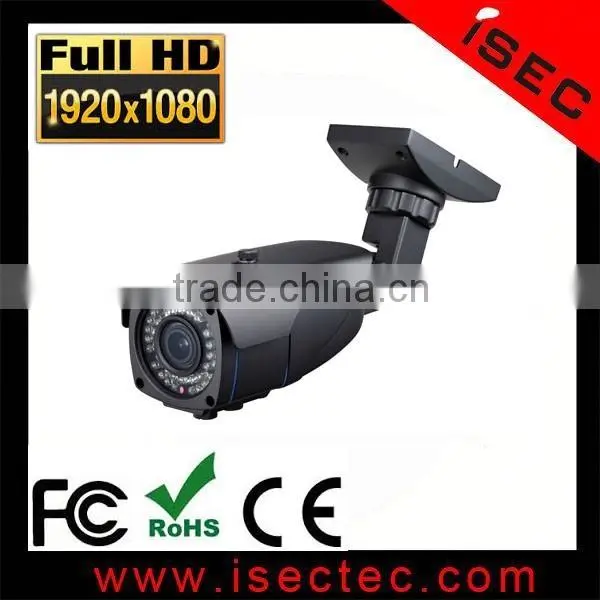

HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System

HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System thumbnail-1
HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System thumbnail-2
HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System photo-1
HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System photo-2
US$ 40 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC or OEM
Model Number:
IC-LBMW40-JI
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC or OEM
Model Number IC-LBMW40-JI
Type Digital Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

1.HD-SDI Varifocal Lens
2 .40m IR Waterproof CCTV Camera System
3. Megapixel HD CCTV (BNC) CCTV (BNC)Output
4. 2.8-12mm



Product Description



   HD-SDI Varifocal  Lens 40m IR Waterproof CCTV Camera System HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System



Features:

** 1/3.0" Progressive CMOS

** Standard HD-SDI signal output

** Full HD resolution, 1920*1080, 25/30fps

** Mini. Illumination of 0.1Lux color @F1.2, 0Lux B/W @F1.2

** 3D- NR, WDR, Sense UP, Defog, mirror, Flip, AWB, AGC, BLC, HLC

** OSD

** True day and night with ICR

** 3.0 Mega Pixel Lens



  Detail display



HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System



  Specifications

                                 HD-SDI Varifocal  Lens 40m IR Waterproof CCTV Camera System

Model NO. IC-LBMW40-JI
VIDEO
Image Device 1/3” Sony IMX222 CMOS
DSP Eyenix EN773A DSP
TV System 1080P@ 25(PAL)/30(NTSC)
Total Pixels 2010(H) * 1108(V)
Effective Pixels 1944(H)*1092(V)
Scanning System 2:1 Interlace
Synchronization Internal
Image Resolution 1920*1080(1080P)
Frame rate 25FPS(PAL) / 30FPS(NTSC)
Min. Illumination Color: 0.1lux F1.2; B/W: 0 Lux(IR ON)
S/N Ratio >50dB
Video Output HD-SDI:SMA connector ,CVBS:BNC connecor
LENS
Focal Length 2.8~12MM 2.0 Mega Pixel Manual Varifocal Lens
IR-CUT ICR
OPERATIONAL
Day & Night AUTO /COLOR /B/W /EXT
WDR Low / Middle / High
Noise Reduction(3DNR) low / middle / high / OFF
HLC 0~20 Adjustable
BLC ON/OFF
Sense Up 1X~8X Adjustable
Auto Gain Control 0~20 Adjustable
Defog ON/OFF
Motion Dectection ON(Motion area and sensitivity can be settled)/OFF
Shading ON/OFF
Pricacy Mask 32 Masks
Electronic Shutter Speed PAL:1/25 ~ 1/60,000sec; NTSC:1/30 ~ 1/60,000sec
White Balance Auto/Low/Middle / High / off
ACE ON/OFF
Focus ADJ ON/OFF
Brightness 0~20 Adjustable
Gamma 0.4 / 0.5 / 0.55 / 0.6 / 0.65
Mirror ON/OFF
Flip ON/OFF
Digital Zoom 1X~8X Adjustable
Sharpness 0~10 Adjustable
OSD Language English, Simple Chinese, Spanish, Deutsch, French, Traditional Chinese,  Korean, Japanese, Nederland, Italian
Infrared LED 42pcs
IR Distance about 40 Meters
Infrared Spectrum 850nm
ENVIRONMENTAL
Operation Temperature -10℃~ +50℃
Storage Temperature -20℃~ +60℃
Water-proof Casing IP66
ELECTRICAL
Input Current 500mA
Adapter Requirement DC 12V, 1A
MECHANICAL
Color Black case
Bracket /
Dimensions 185Ø119X83(H)mm
Net Weight 1300g/pcs
TRANSMISSION DISDANCE
RG60 Coaxial Cable 180-200 Meters





application                                                                                                              HD-SDI Varifocal Lens 40m IR Waterproof CCTV Camera System
