1080P HD-SDI Cctv Bullet IR Security Camera

Name: 1080P HD-SDI Cctv Bullet IR Security Camera
Brand: ISEC
SKU: 100467053
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ISEC

Model Number:

IC-LBMW60-C Series

Shenzhen Isec Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ISEC

Model Number IC-LBMW60-C Series

Type Other, Digital Camera, IR Security Camera

Style Bullet Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

1080P HD-SDI Cctv Bullet IR Security Camera
-CE FCC ROHS
-50M IR Night Vision
-4-9mm Varifocal Lens
-OEM Camera Factory

1080P HD-SDI Cctv Bullet IR Security Camera

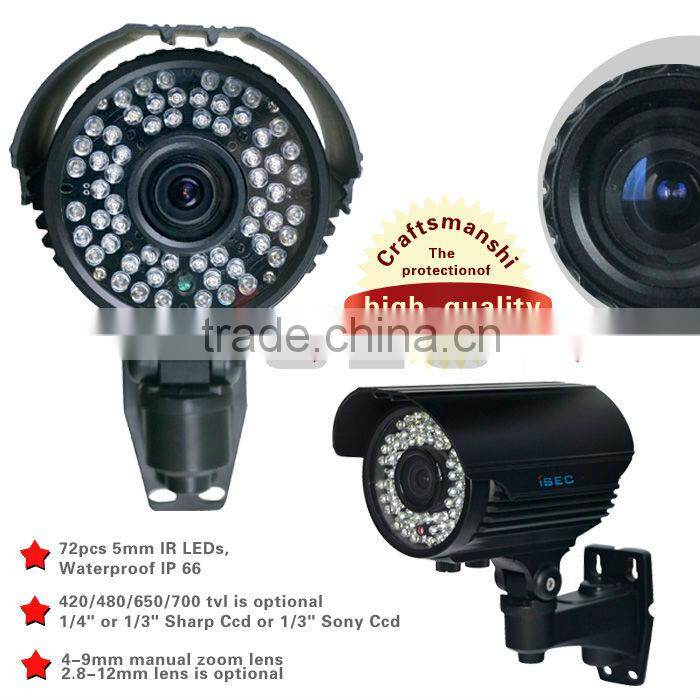

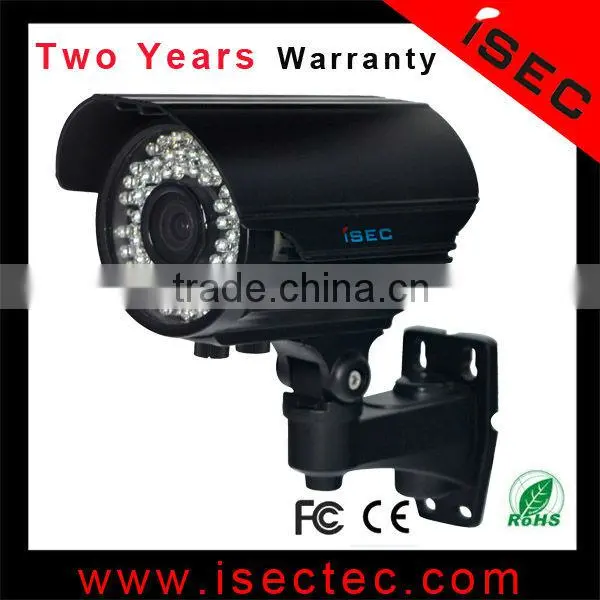

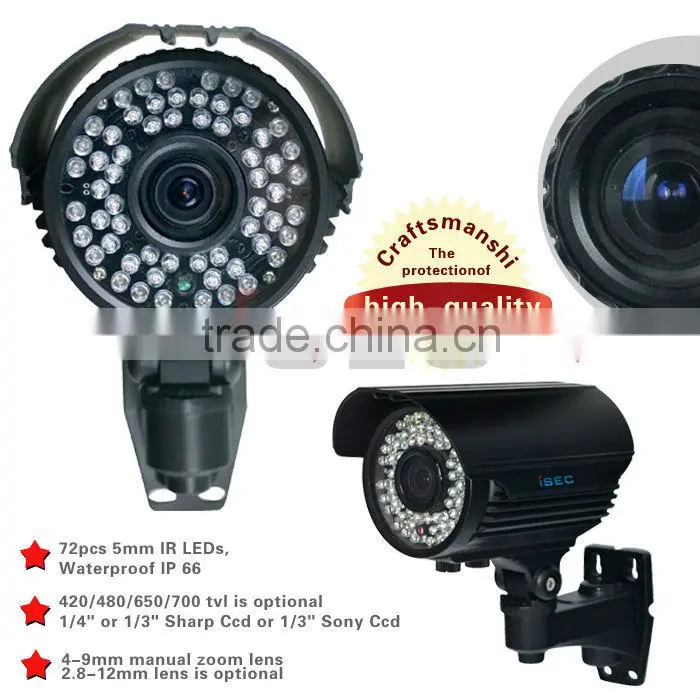

Features:

♦ Latest Security Systems Design.

♦ Easy installation IP66 Weatherproof IR Dome Camera.

♦ 420/480/650/700/800TV Lines optional, 600/700TV Lines built OSD menu

♦ 1/3 Sony Effio-E Ccd (NR, PM, MD) , 1/4 Sharp Ccd.

♦ 4-9mm Varifocal Lens (2.8-12mm optional)

♦ 72pcs of Ø5 IR leds, IR Distance 60M, Low Illumination .

♦ 2 years warranty, CE/FCC/RoHS certificate approved.

♦ High Quality Cctv Cameras' manufacturer and supplier

♦ DC12V Power supply .

Camera Deatils:

Technical parameter:

Model	IC-LBMW60-CSS	IC-LBMW60-CSQ	IC-LBMW60-CSM	IC-LBMW60-CSK	IC-LBMW60-CSF	IC-LBMW60-CHA
Image Sensor	1/3" SONY ICX673AK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX633BK CCD	1/3" SONY ICX633BK CCD	1/4" SHARP RJ2421FA CCD
Horizontal Resolution	700TV Lines Hi-sensitivity Effio, ATR, OSD, NR	600TV Lines Hi-sensitivity, OSD	540TV Lines Hi-sensitivity	480TV Lines Hi-sensitivity	420TV Lines Hi-sensitivity	420TV Lines Hi-sensitivity
TV System	PAL/NTSC
Effective Pixels	PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)	PAL:795 (H)× 596(V), NTSC:811 (H) ×508 (V)		PAL:752(H)x582(V) NTSC:768(H)x494(V)	PAL:500(H)x582(v) NTSC:510(H)x492(v)
IR LED	72pcs Ø5mm IR LEDs
IR project distance	60 meters
Lens	4-9mm manual zoom lens
	2.8-12mm lens is optional
Minimum Illumination	0 Lux/F2.0 (LED ON)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Scanning System	NTSC:525 Lines,60 Field/sec,
	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	≥65dB (AGC OFF)	≥54dB (AGC OFF)		≥48dB (AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output	Composite Signal (1.0Vp-p, 75Ω), BNC
Gain Control(AGC)	Auto
White Balance	Auto
Backlight Compensation	Auto
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Waterproof	IP66
Power Supply	DC12V,400mA
Dimension	Ø161(W) x94(H) x102(D)mm
Camera Case Color	default: purple
weigt	1.5kg
