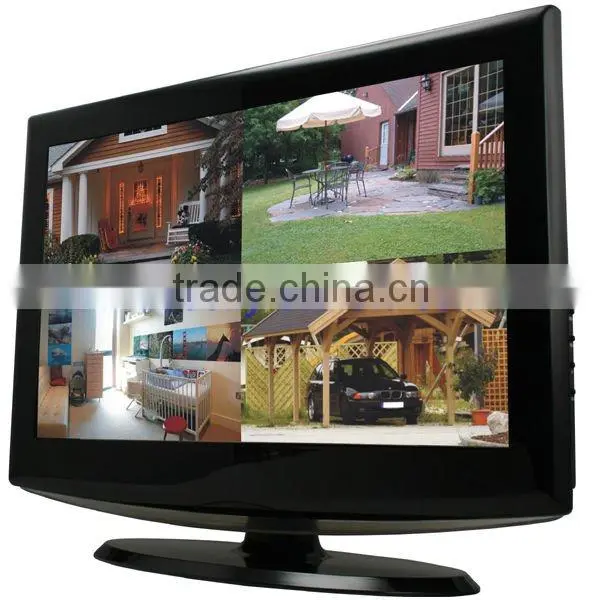

4ch Mini Cctv DVR

4ch Mini Cctv DVR thumbnail-1
4ch Mini Cctv DVR photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SOONY or OEM
Model Number:
SY-DVR048L
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SOONY or OEM
Model Number SY-DVR048L

Specifications

4CH H.264 real-time DVR
support dual stream
with 19'' 16:10 LCD monitor
Support D1, HD1 and CIF
support audio, alarm

Features:

DVR integrated with 19'' 16:10 LCD monitor
H.264 real-time high compression, support dual stream network transmission
Stand-alone Linux2.6 operation system
Graphics & Windows OSD interface
Support D1, HD1 and CIF recording resolution
ADPCM audio compression
Support pentaplex operation: live, record, playback, backup, net transmission
Support to operate with USB mouse
Support real time remote view with Mobile Phones (based on Windows Mobile, Symbian S60 3rd & iPhone)
Support to backup & upgrade with USB flash disk
Support to real time remote view with IE (Internet Explorer)
Support to transmit audio via network
Support PTZ control via built-in RS-485 port
Selectable packing time for recording files
Self-recovery after power reconnected



Specifications:



Model

SY-DVR048L

Video Compression

H.264

Video System

NTSC / PAL

Operation System

Linux

Video Input / Output

BNC 4-channel inputs / 1-channel output

Audio Compression

8kHz*16bit ADPCM

Audio Input / Output

RCA 4-channel input / 2-channel outputs

Display Frame Rate

PAL: 100fps / NTSC: 120fps

Playback Resolution

PAL: CIF(352x288), HD1(704x288), D1(704x576)

NTSC: CIF(352x240), HD1(704x240), D1(704x480)

Total Recording Frame Rate

PAL: 25fps@D1, 50fps@HD1, 100fps@CIF

NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF

Recording Mode

Always / schedule / motion detection / sensor triggered

Recording Pack Time

15/30/45/60mins selectable

HDD Interface

1 fixed SATA HDD rack, support up to 1TB HDD

Network Interface

RJ45, 10M/100M

Network Protocol

Support TCP/IP, UDP, DHCP, DNNS, PPPoE

Network Function

Support to live view with IE (Internet Explorer) & with Mobile phone

USB2.0

USB mouse, USB disk (backup, upgrade)

Playback

Local: playback 4 channels simultaneously

Network: playback 1 channel simultaneously

Playback Mode

Normal play, fast forward, fast rewind, frame by frame

Backup Methods

USB flash disk, USB disk, USB CD/DVD-RW & Network

PTZ Control

Built-in RS485, support PELCO-P & PELCO-D

Alarm Mode

Motion Detection, Sensor triggered, video loss, HDD error, HDD full

Senor & Alarm I/O

4 sensor inputs / 1 alarm output

Power Supply

DC 12V/5A (power adaptor included)

Power Consumption

10~15W

Working Temperature

-10 to +40

Working Humidity

10% to 90%

Dimension

300 x 226 x 56.5mm (W x H x D)



Monitor Specifications

TFT-LCD Monitor

19'' in Diagonal

Resolution

1440x900

Aspect Ratio

16:10

Peak Brightness

300 d/m2 (Typical)

Contrast Ratio

1000:1 (Typical)

Number of Colors

16.7M

Response Time

5 ms

Viewing Angle

80/80, 80/80

LVDS Digital Interface

Dual 8 bit
