9CH 18CH CCTV camera electrical distribution box, Centralized power supply for cctv

Specifications

CCTV power supply
short-circuit protection
overcurrent protection
Power 18pcs camera
overvoltage protection, PTC function

9CH 18CH CCTV camera electrical distribution box, Centralized power supply for cctv



Main Features



--9ch CCTV power box,

--For 12V AC individually fused outputs
--Circuit Short protection
--AC power LED indicator
--Individual LED for each output
--Unit maintains camera synchronization
--Easy installation saves time and eliminates costly labor
--100% full load burn-in test

--With high-low voltage protection, safty, lightning protection, IC,filteration ,high voltage tube. More steady...



Application



Specification

Input Voltage: AC 100-240V
Output Voltage:  DC12V
Total Output Current: DC12V, 10A

Fuse Rating: 2A
Total Outputs:  9 ways, power 9pcs camera simultaneously



Service requirement
Cooling: Natural cooling

Ripple& Noises: <150mV
Operating Temperature -25C ~ +60C, 20% ~ 90%RH
Storage Temperature: -40C ~ +70C, 10% ~ 95%RH



Protection

Overcurrent protection

Short-circuit protection

Overvoltage protection,  with PTC function





Supply 1A, 2A, 5A cctv power adapter, central power supply box. And cctv cables, cctv BNC connector, cctv UTP video balun, and DC power plug. Pls contact for details.

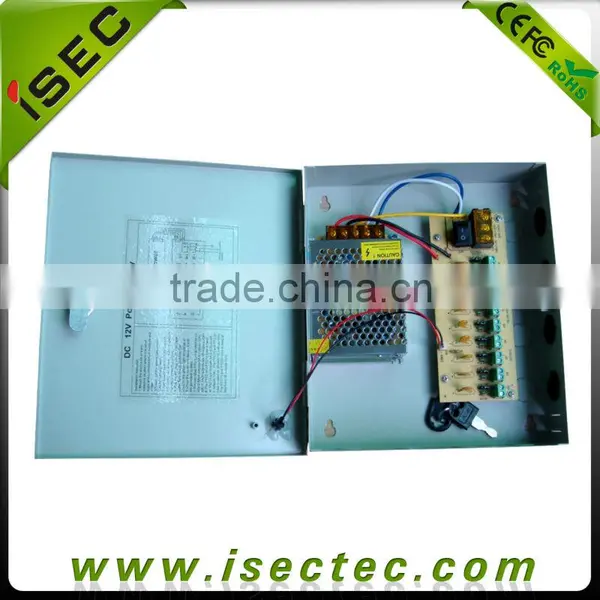

Picture Show
