Specifications
best universal laptop ac adapter1.MOQ:100 pieces
2.Output:DC15V/16V/18V/19V/20V/22V/24V
3.Warranty:12 months
4.Power:120W

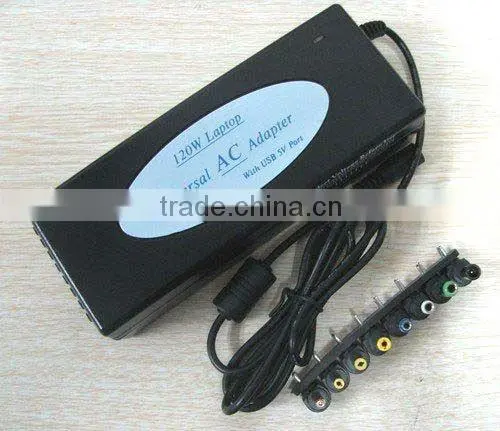

best universal laptop ac adapter
Good quality and competitive price
Small size, light weight and easy taking
High reliability and long life
Brand new, work as genuine parts, and 100% OEM compatible
1.Specification
-
General Description:
This model is a universal charger, operation at input AC voltage 95V to 265V and output DC voltage of 15V-20V/6A max 22-24V /5A max ,with protection functions ,use of the notebook computer power supply.
8 Tips:
Tip A-6.3mm*3.0mm
Tip B-6.0mm*1.0mm
Tip C-5.5mm*2.5mm
Tip D-5.5mm*2.1mm
Tip E-5.5mm*1.7mm
Tip F-4.8mm*1.7mm
Tip G-4.0mm*1.7mm
Tip H-3.5mm*1.35mm
2.Electric Characteristics:
| No. | Item | Specification |
| 1 | Rated Input Voltage(50--60 Hz) | AC 120 OR AC230V |
| Vibration Input Voltage Range(47--63Hz) | AC 100 --260V | |
| 2 | Input rate current | 1.5,2.0A |
| Input power | 14OW | |
| 3 | Output power | 120W |
| efficiency | >85% | |
| 4 | Output voltage NOLOAD: | DC: 15V/16V/18V/19V/20V/22V/24V (0/+0.5V) |
| 5 | Output voltage at rating load | DC: 15V/16V/18V/19V/20V/22V/24V (-0.4/+0.5V) |
| Output current | 12--20V /6A 22--24V /5A | |
| USB port output voltage | 5.5--6.5V | |
| USB port output current | 1.0A max | |
| 6 | Overload protection | yes |
| 7 | Over voltage protection | yes |
| 8 | Short circuit protection | yes |
| 9 | Ripple noise | 200mv |
| 10 | Line regulation | (+/-5%) |
| 11 | Load regulation | (+/-5%) |
| 12 | Weight | 600g |
| 13 | Operating temperature | 0--40C |
| Operating humidity | 20%--80% | |
| 14 | Storage Temperature | (-10)0C to 70C |
| Storage humidity | 10%--90% |
3.Advantages
1. The AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wav
4.Packaging & delivery
- Packaging Quantity: 50pcs/carton
- MOQ: 100pcs
- Dimensions: 56*42*35cm
- G.W.: 19kg
- N.W.: 18kg
- Delivery Details: within 7 days after receipt of payment
5.Product Features:
1.Safety performance, high reliability and safety in accordance with the standards and procedures for applying for Certification of production
2. are original authentic electronic components,OVP OCP SCP,
3. Bright green power IC solutions, low-power design, efficiency in more than 83% static power consumption is minimal, low heat, high temperature burn-in of full load, 100% after 4 hours, strict aging test, the constant voltage constant current test, negative rate is low, the quality assurance
4.All materials are free from (and not exceed the prescribed limits) of the European limit / disable cadmium, chromium, lead, mercury, PBB and PBDE, six kinds of toxic substances.
5.a large number of SMD, compact structure, small size, fine appearance
6.Packing: export packaging, a single white box, and then into the outside box

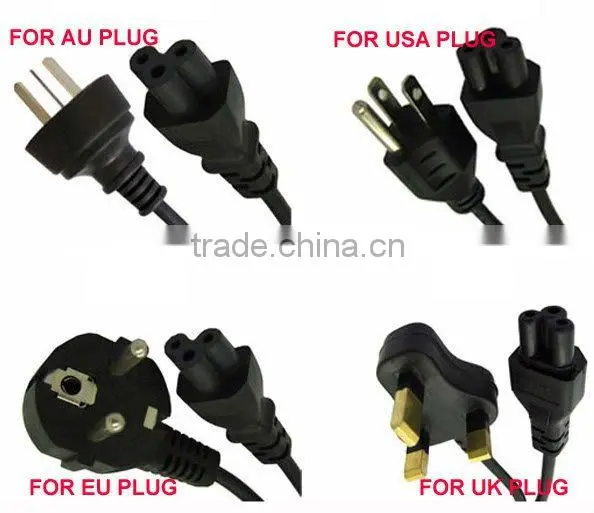

7.GB USA Europe Regulations United Kingdom Regulations Australia Regulations Korean regulatory sundial optional, etc. can be customized according to customer needs.
6.We offer:
1.Good quality: with professional and experienced engineers, strict with quality, low repair rate, strong production capacity.
2.Competitive price: We are factory ourselves, so that we can control the cost and to seek more profit for our customers.
3.Excellent service: online service for customers, good after-sales service: provide the replacement or free accessory if any problems within 1 year warranty
4.OEM orders and large wholesale, the cable length and plug are customizable.
7.GENERAL SPECIFICATIONS:
1. Operating Temperature: 0-40°C
2. Storage Temperature: -20-85°C
3. Temperature coefficient: +/-0.03%/ degree Celsius ( 0-40 degree Celsius)
4. Humidity: 5~95%RH
5. Withstanding Voltage: AC 3000V(Min)(between input and output)
6. Insulation Resistance DC 500V 100MΩ (min) (between input and output)
7. Efficiency: 88% MIN
8. Vibration: 10 to 500Hz, 2g 10mins/1cycle, period for 60mins
8. Terms of payments and MOQ
1.T/T (30% as deposit,70% before shipping)
2.Western Union
3.MOQ:100pcs
9.Test
Burn-in text
Power supply shall be burn-in for 4 hours under normal input and 80-100% rated load at 40°C±5°C
If you have interests in our products,please feel free to contact us,Our sales team can provide the information what you want to know,If we are not on line, please leave your name and your contact details,We will contact you ASAP.
