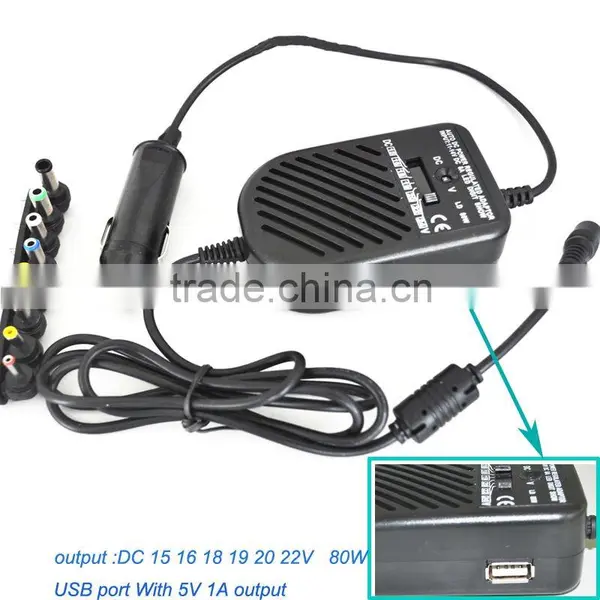

80w multi ac dc laptop car charger

Specifications

1.Input:DC 12-16V
2.Output:DC 15-24V
3.Warranty:12 months
4.Applicable for most branded notebooks
5.High reliability

                            80w multi ac dc laptop car charger









1.Specifications

Input Voltage Range	DC 12V-16V
Input Rated Current	10A
Input Min. Current	50mA
Power	80W
Efficiency	>88% (TYP)
Output Voltage	DC 15V, 16V, 18V, 19V, 20V, 22V, 24V (-0.2V/+0.8V no load)
Output Current	3.3A(22-24V), 4A(15-20V)
Output Short circuit Protection	Yes
Ripple &Noise	100mV
Line regulation, Load regulation	+/-5%, +/-5%





2. Packing &Delivery



• Fittings: 8 interchangeable dc pins and car cigarette lighter wire
• Packaging Quantity: 50pcs/carton
• Dimensions: 57*36.5*34cm
• G.W.: 13kg
• N.W.: 12kg
• Delivery Details: 7days after payment





3. Features









• 8 Tips:

• Tip A-6.3mm*3.0mm

• Tip B-6.0mm*1.0mm

• Tip C-5.5mm*2.5mm

• Tip D-5.5mm*2.1mm

• Tip E-5.5mm*1.7mm

• Tip F-4.8mm*1.7mm

• Tip G-4.0mm*1.7mm

• Tip H-3.5mm*1.35mm
