Drum Gear Coupling for Heavy Duty Industry Equipment

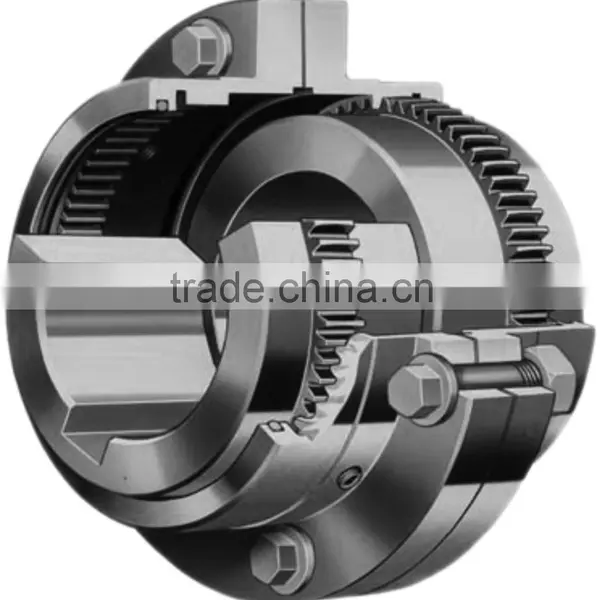

Product features of drum gear coupling:
1. High Transmission Efficiency Can Reach 99.7%
2. High Loading Capacity: With the same external dimension, the loading capacity is 15%~20% averagely higher than that of straight-tooth coupling
3. Large Angular Compensation: The maximum allowable angular misalignment is 1.5°, 50% higher than that of straight-tooth coupling
4. More Scientific Gear Tooth Design: It avoids local stress concentration caused by straight tooth edge extrusion, and tooth surface friction is eased at the same time.

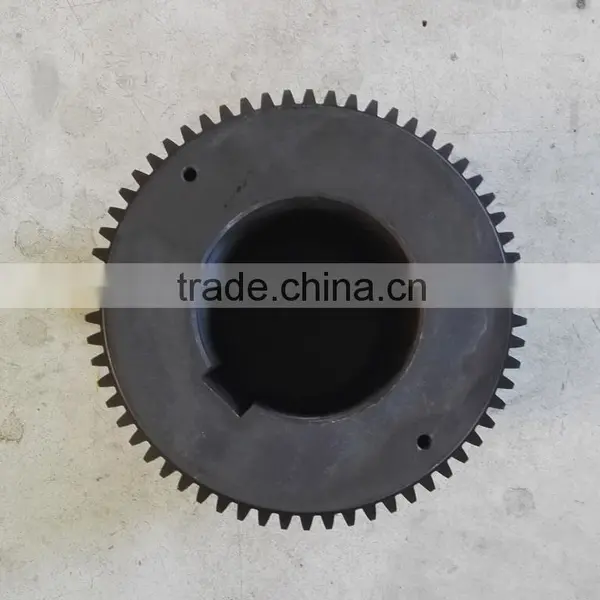

5. Gear tooth of external gear sleeve is horn-shaped, which makes it easy to install and dismantle.
6. Long Service Life: The internal and external gear teeth are made of high strength alloy steel. After quenched-tempered heat treatment, gear teeth rigidity and wear resistance are improved.
Product models of drum gear coupling:

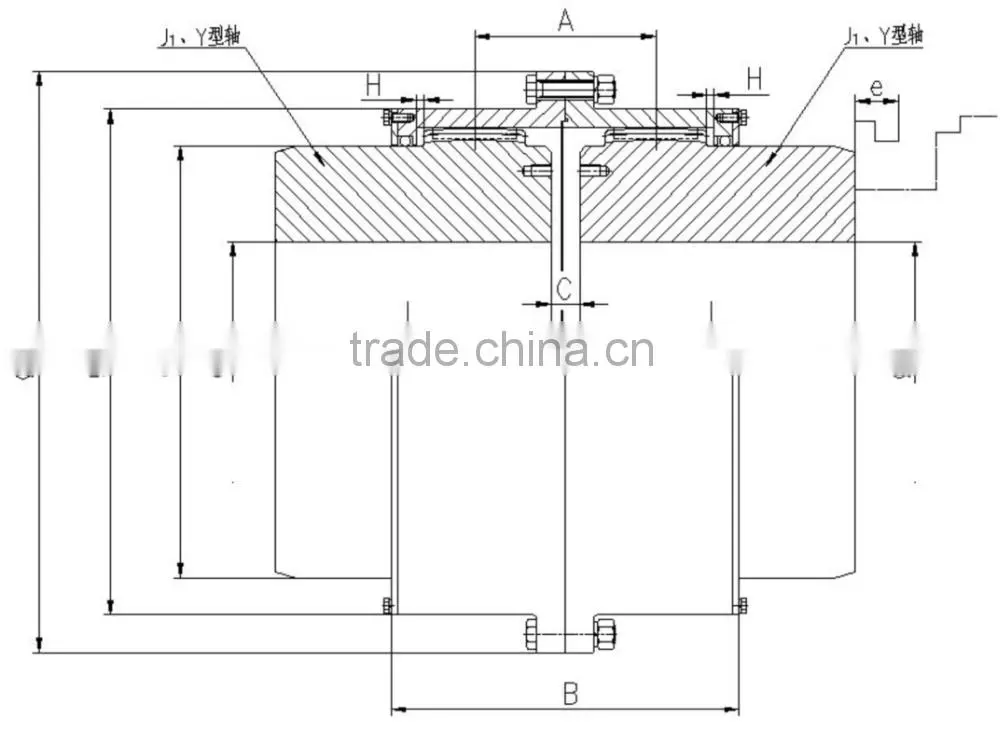

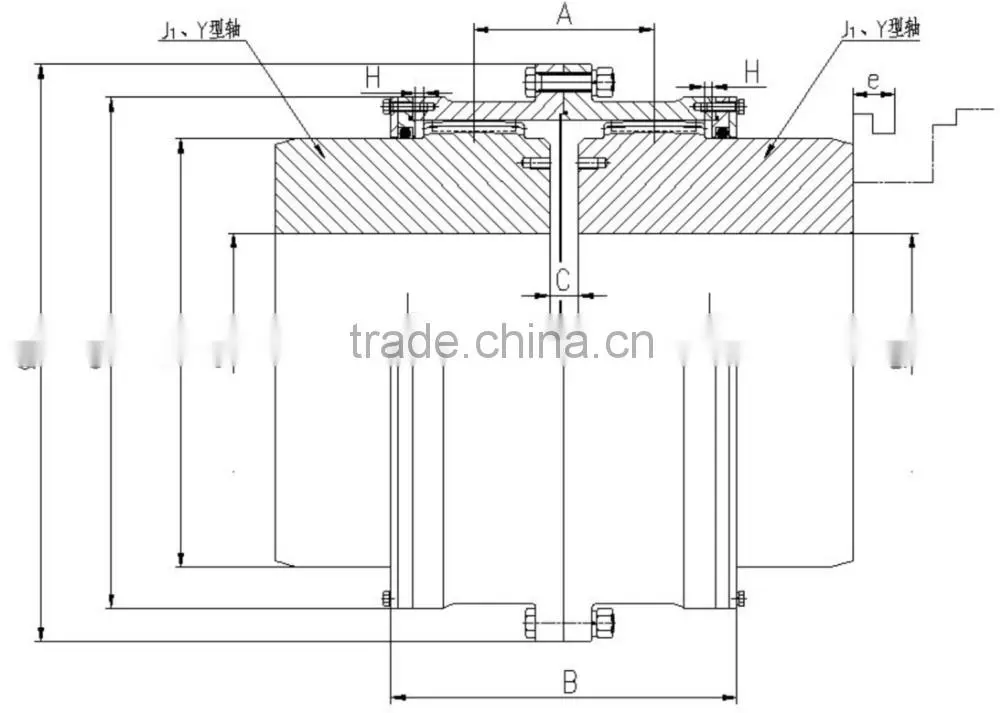

GIICL1——GIICL13 GIICL14——GIICL20
Customize Your Product
|
1. Application to: e.g. conveyor, crusher, compressor, etc. 2. Driving end related parameters: Motor power(KW): Motor rotation speed(rpm): Reducer speed ratio: |
|
For cylindrical shaft, please provide: Shaft end gap length B(mm): Center height H(mm): High speed shaft: Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ; Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ; Low speed shaft: Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ; Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ; | |
Notice:
1. If you do not provide B or H, it is defaulted to enough space for installation based on parameters in catalog.
2. If your requirement is different from this drawing, please provide your technical drawing.
Item |
Content |
Package |
Standard export wooden package with fumigation or client required package. |
Delivery |
About 30 to 45 days after receiving down payment. The accurate time is determined by the model of product. |
Payment term |
T/T |
Customer service |
The time of warranty is one year. During the time of warranty, if the products damage, we would give response during 48 hours and send technician to handle. |
Beijing Baska Guanhua Technology Co., Ltd was established in Beijing on 28th March, 2013. It is a wholly-owned subsidiary of Tonghua Mining Machinery Co., Ltd-a professional mining machinery supplier in China. Tonghua was founded in 1998 and is located in Datong, Shanxi province, which is a professional manufacturer engaged in the research, development, production, sale and service of belt conveyor, scraper conveyor, grid couplings, drum gear coupling, backstop and coal washing equipment, etc. It occupies an area of 161,334m2 and has more than 2,200 employees. We have excellent teams who focus on product design & development, quality control & inspection and company running. We also have a large-scale production capacity. BASKA has gained both ISO 9001 International Quality Certificate and ISO 14001 International Environmental Certificate and had established a comprehensive modern enterprise management mode. For a dozen years we have consistently followed the fundamental principles of survival starts from quality, benefits derive from management and development comes from trust.
