Home Security P2P AHD and Analog and IP Hybrid 16CH AHD DVR
Feature:

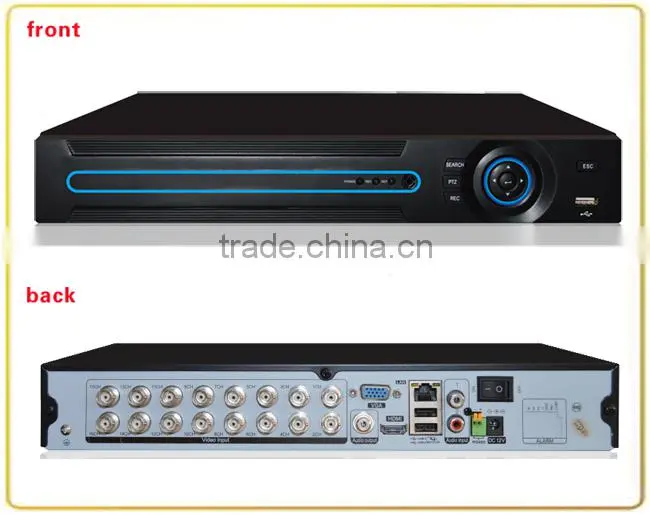

What is Appearance of ISEC AHD DVR?
What is Menu Interface Of ISEC AHD DVR?
Remote View Via Phone and PC of AHD DVR:
What is Specification of ISEC AHD DVR?
| 16CH AHD DVR | ||
| Model No. | IC-AVR1316A | |
| Main Processor | Hi3531 | |
| Analog video input | 16ch BNC Port | |
| Audio input | 2ch RCA Port | |
| Video & audio output | ||
| HDMI output | 800x600,1024x768,1280x1024,1440x900,720P,1080P | |
| CVBS output | NO | |
| VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P | |
| Audio output | 1ch RCA Port | |
| Video & audio code and decode parameters | ||
| Multi-mode switch | AHD: 16CH*720P(compatible with 960H analog) AHD+IP: 8CH*720P+8CH*IPC1080P; 16CH*720P+4CH*IPC1080P IP: 16CH*1080P; 8CH*3MP; 4CH*5MP |
|
| Video compress standard | H.264 | |
| Video code resolution | CIF/D1/960H/720P/960P/1080P/3M/5M | |
| Playback resolution | 720P 16CH 240/288 FPS+1080P 100/120FPS ; 720P 8CH 200/240FPS ;(It is defined with the mode switch) | |
| Video frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S | |
| Video code rate | 256kps/384Kbps/512Kbps/640kbps/768Kbps/1M/1.5M/2M/2.5M/3M/4M/5M/6M/8M | |
| Code stream mode | combine streams/ video stream | |
| Audio compress standard | ADPCM | |
| Audio code rate | 16kpbs | |
| Dual-stream | YES | |
| Synchronously playback channels | 1/4/9/16CH | |
| Hard driver | ||
| Mode | 2*SATA | |
| HDD capacity | each port support max 4TB HDD | |
| External port | ||
| Voice intercom | 1ch RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) | |
| Internet port | 1ch RJ45 10M / 100M adaptive Ethernet port | |
| Serial port | 1ch RS485 | |
| USB port | 2*USB2.0 | |
| Alarm input | no | |
| Alarm output | no | |
| Other | ||
| Power supply | DC12V | |
| Power consumtion (without HDD) | ≤24W | |
| Work temperature | -10℃--+55℃ | |
| Work humidity | 10%--90% | |
| Case | 1U | |
| Size(W*L*H(cm)) | 335*255*50mm | |
| Net weight / Gross weight (without HDD) | 1.52 / 2.45 kg | |
| Color box size | 39*30*11cm | |
| Packing(pcs/carton) | 5 | |
| Carton size (L*W*H(cm)) | 57*40.7*32.6cm | |
| Gross weight(kg) | 13.1kg | |
How to connect ISEC AHD Camera AHD DVR?
Where does ISEC AHD Camera AHD DVR use?
Packaging & Shipping:
Why Choose Us?
♦ We are Alibaba Assessed 6 years Gold Supplier.
♦ We are a factory manufacturing Cctv Cameras, Withmore than 9 Years experience.
♦ Strictly Quality Control: More than 12 hours aging before sending,Ce,Fcc,Rohs.
♦ Competitive Price: Factory price (EXW), Big discount for bulk order.
♦ Technical support: Provide all-around technical support and counselling all the time.
Our Security Equipment:
Customers Feedback:
Factory View:
Our Certifications:
Factory Activities:
FAQ:
Q1: What is the Warranty for the camera?
A1: For the cameras,we have 2 years warranty.If any quality problems on our side occured in this period ,free repair or replace units are available.
Q2: What is the estimate delivery time?
A2: Factory usually need 3-4 working days to prepare sample order, around 5-7 working days for bulk order .
Q3: What is your payment term?
A3: We accept T/T, Western Union, Paypal, Escrow, L/C at present .
Q4: Do you offer Oem service?
A4: Oem service is available in our factory, Could you tell us which is suitable for you please: special design,customize specification, logo silk print or customize retail boxes?
