Help CenterKLFC-026 ULPA Filter
Related Products
Specifications
1.Filter 0.3um micro2.Large filtering surface
3.long working life,large airflow,
4.easy installation

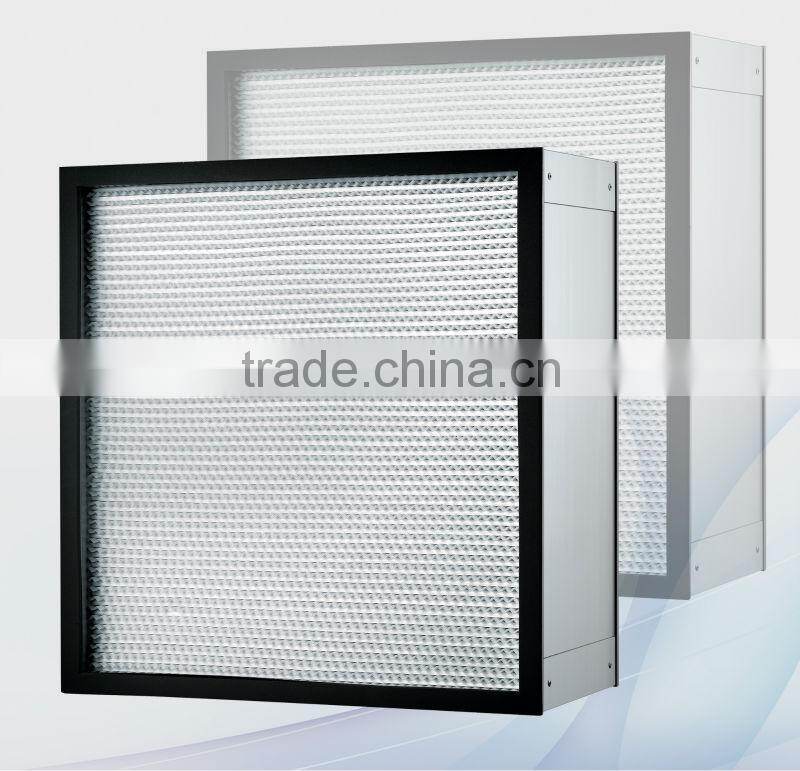

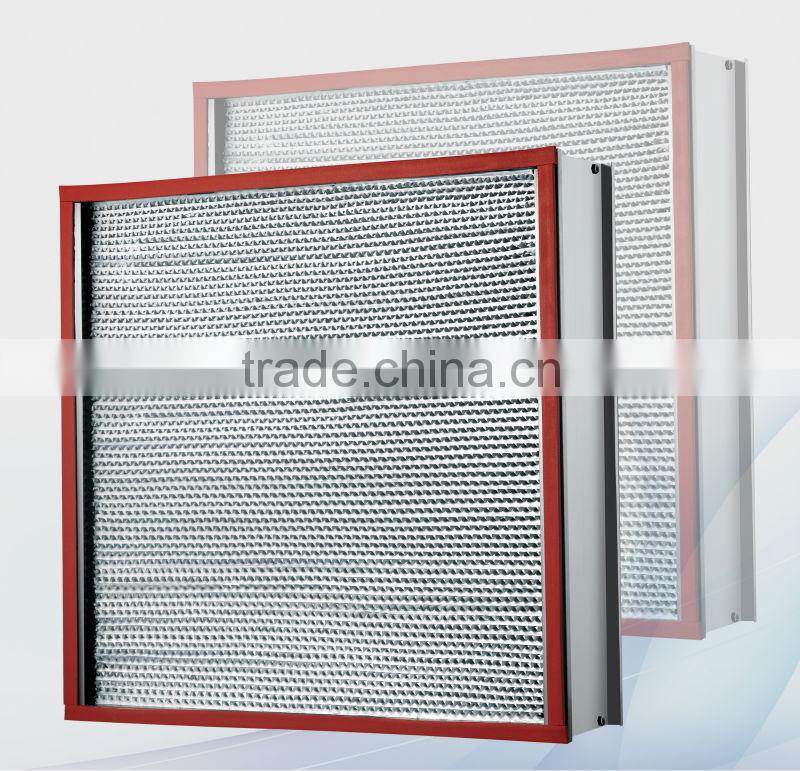

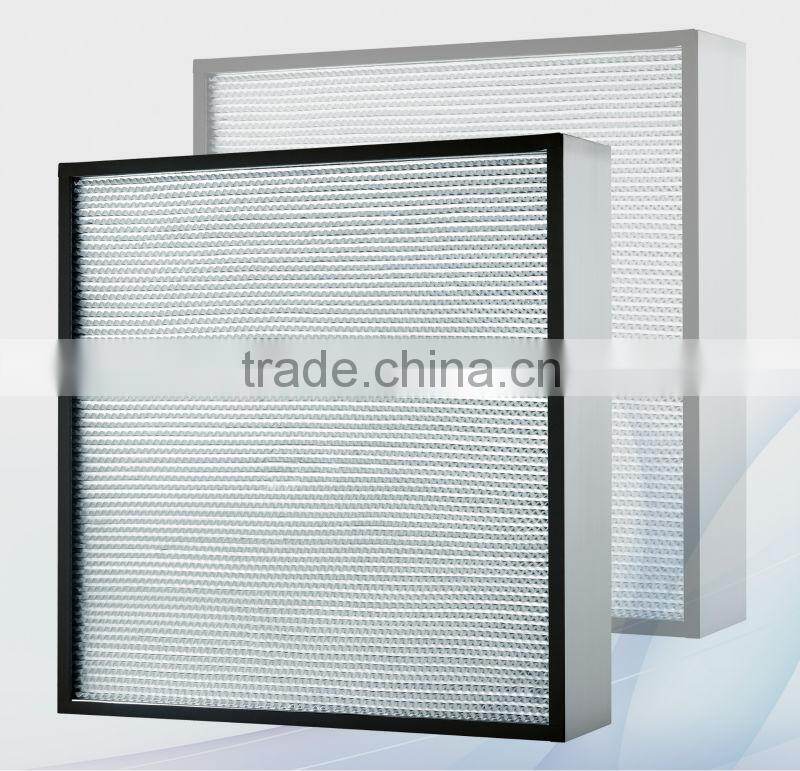

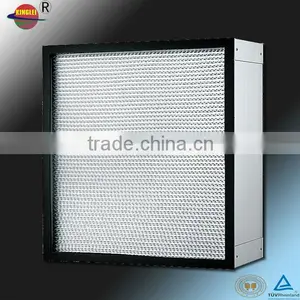

KLFC-026 ULPA filter
Filter 0.3um micro,widely used in the teminal filter.
Large filtering surface,long working life,large airflow,easy installation
Common Applications: Filtering 0.3 microns or less suspended particles in the air, it is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.
Features: Adopting the superfine fiberglass filter paper as the media, separated by hot melt adhesive and fiberglass thread, sealed by the new polyurethane sealant, aluminum frame with combined spray protection network both in the outlet and inlet side to protect filter paper. Low loss, high efficiency, light weight, it is tested precisely one by one.
Type |
Dimensions W*H*D (mm) |
Filter Area (m2) |
Resistance at the speed of 0.45m/s |
Recommended Airflow (m3/h) |
||
H13 |
H14 |
H15 |
||||
KLFC-025 |
610*610*69 |
7.0 |
145 |
160 |
180 |
600-1000 |
305*305*69 |
2.5 |
120 |
135 |
160 |
100-250 |
|
305*610*69 |
5.0 |
120 |
135 |
160 |
300-500 |
|
610*610*69 |
10.2 |
120 |
135 |
160 |
600-1000 |
|
305*610*90 |
6.5 |
85 |
100 |
120 |
300-500 |
|
610*610*90 |
13.1 |
85 |
100 |
120 |
600-1000 |
|
915*610*90 |
19.7 |
85 |
100 |
120 |
900-1500 |
|
1220*610*90 |
26.5 |
85 |
100 |
120 |
1200-2000 |
|
