ISO 18000-6C 860~960MHZ U code7 chip long range RFID hang tag jewelry security tag
1. Product Details of rfid jewelry tag
RF Protocol | ISO/IEC 18000-6C |
EPC Memory Size | 96-480 Bits |
User Memory | 512 bits |
Unique TID | 64 bits |
Access Password | 32 Bits |
Kill Password | 32 Bits |
Programming Cycles | 100,000 Write Cycles |
Worldwide Operating Frequencies | 840–960 MHz (US, Europe, Asia, & Japan) |
Integrated Circuit | Alien Higgs-3 |
Operating Limits | -40C to +70C / -40F to +158F |
Recommended Storage Conditions |
|
Storage Limits |
|
Inlay Size | 19 x 13 mm (.748 x .512 inches) |
Inlay Adhesive | General Purpose Permanent |
Overlay | TT Printable White Film Overlay |
Shelf Life | 2 Years at +77F (+25C) @ 40% RH |
Drop Resistance | Per ASTM D5276 |
RoHs | 2002/95/EC Compliant |

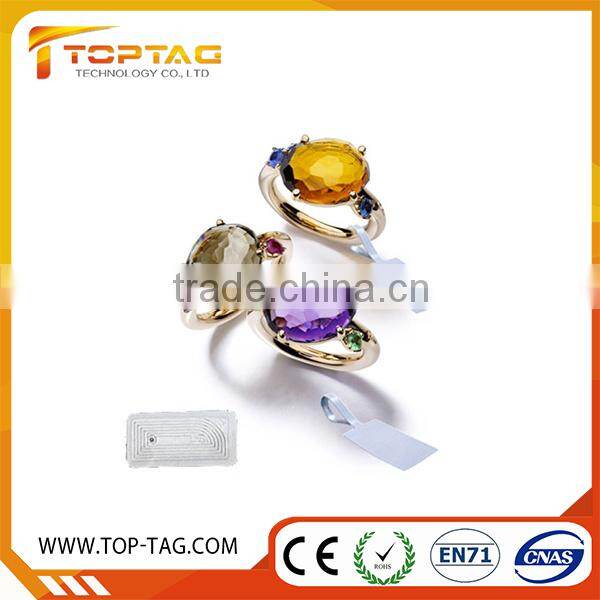

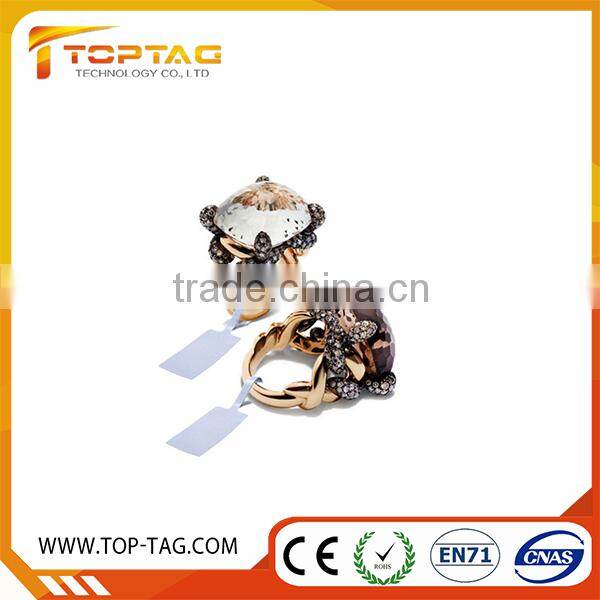

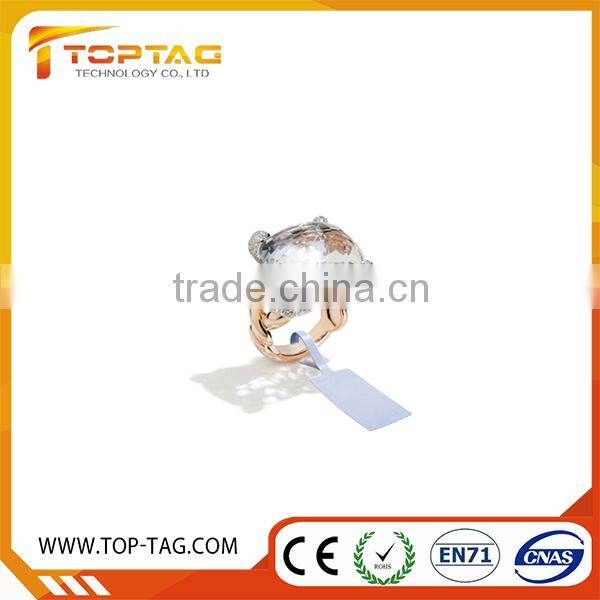

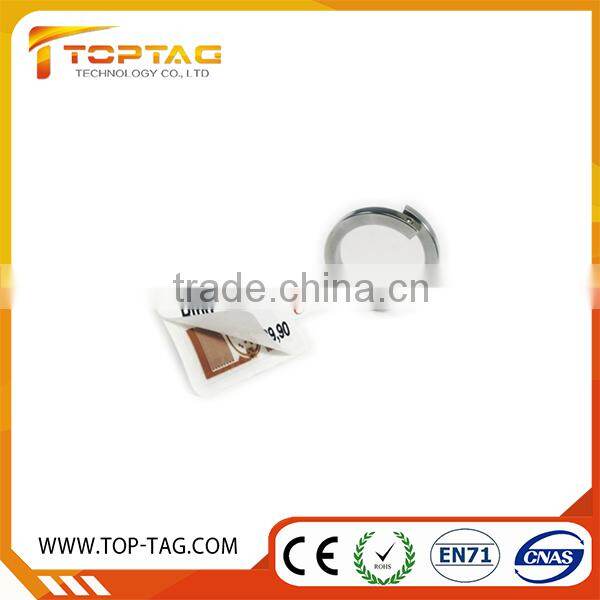

2. Product Pictures of rfid jewelry tag
3. Features:
- Ultra compact size
- Near-field coupling
- Capable of converting to far field by coupling to conductive packaging
- Exceptional performance
- EPC Gen 2 (v1.2.0) compliant
- ISO/IEC 18000-6C compliant
- Worldwide RFID UHF operation (840-960MHz)
- Higgs-3 IC with 800-bits of Nonvolatile Memory
- 32-bit TID
- 64-bit Unique TID
- 96-bit EPC Memory, extensible to 480-bits
- 512-bit User Memory
- 32-bit Access password
- 32-bit Kill password
- Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication)
- User Memory can be Block Perma-Locked
- User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password
- Supports all Mandatory and Optional Gen 2 commands including item level commands
- Custom commands for high speed programming
- Available in high-yield, high-capacity dry/wet inlay rolls for high volume converting processes
♦ Professional experience
Established in 2008, our two main offices are located in Hong Kong and Shenzhen, China.
We are a passionate and creative group with 8 years experience in RFID Tags/ Smart Card field.
Great reputation of our various cooperative partners all over the world.
Gold supplier in Alibaba for over 3 years.
♦ Quality service
An integrated promotion solution.
Free samples, free design.
The best price & best service.
Quality control of the whole production.
Control the delivery time of the products.
Good after-sale service.
Exellent technics and craftwork, strict QC system.
Provide technical consulting service and best customer service.
♦ Cases
Shenzhen Sony NFC tags
Indonisea bus card, Iran bus card
Oxford Library RFID tags
RFID exhibition tickets, etc..
Q-1 How to start my order and how to process my order?
A:1) Please e-mail us your inquiries, or chat with us on trade manager
2) Price will be sent to you based on your request
3) After confirmation, Proforma Invoice will be sent to you
4) A photo of the sample will be sent to you for your confirmation before mass production
5) Products will be delivered after you finish the rest payment
Q-2 Would you charge the sample fee? Mailing fee?
A:If you choose the quantity of samples to a certain extent, we will make reasonable decisions.
Q-3 How can we get a quotation?
A:We could give a accurated price when you confirm the Size, Colour, Material, Quantity and the art work.
Q-4 Could I get the free samples for testing?
A:Yes, we could provide free samples for your testing.
Q-5 Packing
A:Standard export packing (OPP bag inside and export carton outside). Or according to your requirements.
Q-6 Sales support
A:Our products have been stirctly tested by QC before delivery.
Taking photos of products before delivery.
Q-7 How many days can I get my products?
A:Normally within one week, it depends on which kind of the delivery express services you choose.
Following is the normal shipping time for your reference.
DHL: 3-5days
UPS: 4-5days
FedEx: 6-7days
TNT: 6-7days
By sea: 25-35days
Q-8 How much is the shipping cost to my country?
A:The freight charge depends on your location, the dimension and the weight of the package.
Q-9 What is the minimum order?
A:Different products have different MOQ.Welcome to contact us before ordering.
