3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

Foshan Unipower Electronic Co., Ltd.
3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS thumbnail-1
3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS photo-1
Negotiable MOQ: 30 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SVC
Model Number:
PT-3KL
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Sanshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SVC
Model Number PT-3KL
Phase Single Phase
Protection Short Circuit
Weight 16kgs
Output Voltage 110V:110±2%VAC/220V:220±2%VAC
Type On-line
Application Other, PC, Work station, Small communication equipment.

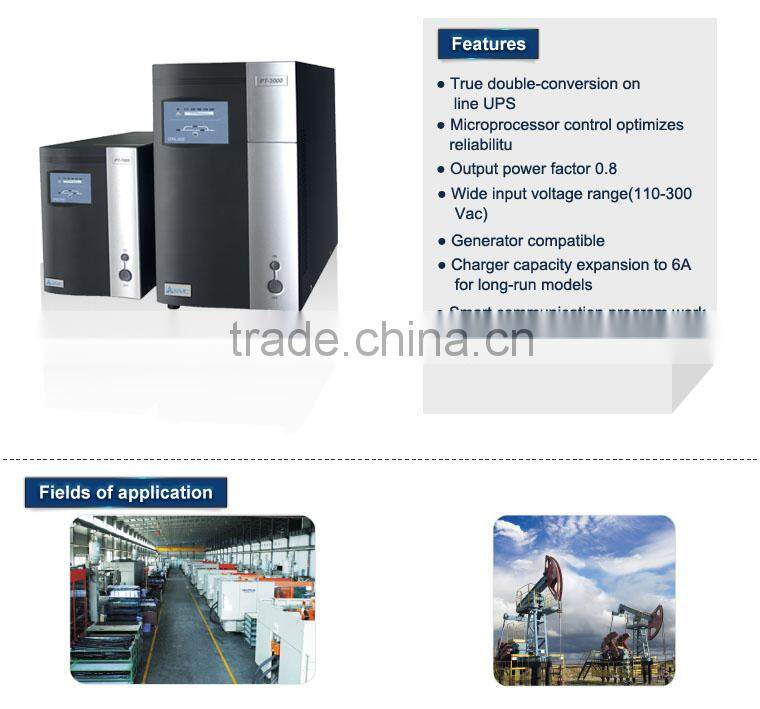

3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS



 3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS



Product Description



 PT series online UPS, whose capacity ranges from 1KVA to 20KVA, provides load with better power environment, compared with interactive or offline UPS. No matter take regulated output range, frequency range, input noise filtering or zero transfer time from AC mode to battery mode into consideration, online UPS is always the best choise.

3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS



3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

ModelPT-1KSPT-1KLPT-2KSPT-2KLPT-3KSPT-3KL
Rated power1KVA2KVA3KVA
INPUT
Voltage110V:80~138VAC/220V:110~300VAC
Frequency110V:46~54Hz or 56~64Hz/220V:40~60Hz/Adjustable by software
OUTPUT
Voltage110V:110±2%VAC/220V:220±2%VAC
Frequency46~54Hz/Same as AC(AC mode)
Wave form110V: 50 or 60±0.2Hz(DC mode)/220V:50±0.2Hz(DC mode)
BATTERY
QTY. & capacity of battery12V/7.5AH*3pcs—————2V/7.5AH*8pcs—————12V/7.5AH*8pcs—————
Nominal DC input voltage—————36VDC—————96VDC—————96VDC
Transfer time0 ms
Overload capability110%~150% for 30% seconds then transfer to bypass output, 150% above for 300 milliseconds.
ENVIRONMENT
Environment of performanceTemperature 0℃~40℃, Humidity 20%~90%
PHYSITAL
(kg) / Net weight (kg)13.07.532153316
(mm) / Unit dimention (mm)220(L)*145(W)*405(H)mm195(L)*330(W)*455(H)mm
MANAGEMENT
Interface110V:USB+RS232 220V:RJ45/11+RS232, Intelling slot selectable.





3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)
In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.


3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS



Certifications

3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

Company Information

3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

Foshan Unipower Electronic Co., Ltd is a manufacturer of high quality Uninterruptible Power Systems (UPS) who has been prospering for over 10 years. Since 2002, we have been pursuing efficient production and devoted ourselves to research and development. Now Unipower is no longer a small manufacturer who only specialized in offline UPS but an outstanding enterprise of manufacturing diversified power supplies like small and medium offline UPS, big and medium online UPS, solar inverter, automatic voltage regulator (AVR), etc. Providing energy-saving and environment-friendly products will be our development direction.



With more than 400 professional staff, our factory covers an area of nearly 16,000 square meters, which is equipped with 3 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.



Since we are honest and responsible, our current clientele give us abundant praise and provide repeat business. Welcome everyone from all areas join us. Not only cooperation but also your opinion, we need you!

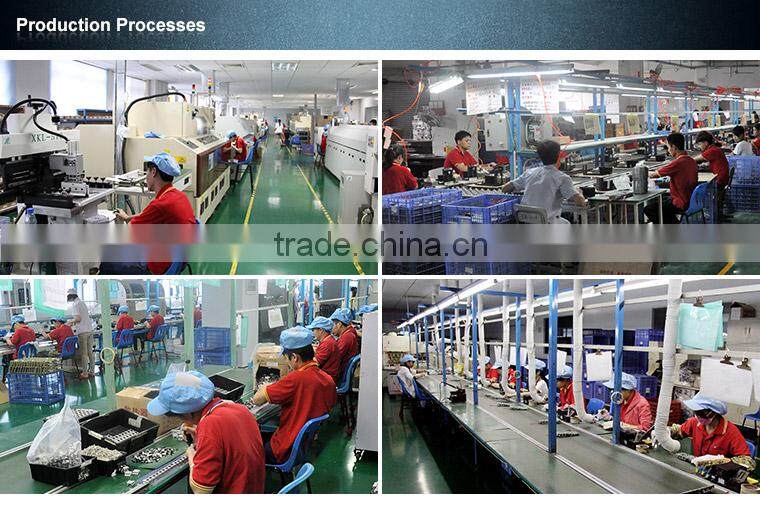

Production Flow

3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

Packaging & Shipping

3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

Trade Shows

  3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS
