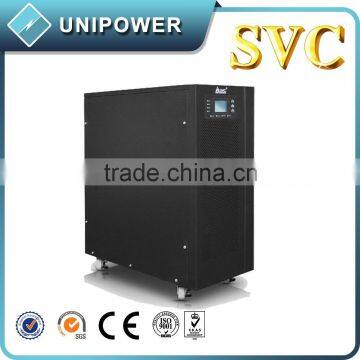

10KVA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

FOB Price

Negotiable / Unit

30 Units(Min.Order)

Supply Ability 100000 Unit / Units per Month
Port Sanshan
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SVC
Model Number	PT-10KS	Phase	Single Phase
Protection	Short Circuit	Weight	67.5kgs
Output Voltage	110V:110±2%VAC/220V:220±2%VAC	Type	On-line
Application	Other, PC, Work station, Small communication equipment.

Product Description

10KVA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

Model	PT-6KS	PT-6KL	PT-10KS	PT-10KL	PT-3C10KL	PT-3C15KL	PT-3C20KL
Redundancy	Parallelled & redundancy
Rated power	6KVA		10KVA			15KVA	20KVA
INPUT
Wires	Single phase dual wires +earth wire				Three phases four wires + earth wire
Voltage	110V:80~138VAC/220V:110~300VAC
Frequency	110V:46~54Hz or 56~64Hz/220V:40~60Hz/Adjustable by software
OUTPUT
Voltage	110V:110±2%VAC/220V:220±2%VAC
Frequency	Automatic (AC mode)
Current crest factor	3:01
Wave form	Sine wave
BATTERY
QTY. & capacity of battery	12V/7.5AH*16pcs	—————	12V/7.5AH*16pcs	—————	12V/7.5AH*8pcs	—————	—————
Nominal DC input voltage	—————	192VDC	—————	192VDC
Transfer time	0 ms
Overload capability	105~130% for 10 minures, 130% above for 1 minute
ENVIRONMENT
Environment of performance	Temperature 0℃~40℃, Humidity 20%~90%
PHYSITAL
(kg) / Net weight (kg)	57	18	67.5	20	27	35	35
(mm) / Unit dimention (mm)	500248616	500240460	500248616	500240460	500248616	500248616	500248616
MANAGEMENT
Interface	RS232/Intelling slot selectable.

1. Wide range of input voltage

The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)

In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).

Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function

In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection

In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection

When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch

This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging

There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output

Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
