5KVA CPU LED Wide Input Range Full Protection With Delay Function AVR Stabilizer

5KVA CPU LED Wide Input Range Full Protection With Delay Function AVR Stabilizer thumbnail-3

5KVA CPU LED Wide Input Range Full Protection With Delay Function AVR Stabilizer photo-1

5KVA CPU LED Wide Input Range Full Protection With Delay Function AVR Stabilizer photo-2

5KVA CPU LED Wide Input Range Full Protection With Delay Function AVR Stabilizer photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SVC

Model Number:

AVR-5008A

Contact Supplier Request Quote Chat Now

Foshan Unipower Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Sanshan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SVC

Model Number AVR-5008A

Usage SVC

Phase Single Phase

Current Type AC

5KVA CPU LED Wide Input Range Full Protection with Delay Function AVR Stabilizer

Product introduction

This series is single phase high precision automatic voltage regulator(AVR) with over & low voltage protection,

long or short delay function and fault protection. LED digital displays of input and output voltage indicate

accurate voltage for safer and better performance.

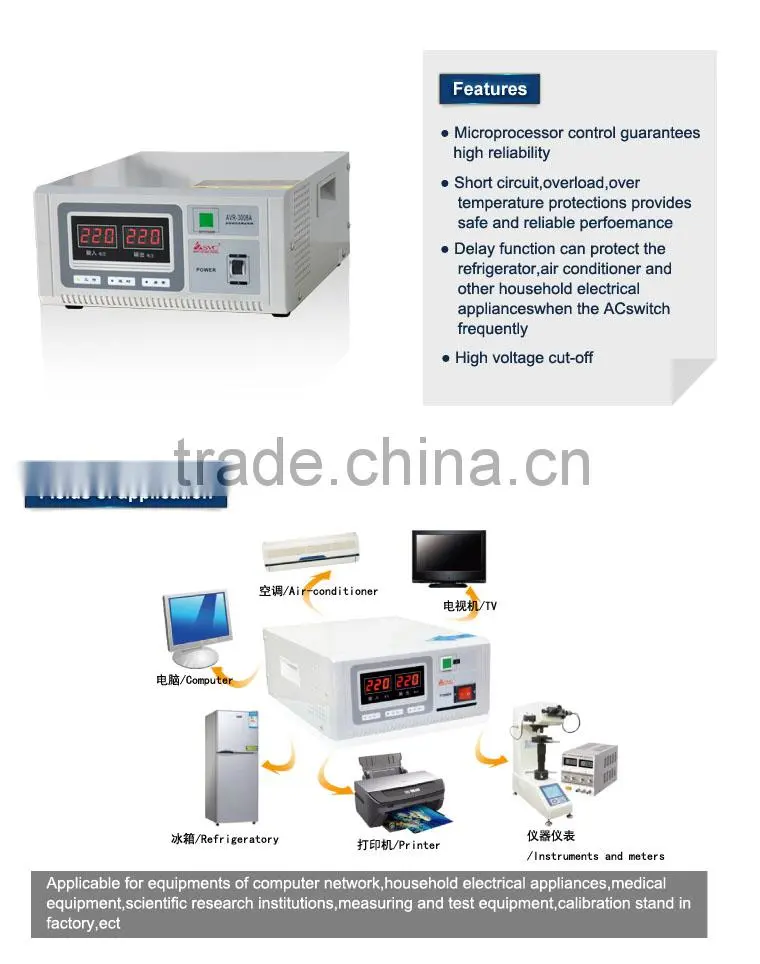

Field of application

Applicable for equipments of computer network, household electrical applicances, medical equipment,

scientific research institutions, measuring and test equipment, calibration stand in factory, etc.

Product Description

Model	AVR-1008A	AVR-2008A	AVR-3008A	AVR5008A
Rated power	1000VA	2000VA	3000VA	5000VA
Display	LED or LCD, depends on user's choice
TECHNOLOGY
Technology	CPU Based Digital Circuit + Transformer + Ralays
Efficiency	98%
Phase	Single
INPUT
Input voltage range & frequency	140~280VAC/Same as AC
OUTPUT
Output voltage range	220VAC±10%
DISPLAY
LED digital display status	Input voltage, output voltage
LED display status	Normal, Display, Fault
PROTECTION
Protections	Over & low voltage, overload, high temperature, short circuit
ENVIRONMENT
Environment of performance	Temperature 0℃~40℃, Humidity 20%~90%
Noise level	Less than 40dB
PHYSITAL
(kg) / Net weight (kg)	4.5	6.0	10	13.0
(mm) / Unit dimention (mm)	251255120		315255120

1. Wide range of input voltage

The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)

In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).

Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function

In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection

In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection

When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch

This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging

There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output

Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
