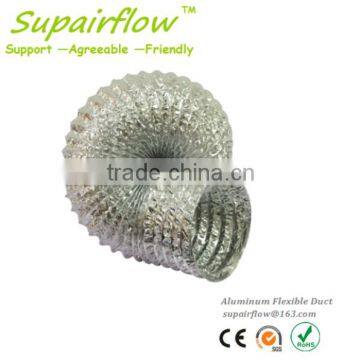

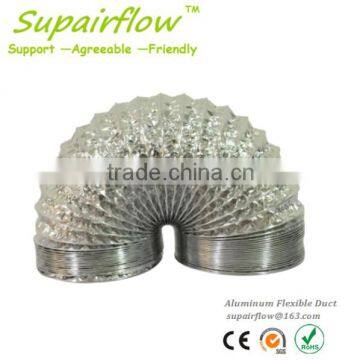

8 inch aluminum flexible ducting
1.Product Description:
Supairflow fire rated 8 inch aluminum flexible ducting is manufactured from aluminum foils (metallized Mylar),
laminated incorrporating totally encapsulated helically spring wire.which provides outstanding
resistance and durability. Suitable for bathrooms ,toilets,laundries, range hood
and most other ventilation uses.
2. Product composition:
Type 1: Single layer aluminum foils type ( Item no.: Supair-001)
Made up of 1 layer Aluminum foils/ 1 layer Polyester with steel wire
Type 2: Double layer aluminum foils type(Item no.: Supair-002)
Made up of 1 layer aluminum foils/1 layer Polyester/1 layer aluminum foils with steel wire
3.Technical parameter:
Air Velocity |
30 m/s (max) |
Operating pressure |
2500 Pa (max) |
Temperature range |
-30℃ to 140 ℃ |
Fire resistance |
YES,Difficult to ignite |
Thickness of 8 inch aluminum flexible ducting |
27 micron (Supair-001 type), 32 micron(Supair-002 type) |
4.Product Size(Diameter) and Length:
Item: 8 inch aluminum flexible ducting ( Supair-001 & Supair-002 Type)
Size |
4” |
5” |
6” |
8” |
10” |
12” |
12.5” |
14” |
Diameter |
102mm |
127mm |
152mm |
203mm |
254mm |
305mm |
315mm |
356mm |
Length |
3m 5m 6m 10m 25feet available |
|||||||
Packaging |
1 piece per carton box with plastic bag inside |
|||||||
5.Delivery and Payment terms:
Delivery Time (Lead time) |
10 - 20 days after order confirmed |
Payment Terms |
By T/T,Western Union,MoneyGram |
Port of Loading |
Shenzhen port, Shanghai port,Ningbo port |
6.How to get a sample ?
Get a sample: we provide free sample service,just need the consumer bear freight cost by
Express.(we also can delivery sample via the consumer’s Express account.)
Euphorya Group was born in Guangdong in 2006,which is professional exporter in HVAC industry
and packaging industry.Except our own build up factory,we are also the agent of many
Chinese factories. so the price is very competitive.With years experience,now
Euphorya can provide various of products.Such as flexible duct series,
air outlet,fastener(duct clamp/hose clamp),all kinds of bags (HDPE/LDPE/PP/PVC/OPP),
corrugated box(paper bag/carton box/corrugated box) etc.
Euphorya comes from the word " euphoria ". The man who create it hopes the staff feel
enjoyable when working for Euphorya group.Based on our good enterprise culture and
fine emolument system,we retain many of our founding staff members still to this day.
We have enjoyed a high reputation among our customers owing to the high quality,
competitive prices, prompt delivery and excellent service. Our products are now
exported to Australia,Southeast Asia,the Middle East,US, Europe, North
America, South America, South Africa etc.
Welcome to cooperate with Euphorya Group.
