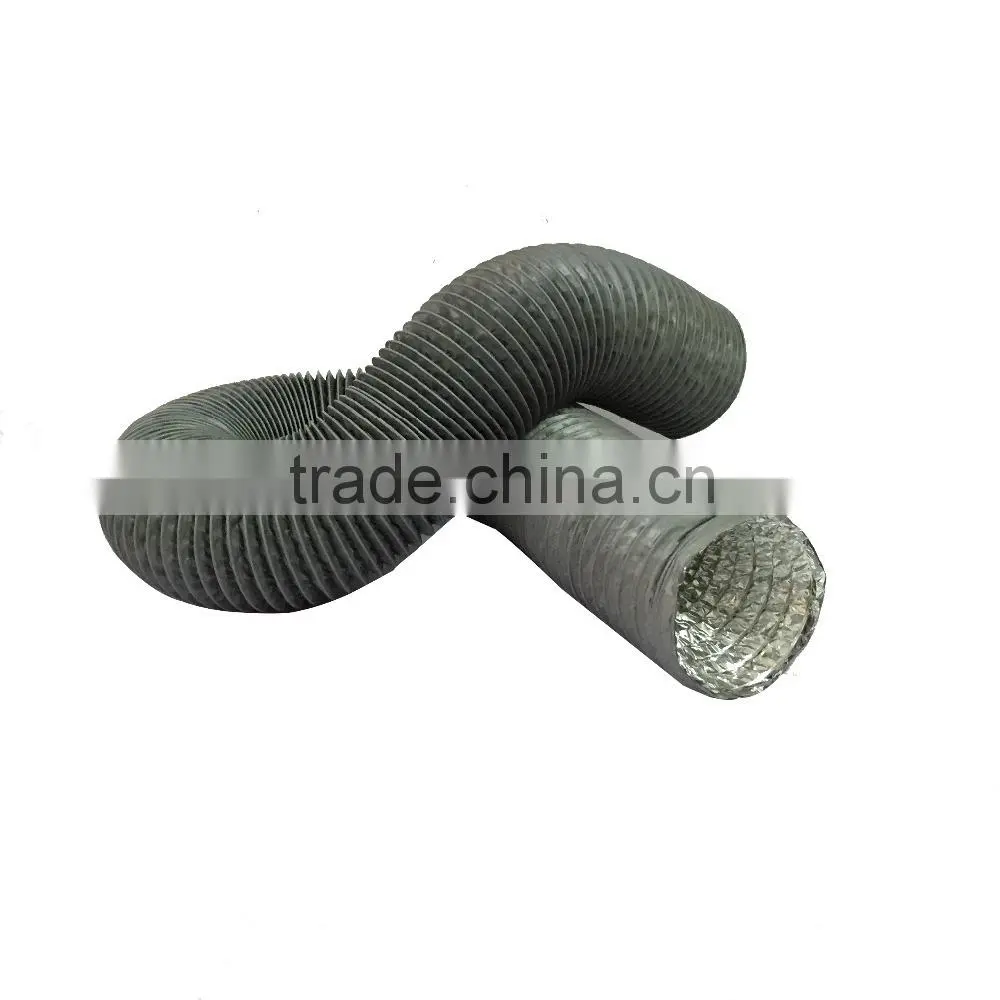

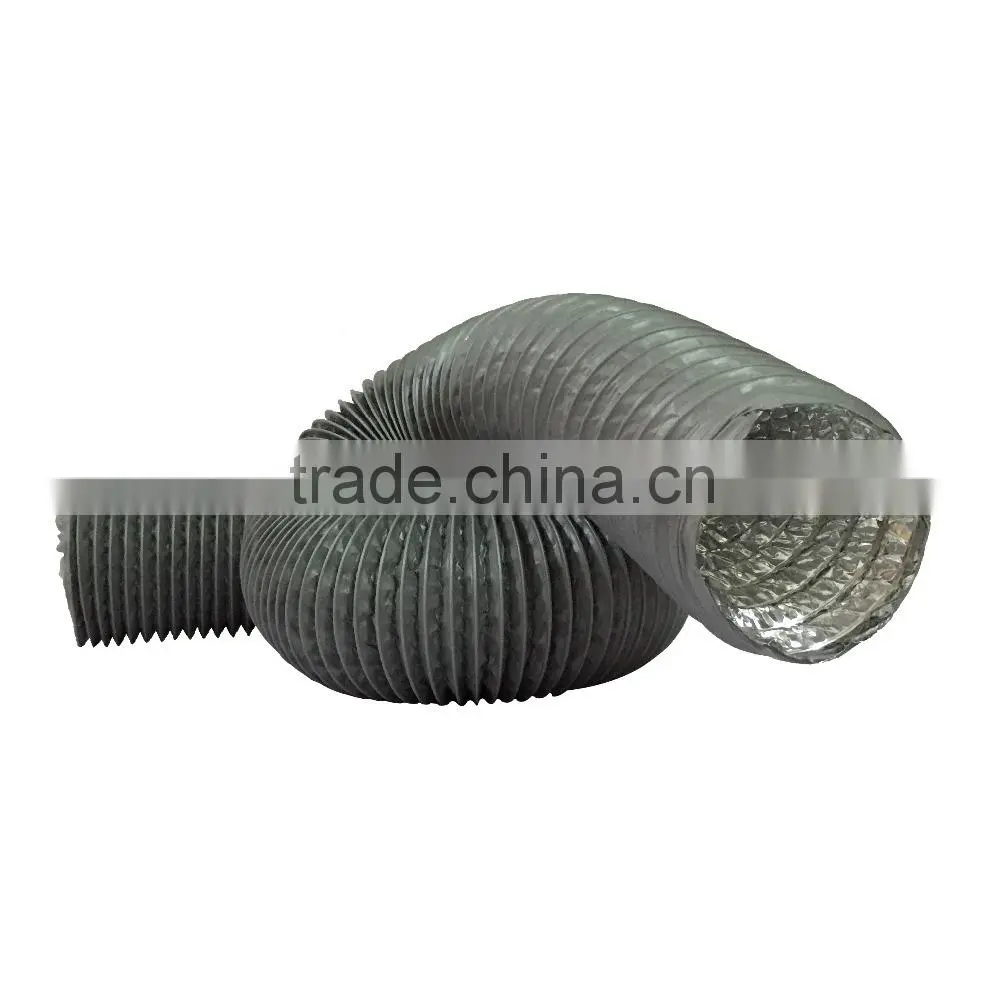

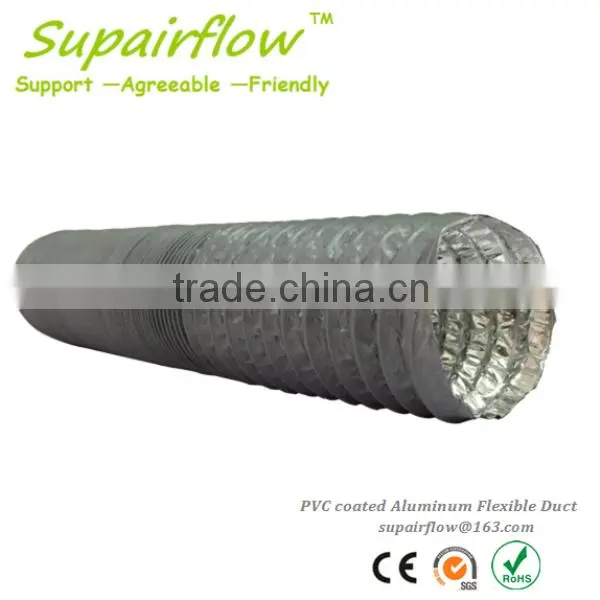

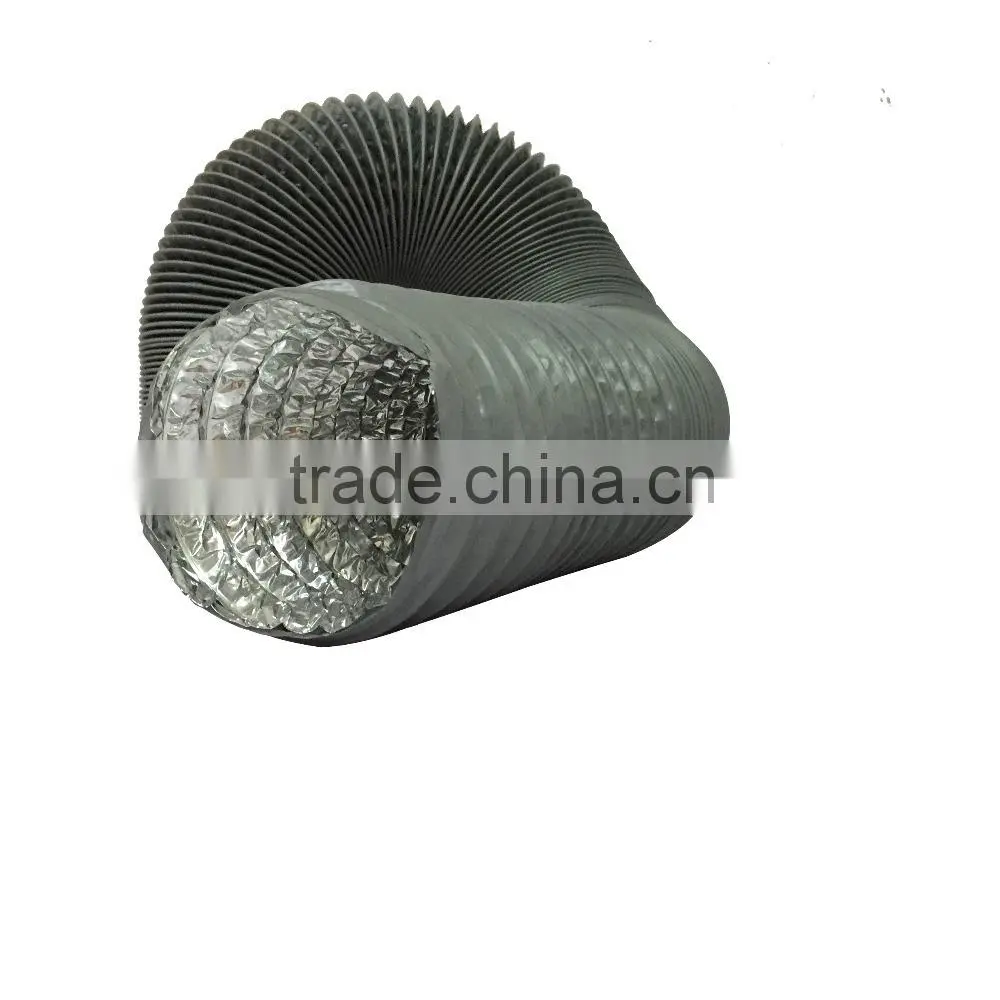

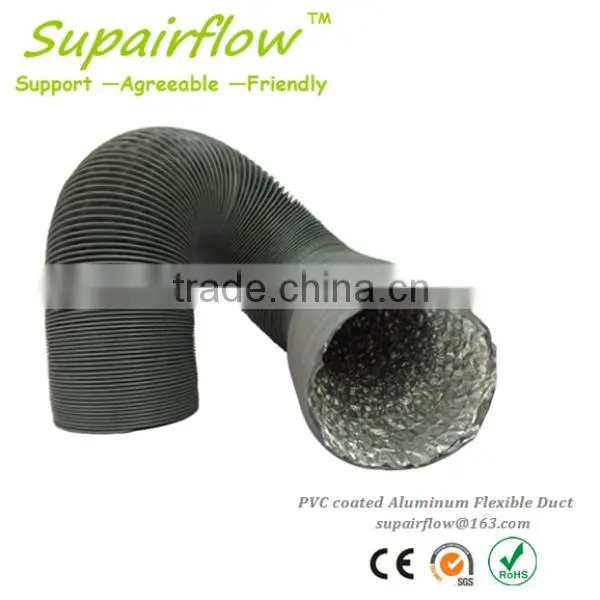

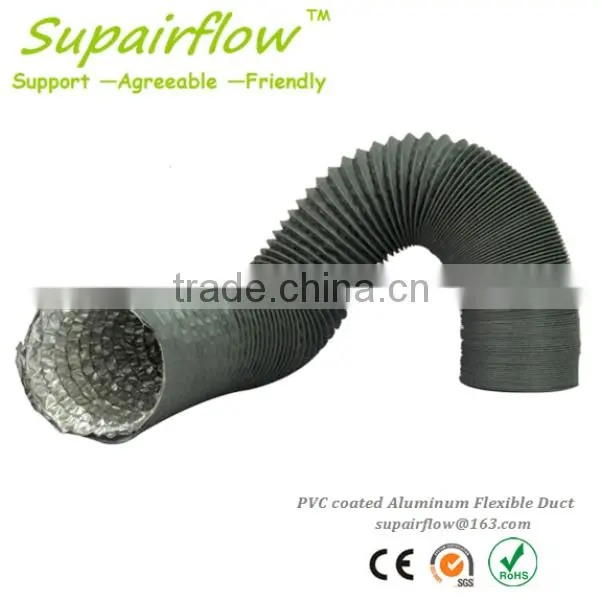

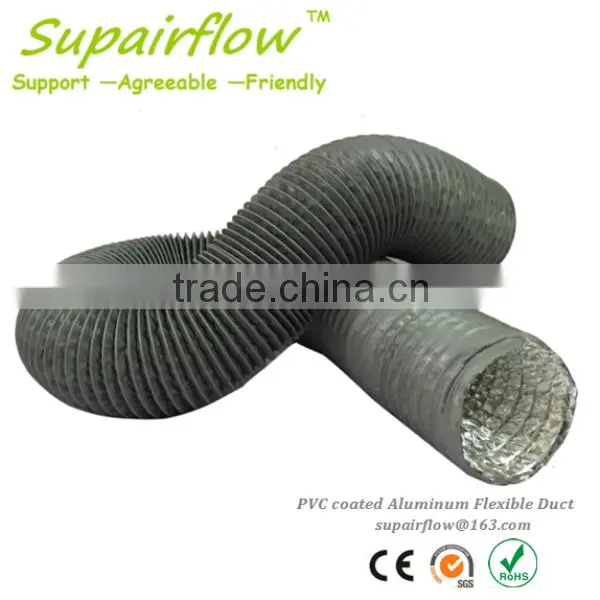

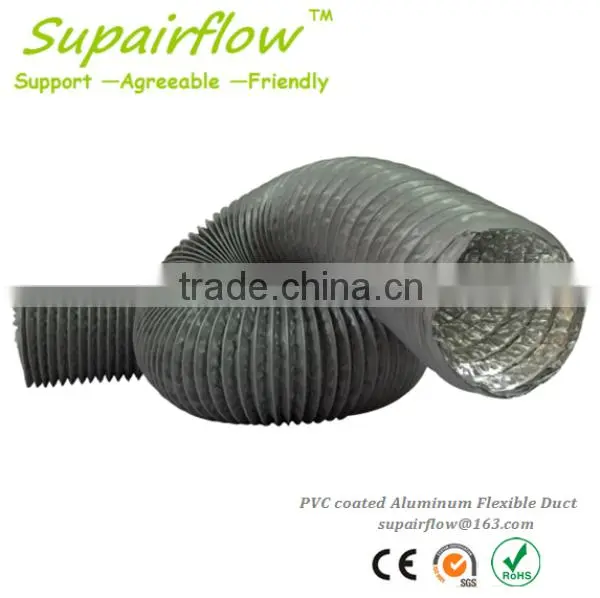

AIR CONDITION PVC DUCT GREY PVC DUCT HOSE
1.Product Description:
Supairflow fire rated flexible pvc air duct hose is manufactured from
aluminum foils (metallized Mylar),laminated incorrporating totally encapsulated
helically spring wire.which provides outstanding resistance and durability.
Suitable for bathrooms ,toilets,laundries, range hood
and most other ventilation uses.
2. Product composition:
Type 1:PVC coated Single layer aluminum foils type ( Item no.: Supair-003)
Made up of 1 layer PVC film/1 layer Aluminum foils/ 1 layer Polyester with steel wire
Type 2: PVC coated Double layer aluminum foils type(Item no.: Supair-004)
Made up of 1 layer PVC film /1 layer aluminum foils/1 layer Polyester/1 layer aluminum foils
with steel wire
3.Technical parameter:
Air Velocity |
30 m/s (max) |
Operating pressure |
2500 Pa (max) |
Temperature range |
-30℃ to 140 ℃ |
Fire resistance |
YES,Difficult to ignite |
Thickness of PVC coated Aluminum flexible duct |
127 micron (Supair-001 type), 132 micron(Supair-002 type) |
4.Product Size(Diameter) and Length:
Item: flexible pvc duct hose ( Supair-003 & Supair-004 Type)
Size |
4” |
5” |
6” |
8” |
10” |
12” |
12.5” |
14” |
Diameter |
102mm |
127mm |
152mm |
203mm |
254mm |
305mm |
315mm |
356mm |
Length |
3m 5m 6m 10m 25feet available |
|||||||
Packaging |
1 piece per carton box with plastic bag inside |
|||||||
5.Delivery and Payment terms:
Delivery Time (Lead time) |
10 - 20 days after order confirmed |
Payment Terms |
By T/T,Western Union,MoneyGram |
Port of Loading |
Shenzhen port, Shanghai port,Ningbo port |
6.How to get a sample ?
Get a sample: we provide free sample service,just need the consumer bear freight cost by
Express.(we also can delivery sample via the consumer’s Express account.)
