Horizontal dry powder Ribbon Mixer
Horizontal ribbon mixer is a latemodel mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The special design of double ribbon mix the materials into high uniformity in a few minutes. On the other hand, ribbon mixer shows a wide application from powder mixing , powderliquid, to paste or materials in high specific gravity (such as putty, really stone paint, metal powder and other materials) and becomes one of the most popular single shaft horizontal mixing equipment.
Working Principle

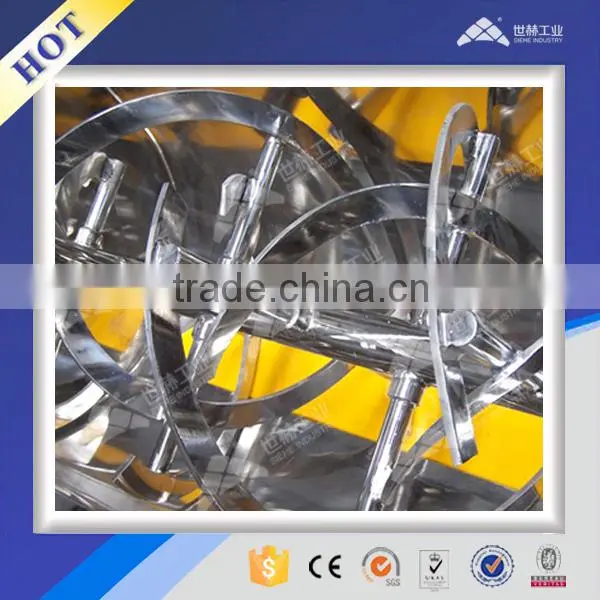

Horizontal ribbon mixer consists of drive disk assembly, double layer ribbon agitator, U-shape cylinder. Inside ribbons move materials toward the ends of the ribbon blender whereas the outside ribbons move material back toward the center of the ribbon blender, therefore, materials get fulling mixing. Materials flow direction are determined by ribbon angle, direction, twining method. Material outlet are located in the middle of cylinder bottom. Outside ribbon driven by main shaft moves materials to discharging to ensure no discharging dead zone.

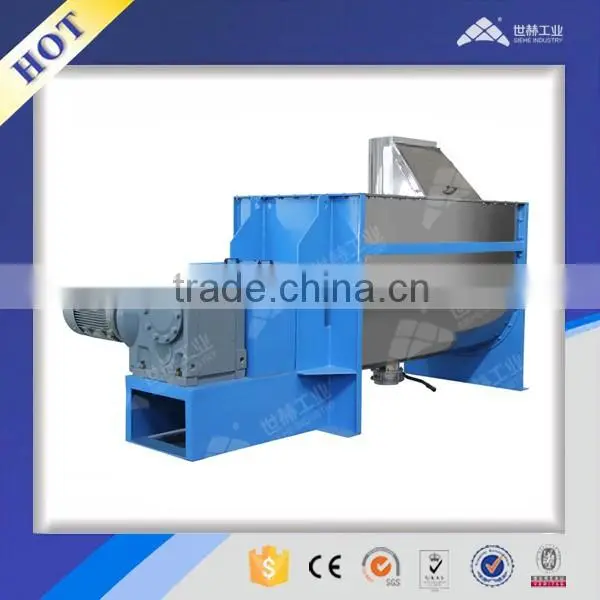

Products show
specifications
Model |
Power (kw) |
Speed (rpm) |
Thickness (mm) |
Capacity (L) |
Size |
Weight (kg) |
||
Length |
Width |
Height |
||||||
SLD-0.1 |
3 |
60 |
4 |
30-60 |
1500 |
500 |
700 |
400 |
SLD-0.2 |
4 |
60 |
4 |
60-120 |
2000 |
600 |
900 |
600 |
SLD-0.3 |
5.5 |
41 |
4 |
90-180 |
2000 |
700 |
1000 |
800 |
SLD -0.5 |
7.5 |
41 |
5 |
150-300 |
2500 |
800 |
1400 |
1200 |
SLD -1 |
11 |
33 |
5 |
300-600 |
2700 |
1000 |
1450 |
1800 |
SLD -2 |
15 |
33 |
5 |
600-1200 |
3400 |
1200 |
1700 |
2300 |
SLD -3 |
18.5 |
33 |
6 |
900-1800 |
3800 |
1300 |
1950 |
3200 |
SLD -4 |
22 |
26 |
6 |
1200-2400 |
4100 |
1400 |
2000 |
4000 |
SLD -5 |
30 |
26 |
6 |
1500-3000 |
4200 |
1500 |
2000 |
4500 |
SLD -6 |
37 |
26 |
6 |
1800-3600 |
4500 |
1700 |
2100 |
6000 |
SLD -8 |
45 |
20 |
6 |
2400-4800 |
5000 |
1800 |
2200 |
7000 |
SLD -10 |
55 |
20 |
8 |
3000-6000 |
5000 |
1900 |
2500 |
8000 |
SLD -15 |
90 |
20 |
8 |
4500-9000 |
6500 |
2100 |
2800 |
9800 |
SLD -20 |
110 |
18 |
8 |
6000-12000 |
7500 |
2400 |
3000 |
13000 |
SLD -30 |
132 |
16 |
10 |
9000-18000 |
9000 |
2600 |
3500 |
18000 |
