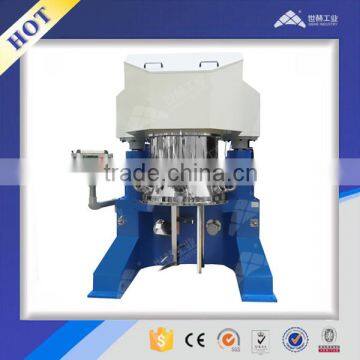

Dual Planetary Mixer(dual pole) for Lithium Battery:
Dual Planetary Mixer is a new mixing machine with high performance, high efficiency, easy to clean and to maintain, which is
innovated and improved based on the introduced oversea advanced technology. The Dual agitators of this equipment rotate and at
the same time revolve around the axle, the agitators are divided by the viscosity and characteristics of the material, usually include
paddle type, twist type, claw type, frame type etc., have good mixing, reacting, kneading, dissolving effect. The mixer is equipped with
a separate set of scraper to scrape the sides of the barrel and the mixing paddle can be added a scraper as well, so that it can
scrape the bottom of the barrel and avoid dead corner to ensure the stability of the product. Dual Planetary Mixer adopts planetary
gear wheel drive, there is a large output torque, suitable for high temperature, high solids, high viscosity, and other difficult working
conditions; this equipment is closed design, can be used with a vacuum system to realize vacuum mixing, mixing bucket can be
designed with a heating jacket, matching mold temperature controller, to realize thermostatic mixing function, it’s the first choice
of mixing equipment for the high-viscosity materials.
[Applicable Materials]: Various slurries with viscosity less than 3,000,000cps, solid content under 90% such as battery paste,
solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc.
Model | Working volume (L) | Mixing power (kw) | Revolve speed (rpm) | Rotating speed (rpm) | Scraper speed (rpm) | Lifting mode | Lift (mm) | Hydraulic power (kw) | Vacuum pump power (kw) | Material | |
SXJB-8 | 5 | 1.5 | 0-65 | 0-170 | 0-170 | Hydraulic lift | 300 | 0.75 | 0.37 | Material contact part SS304 | |
SXJB-15 | 12 | 2.2 | 0-65 | 0-170 | 0-170 | Hydraulic lift | 350 | 0.75 | 0.55 | Material contact part SS304 | |
SXJB-30 | 24 | 4 | 0-65 | 0-170 | 0-170 | Hydraulic lift | 500 | 1.1 | 1.5 | Material contact part SS304 | |
SXJB-50 | 40 | 5.5 | 0-65 | 0-170 | 0-170 | Hydraulic lift | 500 | 1.1 | 1.5 | Material contact part SS304 | |
SXJB-100 | 80 | 7.5 | 0-30 | 0-95 | 0-95 | Hydraulic lift | 650 | 1.5 | 2.2 | Material contact part SS304 | |
SXJB-200 | 160 | 11 | 0-30 | 0-95 | 0-95 | Hydraulic lift | 750 | 2.2 | 2.2 | Material contact part SS304 | |
SXJB-300 | 240 | 15 | 0-30 | 0-95 | 0-95 | Hydraulic lift | 900 | 3 | 4 | Material contact part SS304 | |
SXJB-500 | 400 | 22 | 0-30 | 0-65 | 0-65 | Hydraulic lift | 1000 | 4 | 4 | Material contact part SS304 | |
SXJB-800 | 640 | 30 | 0-30 | 0-65 | 0-65 | Hydraulic lift | 1100 | 4 | 5.5 | Material contact part SS304 | |
SXJB-1000 | 800 | 37 | 0-30 | 0-65 | 0-65 | Hydraulic lift | 1200 | 5.5 | 7.5 | Material contact part SS304 | |
SXJB-1200 | 960 | 45 | 0-30 | 0-65 | 0-65 | Hydraulic lift | 1300 | 5.5 | 11 | Material contact part SS304 | |
SXJB-1500 | 1200 | 55 | 0-30 | 0-65 | 0-65 | Hydraulic lift | 1400 | 7.5 | 11 | Material contact part SS304 | |
SXJB-2000 | 1600 | 75 | 0-30 | 0-65 | 0-65 | Hydraulic lift | 1500 | 11 | 15 | Material contact part SS304 | |
Remark:
*Capacity is tested based on the materials viscosity 200,000cps; The model selection shall be based on the data such as the
materials viscosity, characteristic etc.
* If the working condition is high temperature, high pressure, flammable, explosive, corrosive or others, you must provide detailed
data for our engineer to customize specially.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
