Dye Pigment Filling Machine

Name: Dye Pigment Filling Machine
Brand: SIEHE
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Application:	Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Coating, paint, printing ink, dye, pigment, adhesive, pesticide etc	Packaging Type:	Case
Packaging Material:	Metal, Wood	Automatic Grade:	Semi-Automatic	Driven Type:	Electric
Voltage:	380V, 220V, 240V, can be customized	Power:	50/60 HZ	Place of Origin:	Shanghai, China
Brand Name:	SIEHE	Model Number:	SGZ Series	Certification:	CE, BV, ISO, SGS
After-sales Service Provided:	Engineers available to service machinery overseas

Dye Pigment Filling Machine

Product Description

Product Introduction:

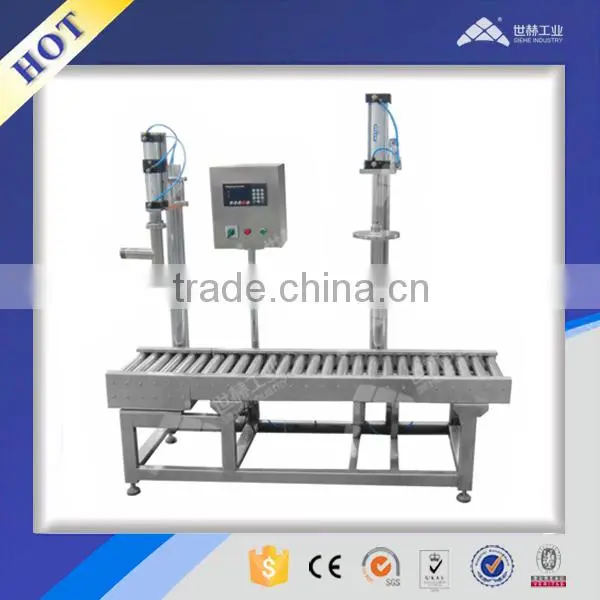

Semi-automatic Filling Machine(Weighing Type )adopts gravimetric method to measure, by weighing sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipped with a pump in the front end of the feeding port, or pressuring the material tanks to sent material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. The equipment has advantages of high filling efficiency and small filling error. SIEHE Semi-automatic Filling Machine (Weighing Type ) is widely used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc.. It is not only suitable for the filling of liquid, but also for filling of ointment product.

[Application Industry]: Suitable for filling of materials in industries such as coating, ink, adhesive(glue), resin, chemical solvent, lubricant, pesticide, etc..

[Applicable Materials]: Materials shall be with viscosity less than50,000cps, liquid or slurry with a certain liquidity such as edible oil, emulsion paint, color paste, industrial paint, curing agent, organic solvent, water-based ink, suspension concentrate, adhesive, detergent, etc..

Technical Parameter:

Model	Power Supply	Air Source (MPa)	Filling Range (kg)	Filling Speed (Can/min)	Division Value (g)	Material	Barrel Spec (mm)	Filling Accuracy (kw)	Roller Height (mm)	Gland Way
SGZ-5	220V,50HZ	0.5	≤5	12-20	2/5	Material Contact SS304 Stainless Steel	≤Ø200*300	±0.2%	470	clamping/pressing lid
SGZ-30	220V,50HZ	0.5	≤30	5-12	10	Material Contact SS304 Stainless Steel	≤Ø350*400	±0.2%	600	clamping/pressing lid
SGZ-50	220V,50HZ	0.5	≤50	5-12	10	Material Contact SS304 Stainless Steel	≤Ø350*400	±0.2%	600	clamping/pressing lid
