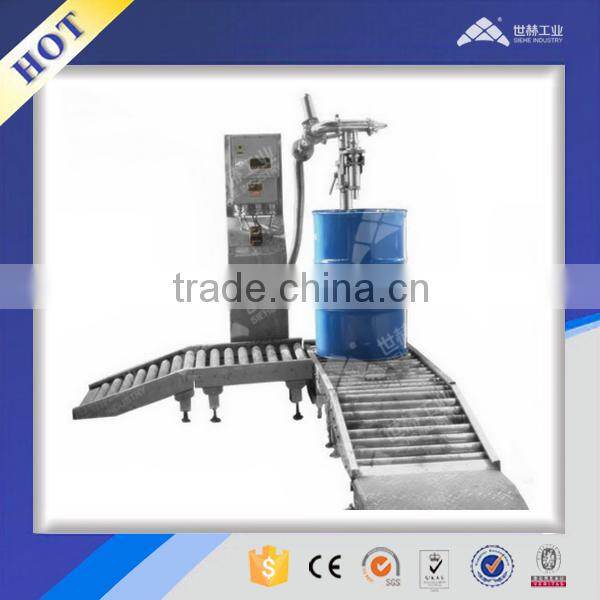

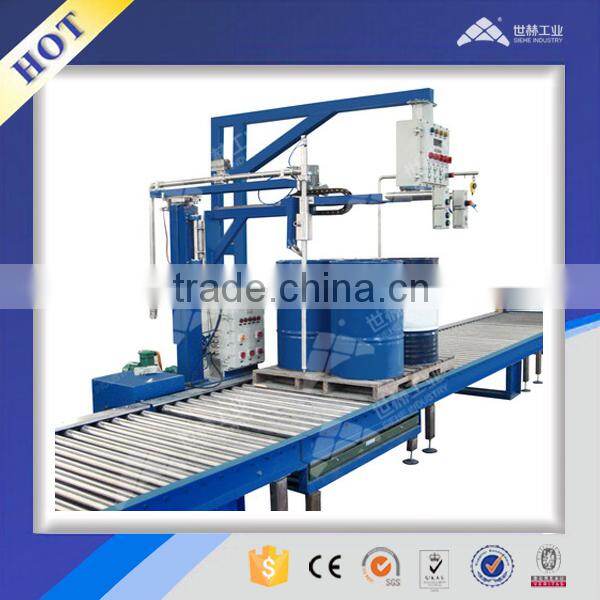

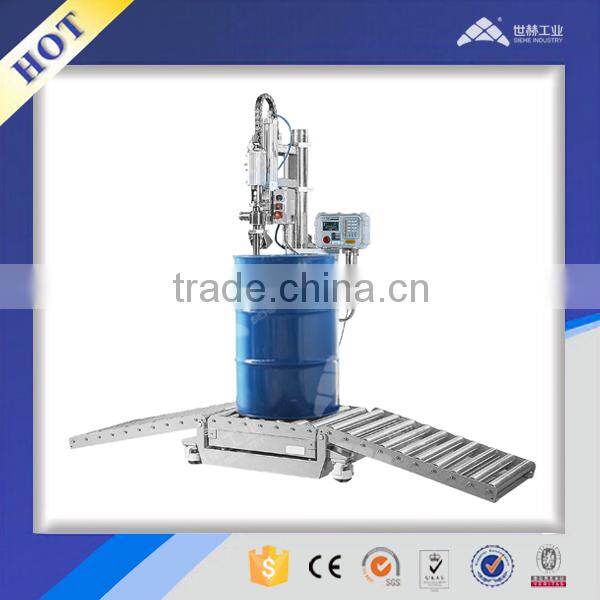

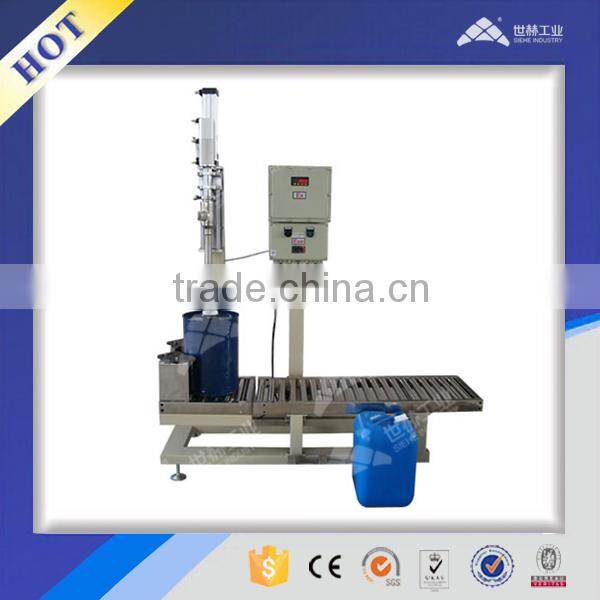

Paint drum filling machine
Big Drum Semi-automatic Filling Machine adopts gravimetric method to measure ,by weighing sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipped with a pump in the front end of the feeding port,or pressuring the material tanks to sent material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. Siehe Semi-automatic Filling Machine( Big Drum ) is widely used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc.. It is not only suitable for the filling of liquid, but also for filling of ointment product.
Filling quickly, wide application
Filling head adopts double speed (slow and fast) filling, can effectively improve the filling speed, cost savings, and reduce the workers’ work pressure; Due to the weighing type design, it is suitable for round, square, flat and various diameter of filling.
Various filling specifications
The machine has a large range of filling volume of at least 50 kg and up to 1000 kg, which can satisfy the different filling requirements of manufacturers.
Filling with high precision, high degree of intelligence
The machine adopts international famous brand Mettler Toledo weighing sensor, scale accuracy can reach more than two over ten thousand, thus ensure filling accuracy; Equipped with automatic control instrument, to realize automatic feeding; With functions of boot automatically reset, automatic weight error correction, power-off protection, fault detection function, Wrong operation restore the factory Settings, etc., the intelligent advantage is obvious.
Environmental protection index outstanding and safe
The feed of filling use pipe connection, less solvent evaporation, and the environment is good; Filling head can be designed with ascending form, which is suitable for processing easy foaming material.
Model |
Power Supply |
Air Source (Mpa) |
Filling Range (kg) |
Filling Speed (Can/h) |
Division Value (g) |
Material |
Barrel Dimensin (mm) |
Filling Accuracy (g) |
SGZ-300 |
220V,50HZ |
0.5 |
50-300 |
40-60 |
100 |
SS304 Stainless Steel |
≤Ø600*930 |
≤±100 |
SGZ-1000 |
220V,50HZ |
0.5 |
200-1000 |
10-20 |
100 |
SS304 Stainless Steel |
≤Ø1000*1100 |
≤±200 |
Please contact with us or check our webisite for more detailed information.
