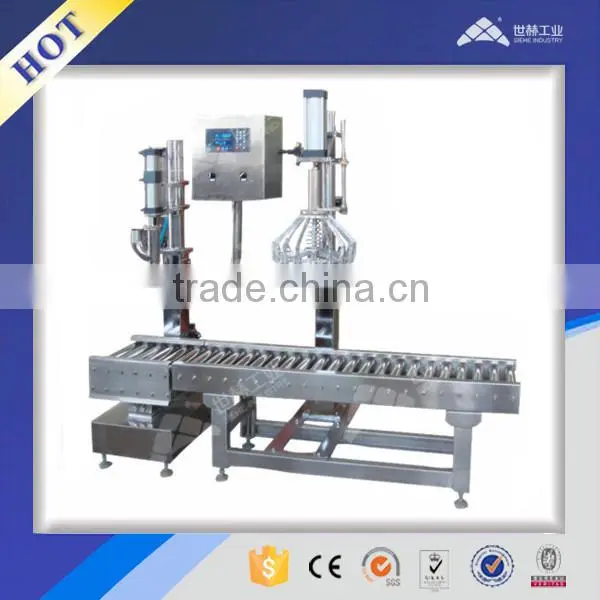

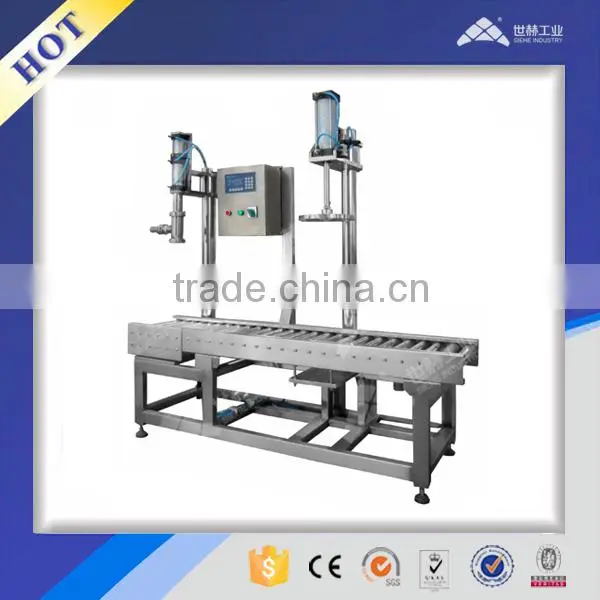

Semi auto Drum Liquid Filling Machine
1. Introduction:
Semi automatic Liquid filling machine (Drum) is mainly used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemcial etc.. It is suitable for filling liquid, oinment products
2. Main features:
1.Adopts weight filling. It is with high measurement precision and will not be effected by different materials.
2.It consists of two filling valves (Fast Fill and Slow Fill), which not only can speed up filling speed but also filling accuracy. Its measurement error is less than 10g/Pail. Filling head adopts antidrip device. The filled materials are without bubble generated and with good effect. 3.Automatic materials filling control, and equipped with pneumatic lid-clamping device and pneumatic lid-pressing device.
3. Technical Parameter
- Power supply:220V,50/60Hz
- Filling speed: 160-300 Pails per hour
- Filling error:±0.2%
- Air consumption:Flux 0.1m3/h, pressure 0.4~0.6MPa
- Working temperature:0°C~40°C
- Convey roller:Unpowered roller, length of 1300mm
- Filling range:0.5-5L, 2-10L, 5-30L, 10-50L
- Materials:Wetted parts of SS304 or SS316
- Environment requirement:Explosive proof or Non explosive proof
- Capping device:Pneumatic lid-clamping device, Pneumatic lid-pressing device
Remarks:
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
*The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.
Application
Coating, paint, printing ink, dye, pigment, adhesive, pesticide etc
Custom designs are also available.
