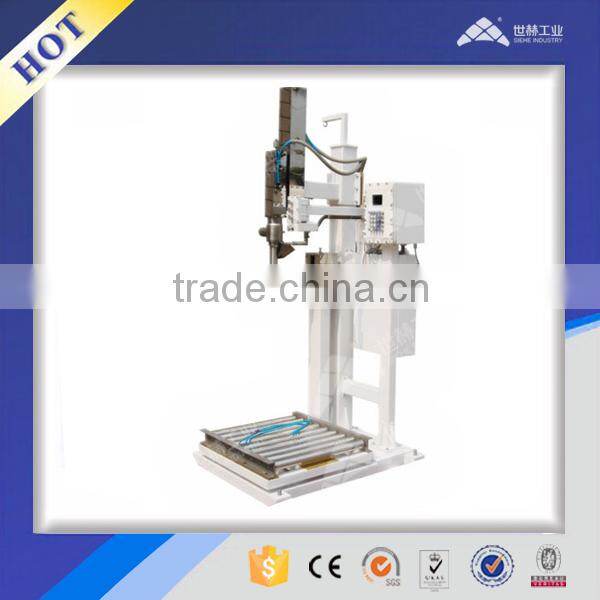

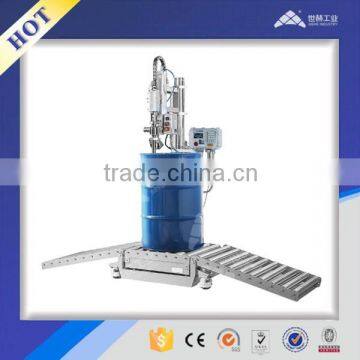

Big Drum Semi-automatic Filling Machine
Big Drum Semiautomatic Filling Machine adopts gravimetric method to measure ,by weighing sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipped with a pump in the front end of the feeding port,or pressuring the material tanks to sent material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. Siehe Semiautomatic Filling Machine( Big Drum ) is widely used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc.. It is not only suitable for the filling of liquid, but also for filling of ointment produc
Working Principle
When feeding valve is open, discharging valve is closed, the piston rod back kick, to draw the material from raw material tank into piston cavity; Close the feeding valve and open the discharging valve, piston rod pushed forward, to bring the material from piston cavity to the tank. Reciprocating work, with a roller conveyor and lidpressing/clamping device, the machine completes the material filling and sealing process.
WHY US
Filling quickly, wide application
Filling head can choose single or double , adopting double speed (slow and fast) filling, to effectively improve the filling speed, cost savings, and reduce the workers’ work pressure; Due to the weighing type design, it is suitable for round, square, flat and various diameter of filling.
Various filling specifications
The machine has a large range of filling volume of at least 50 kg and up to 1000 kg, which can satisfy the different filling requirements of manufacturers.
Filling with high precision, high degree of intelligence
The machine adopts international famous brand Mettler Toledo weighing sensor, scale accuracy can reach more than two over ten thousand, thus ensure filling accuracy; Equipped with automatic control instrument, to realize automatic feeding; With functions of boot automatically reset, automatic weight error correction, power-off protection, fault detection function, Wrong operation restore the factory Settings, etc., the intelligent advantage is obvious.
Other Specifications
Model |
Power Supply |
Air Source (Mpa) |
Filling Range (kg) |
Filling Speed (Can/h) |
Division Value (g) |
Material |
Barrel Dimensin (mm) |
Filling Accuracy (g) |
SGZ-300 |
220V,50HZ |
0.5 |
50-300 |
40-60 |
100 |
Material Contact in SS304 Stainless Steel |
≤Ø600*930 |
≤±100 |
SGZ-1000 |
220V,50HZ |
0.5 |
200-1000 |
10-20 |
100 |
Material Contact in SS304 Stainless Steel |
≤Ø1000*1100 |
≤±200 |
