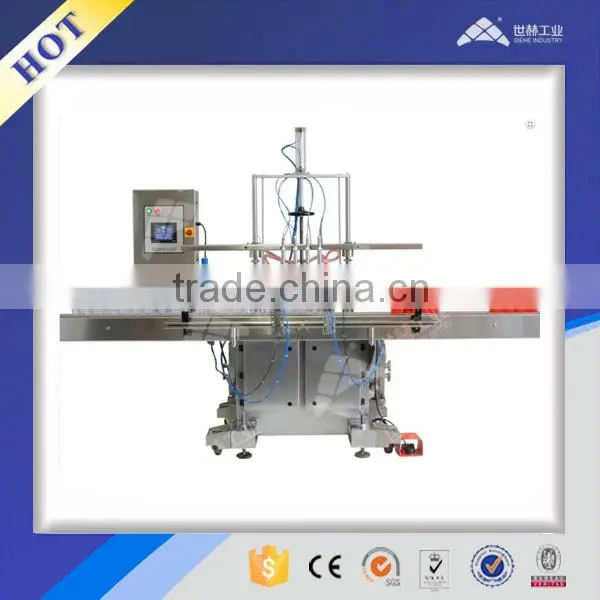

Liquid lubricating oil pail fast Filling Machine
Multiheads Linear Automatic Liquid Filling Machine(Volume type) has the advantages of linear filling, which can apply to a variety of specifications of the bottles, convenient adjustment, free of maintenance and design, measurement methods using piston volume filling, continuous work, lasting stability, can match 2 to 12 filling head, and with the bottle convey ,position structure ,positioning ,screw cap cover device, whole machine PLC control, with detection device, no bottle no filling, no set or screw cap, filling with high efficiency, high filling precision, safety, and intelligent advantages. The machine can also be equipped with washing bottle, labeling, printing, packing, sealing, and other functions, to realize unmanned filling linking production line.
Working Principle
Feed valve open and discharge valve is closed, the piston rod back kick, to draw the material from raw material tank into piston cavity; Close the feed valve and open the discharge valve, piston rod pushed forward, to bring the material from piston cavity to the tank and reciprocating work.Also equipped with the bottle convey ,position structure, positioning ,screw cap cover device, then the machine complete the material filling and sealing process.
WHY US
Filling quickly, wide application
Filling head can use multi-head filling, piston working, high filling speed, cost savings, and reduce the workers’ work pressure; The machine use linear filling and suit for a variety of specifications of bottle type, easy to adjust.
Convenient operation, easy maintenance
Personalized design, operation of the machine can be finished by one person, use the roller conveyor, and the position of the barrel can be adjust by the works, never has any influence on the filling.
Environmental protection index outstanding and operation safe
Full pneumatic control meet the requirements of explosion-proof; Immediately after filling, the lid-clamping and lid-pressing finished quickly, less solvent evaporation, and the environment is good.
Customized design, excellent performance
Using dripproof and brushed filling cocks, prevent bubble product filling lifting system, to ensure that the bottle mouth positioning system and liquid level control system
Other Specifications
Model |
Air Source (Mpa) |
Filling head
|
Filling Range (ml) |
Filling Speed (Can/min) |
Material |
Filling Error |
Block Way |
SDGZ-2 |
0.5-0.8 |
2 |
100-10000 |
350-500 |
Material Contact in SS304 Stainless Steel |
≤0.2% |
Put /screw cover |
SDGZ-4 |
0.5-0.8 |
4 |
100-10000 |
750-900 |
Material Contact in SS304 Stainless Steel |
≤0.2% |
Put /screw cover |
SDGZ-6 |
0.5-0.8 |
6 |
100-10000 |
1000-1300 |
Material Contact in SS304 Stainless Steel |
≤0.2% |
Put /screw cover |
SDGZ-8 |
0.5-0.8 |
8 |
100-10000 |
1350-1500 |
Material Contact in SS304 Stainless Steel |
≤0.2% |
Put /screw cover |
SDGZ-10 |
0.5-0.8 |
10 |
100-10000 |
1600-1800 |
Material Contact SS304 Stainless Steel |
≤0.2% |
Put /screw cover |
SDGZ-12 |
0.5-0.8 |
12 |
100-10000 |
1850-2300 |
Material Contact in SS304 Stainless Steel |
≤0.2% |
Put /screw cover |
