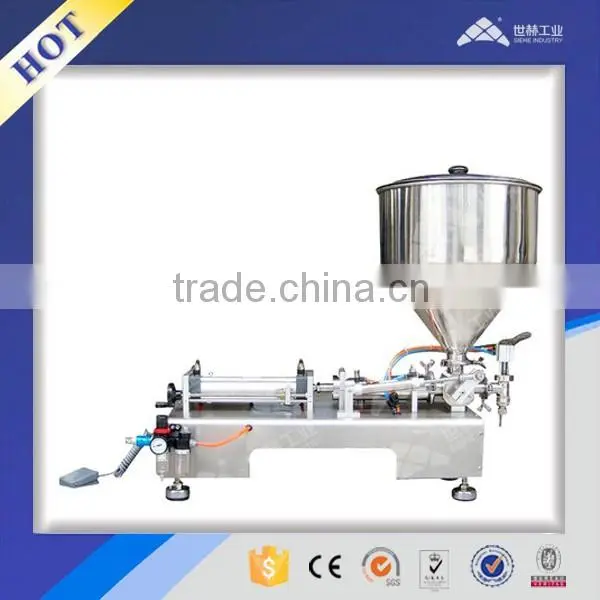

Paste and Liquid Filling Machine with charging hopper
Small Batch Paste&Filling Machine(Volume Type )adopt volumetric method to measure,through the way adjust the plunger volume to realize the control of filling quantity.The reciprocating movement of the piston achieves filling rapidly.The equipment has advantages of high filling efficiency and easy maintenance. Siehe Semiautomatic Filling Machine(Weighing Type ) is widely used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc.. It is suitable for the filling of both high,medium and low viscosity liquid.
Working Principle
Feed valve open ,discharge valve closed, the piston rod back kick,draw the material from the staging fights to piston cavity; Close the feed valve, and open the discharge valve, piston rod push forward, material bring out from piston cavity to the tank; reciprocating Work.
WHY US
Filling quickly, wide application
Filling head can choose single or double , adopting double speed (slow and fast) filling, to effectively improve the filling speed, cost savings, and reduce the workers’ work pressure; Due to the weighing type design, it is suitable for round, square, flat and various diameter of filling.
Convenient operation, easy maintenance
Personalized design, operation of the machine can be finished by one person, use the roller conveyor, and the position of the barrel can be adjust by the works, never has any influence on the filling.
Filling with high precision, high degree of intelligence
Measuring mechanism adopts plunger method, filling volume precision, measurement error is less than ±1%.
Environmental protection index outstanding and operation safe
The feeding of filling chooses pipe connection, immediately after filling, the lidclamping and lidpressing finished quickly, less solvent evaporation, and the environment is good; And explosion-proof type filling machine can be customized.
Other Specifications
Model |
Air Source (Mpa) |
Filling Range (ML) |
Filling Speed (Can/min) |
Material |
Filling Error |
SGZX-15 |
0.5 |
5-15 |
15-40 |
Material Contact SS304 Stainless Steel |
±1% |
SGZX-75 |
0.5 |
10-75 |
15-30 |
Material Contact SS304 Stainless Steel |
±1% |
SGZX-150 |
0.5 |
20-150 |
15-30 |
Material Contact SS304 Stainless Steel |
±1% |
SGZX-300 |
0.5 |
50-300 |
10-25 |
Material Contact SS304 Stainless Steel |
±1% |
SGZX-500 |
0.5 |
100-500 |
8-20 |
Material Contact SS304 Stainless Steel |
±1% |
SGZX-1000 |
0.5 |
200-1000 |
5-15 |
Material Contact SS304 Stainless Steel |
±1% |
