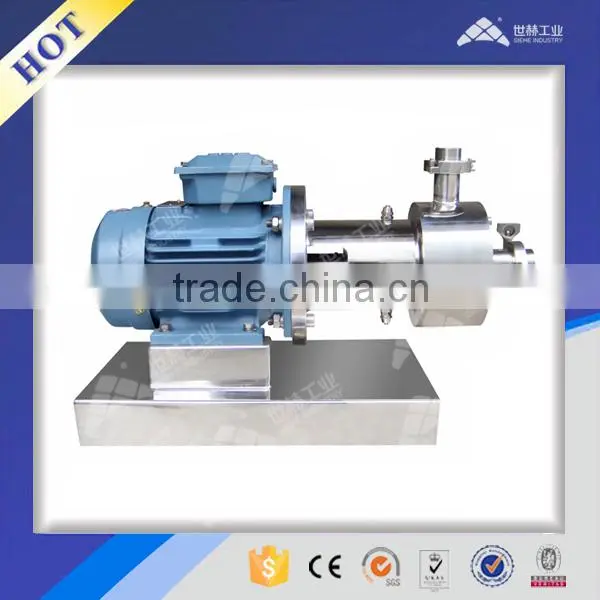

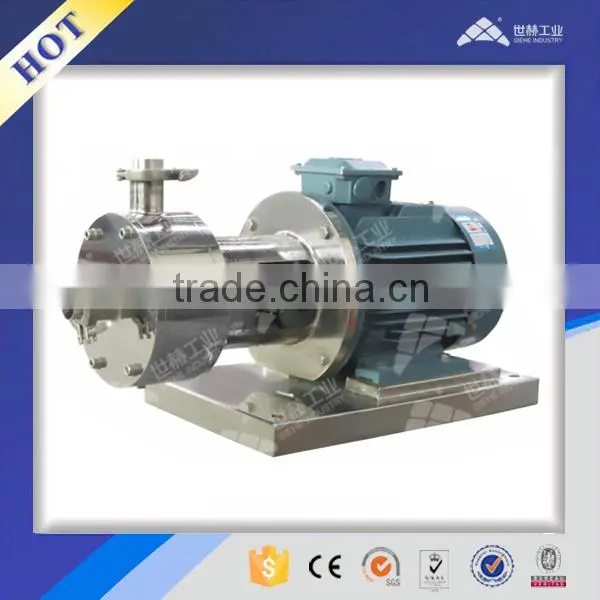

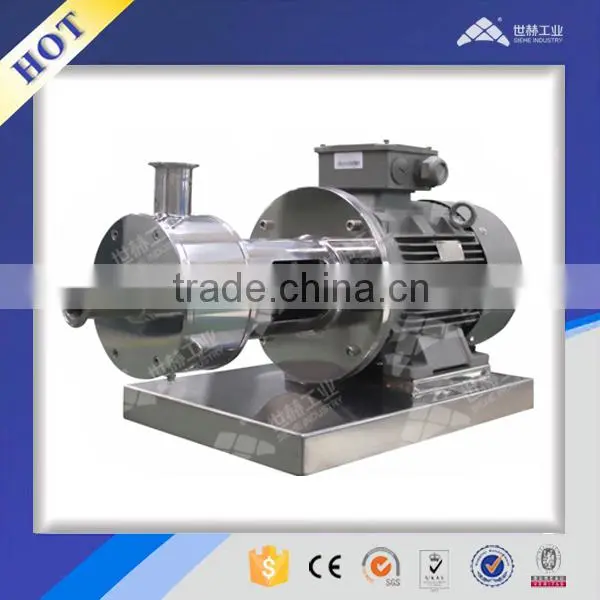

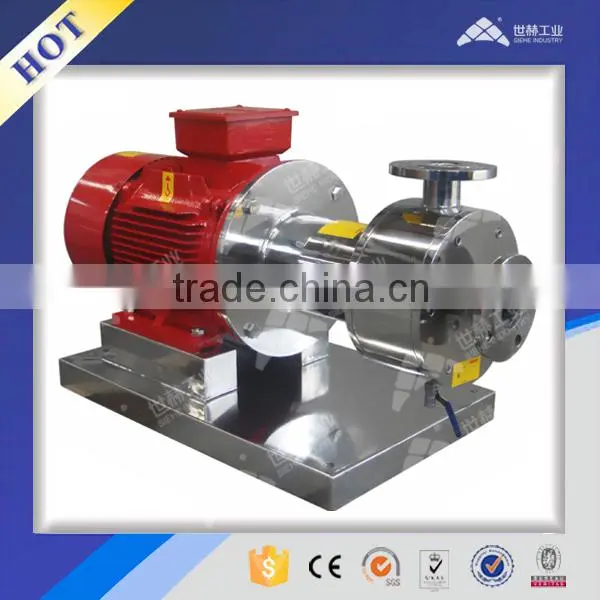

Tomato Sauce Inline Emulsifying machine(single stage)

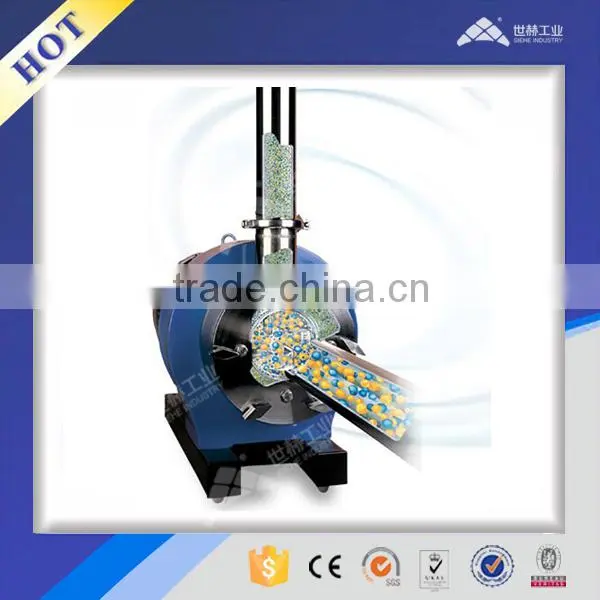

Inline High-shear Emulsifier is a continuous production type emulsifier with high efficiency. It processes materials in
continuous production or circulation of fine materials. The motor drives the rotor to rotate at high speed. It narrows the particle
size of Liquid-liquid and liquid solid materials through external mechanical force and distributes one phase materials into
another phase or many other phases evenly to realize good homogenizing, dispersing and emulsifying result. As a result, the
materials become stable emulsion. It can be equipped with materials transfer pump in front of it to make it suitable for
materials with mid-and-high viscosity. The materials are thoroughly dispersed and sheared after going through it. It is
characterized in low noise and stable running, short transfer distance and low head.
[Production Capacity]: 60m³/h
[Applicable Materials]:Applicable for production process for solution, gel, suspension or emulsion of solid - liquid, liquid- liquid materials such as juice, soup bases, milk production, tissue homogenate, cosmetics, surfactants, asphalt, emulsifier,
oil field chemicals etc.
Model |
Power (kw)
|
Capacity (m³/h)
|
Speed (rpm)
|
Inlet (mm)
|
Outlet (mm)
|
Material |
SRB1.1/1/6 |
1.1 |
0.5 |
0-2930 |
DN32 |
DN25 |
SS304/SS316L |
SRB2.2/1/6 |
2.2 |
3 |
0-2930 |
DN40 |
DN32 |
SS304/SS316L |
SRB4/1/6 |
4 |
5 |
0-2930 |
DN40 |
DN32 |
SS304/SS316L |
SRB7.5/1/6 |
7.5 |
7 |
0-2930 |
DN50 |
DN40 |
SS304/SS316L |
SRB11/1/6 |
11 |
10 |
0-2930/1450 |
DN50 |
DN50 |
SS304/SS316L |
SRB15/1/6 |
15 |
13 |
0-2930/1450 |
DN65 |
DN50 |
SS304/SS316L |
SRB18.5/1/6 |
18.5 |
16 |
0-2930/1450 |
DN65 |
DN50 |
SS304/SS316L |
SRB22/1/6 |
22 |
20 |
0-2930/1450 |
DN80 |
DN65 |
SS304/SS316L |
SRB30/1/6 |
30 |
28 |
0-1450 |
DN100 |
DN80 |
SS304/SS316L |
SRB37/1/6 |
37 |
35 |
0-1450 |
DN125 |
DN100 |
SS304/SS316L |
SRB45/1/6 |
45 |
42 |
0-1450 |
DN150 |
DN125 |
SS304/SS316L |
SRB55/1/6 |
55 |
50 |
0-1450 |
DN150 |
DN125 |
SS304/SS316L |
SRB75/1/6 |
75 |
60 |
0-1450 |
DN175 |
DN150 |
SS304/SS316L |
Remarks:
* The capacity is data based on water as medium. The model selection shall be based on the data such as the materials
viscosity, density etc..
* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details
are required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
