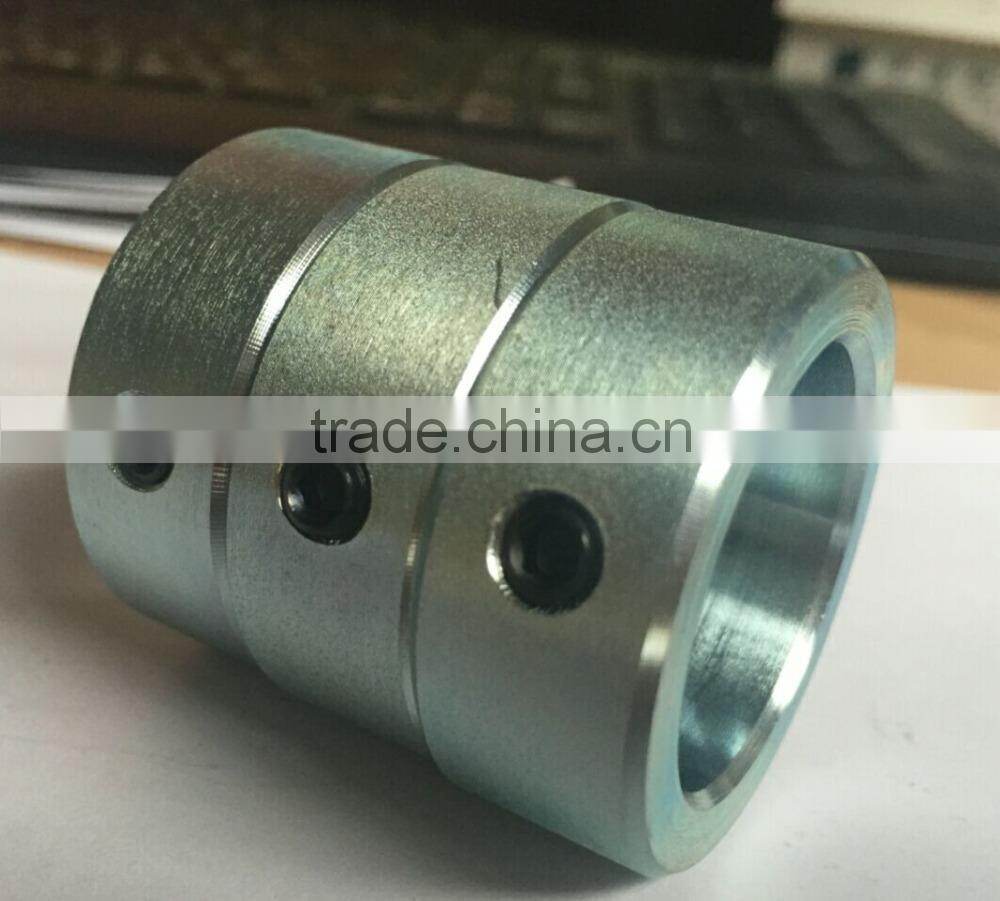

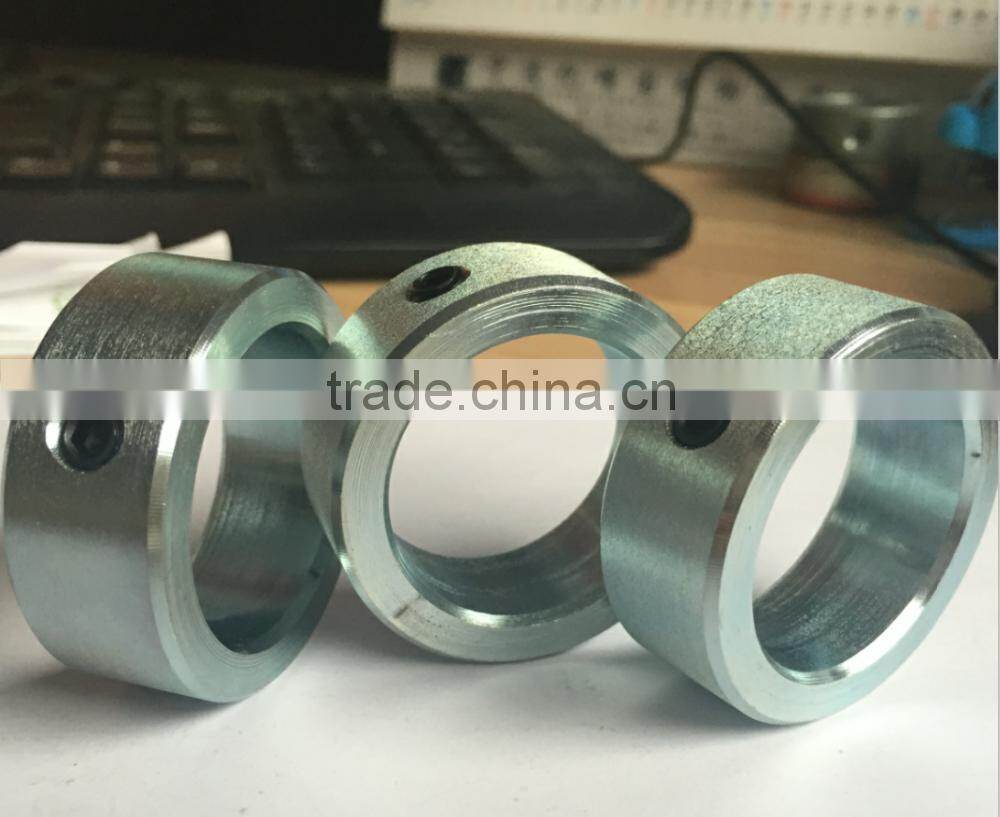

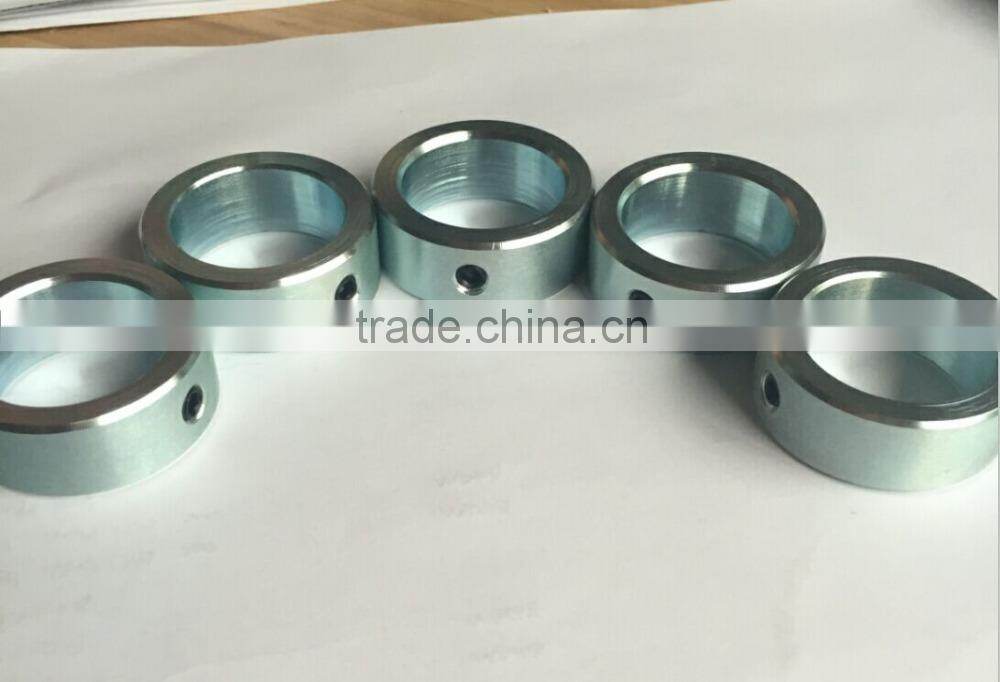

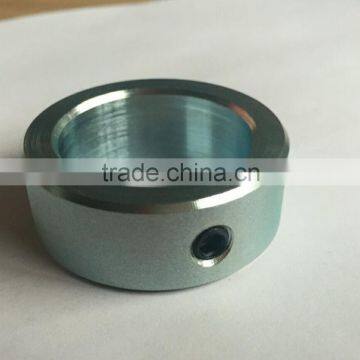

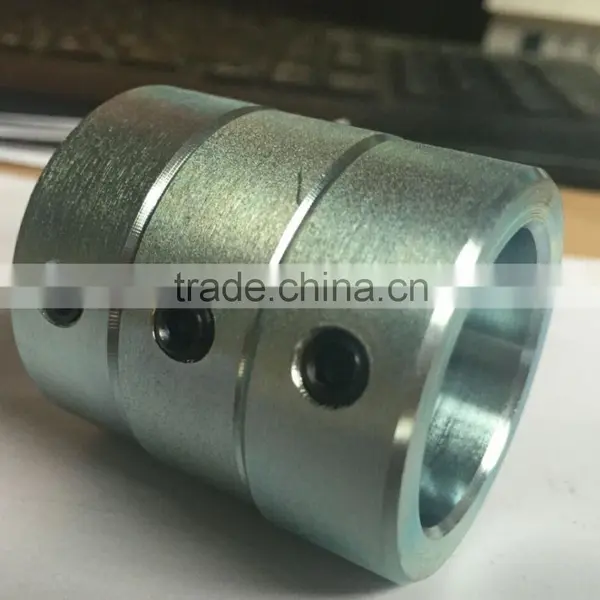

1 9/16" Inch Set Screw Shaft Collar With Zinc Plated

1 9/16" Inch Set Screw Shaft Collar With Zinc Plated thumbnail-1
1 9/16" Inch Set Screw Shaft Collar With Zinc Plated thumbnail-2
1 9/16" Inch Set Screw Shaft Collar With Zinc Plated thumbnail-3
1 9/16" Inch Set Screw Shaft Collar With Zinc Plated photo-1
1 9/16" Inch Set Screw Shaft Collar With Zinc Plated photo-2
1 9/16" Inch Set Screw Shaft Collar With Zinc Plated photo-3
US$ 0.25 - 0.25 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Nonstandard
Contact Supplier Request Quote Chat Now
Jiaxing Jingyi Auto And Motorcycle Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Disc
Flexible or Rigid Flexible
Standard or Nonstandard Nonstandard
Material Steel
Brand Name JY
Place of Origin Zhejiang, China
Model Number JY001

Shaft Collar with znic plated:

Set Screw Collar Specification
Steel CollarBore(inch)OD(inch)Width(inch)Set Screw
SC-3-F0.1875  7/160.25#8-32X1/8
SC-4-F0.25  1/2 0.281#8-32X1/8
SC-5-F0.3125  5/8 0.344#10-32X5/32
SC-6-F0.375  3/4 0.3751/4-20X3/16
SC-7-F0.4375  7/8 0.4381/4-20X1/4
SC-8-F0.510.4381/4-20X1/4
SC-9-F0.562510.4381/4-20X1/4
SC-10-F0.6251 1/80.55/16-18X1/4
SC-11-F0.68751 1/40.5635/16-18X1/4
SC-12-F0.751 1/40.5635/16-18X1/4
SC-13-F0.81251  5/160.5635/16-18X1/4
SC-14-F0.8751 1/20.5635/16-18X5/16
SC-15-F0.93751 5/80.5635/16-18X5/16
SC-16-F11 5/80.6255/16-18X5/16
SC-17-F1.06251 3/40.6255/16-18X5/16
SC-18-F1.1251 3/40.6255/16-18X5/16
SC-19-F1.187520.6883/8-16X3/8
SC-20-F1.2520.6883/8-16X3/8
SC-21-F1.31252 1/80.6883/8-16X3/8
SC-22-F1.3752 1/80.753/8-16X3/8
SC-23-F1.43752 1/40.753/8-16X3/8
SC-24-F1.52 1/40.753/8-16X3/8
SC-26-F1.6252 1/20.8133/8-16X3/8
SC-28-F1.752 3/40.8751/2-13X1/2
SC-31-F1.937530.8751/2-13X1/2
SC-32-F230.8751/2-13X1/2
SC-33-F2.062530.8751/2-13X1/2
SC-34-F2.12530.8751/2-13X1/2
SC-35-F2.18753 1/40.9381/2-13X1/2
SC-36-F2.253 1/40.9381/2-13X1/2
SC-38-F2.3753 1/40.9381/2-13X1/2
SC-39-F2.43753 1/211/2-13X1/2
SC-40-F2.53 1/211/2-13X1/2
SC-44-F2.7541.1251/2-13X5/8
SC-47-F2.93754 1/41.1251/2-13X5/8
SC-48-F34 1/41.1251/2-13X5/8
SC-55-F3.43754 3/41.1251/2-13X5/8
SC-56-F3.54 3/41.1251/2-13X5/8
SC-63-F3.93755 1/41.1251/2-13X5/8
SC-64-F45 1/41.1251/2-13X5/8

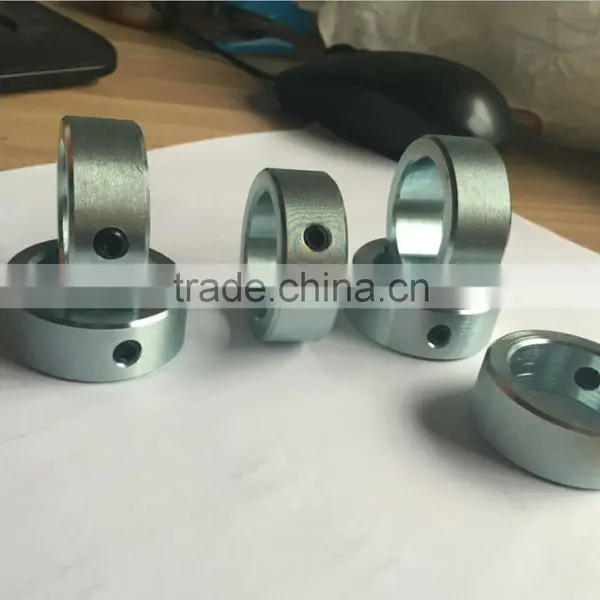

Product show:


1 9/16" inch set screw shaft collar with zinc plated1 9/16" inch set screw shaft collar with zinc plated1 9/16" inch set screw shaft collar with zinc plated



 Inspection:

In our factory , we only use Mitutoyo to inspect!!!

1 9/16" inch set screw shaft collar with zinc plated



 Raw Material:



20 years OEM shaft set collor, we choose the best seamless tube as raw material.

With 300 tons various of seamless tube in stock, we can meet you most request of shaft collar and sleeve bushing.

1 9/16" inch set screw shaft collar with zinc plated



Equipment List:



NoEquipment NameQuantity In Useing
1  25Ton Stamping Machine( World)3
245Ton Stamping Machine( World)3
3 60Ton Stamping Machine( World)1
480Ton Stamping Machine( World)1
516Ton Stamping Machine( World)4
610Ton Stamping Machine( World)3
7250Ton Stamping Machine( World)1
835Ton Precision Stamping Machine( SEYI) 13
945Ton Precision Stamping Machine( SEYI) 3
10110Ton Precision Stamping Machine( SEYI)  2
11160Ton Precision Stamping Machine( SEYI) 2
12YF32-100 four column universal hydraulic press 2
13CK6136S CNC lathe 25
14C0625 instrument lathe 15
15MT1050A centerless grinder 8
162512B drilling machine8
17WC67Y-100/3200 hydraulic bending machine1
18GZ4232 NC saw machine2
193mm steel plate shearer1
20CNC pipe cutter8
21 welding manipulator (Panasonic)1



Seeing is Believing , welcome to visit our factory

1 9/16" inch set screw shaft collar with zinc plated
