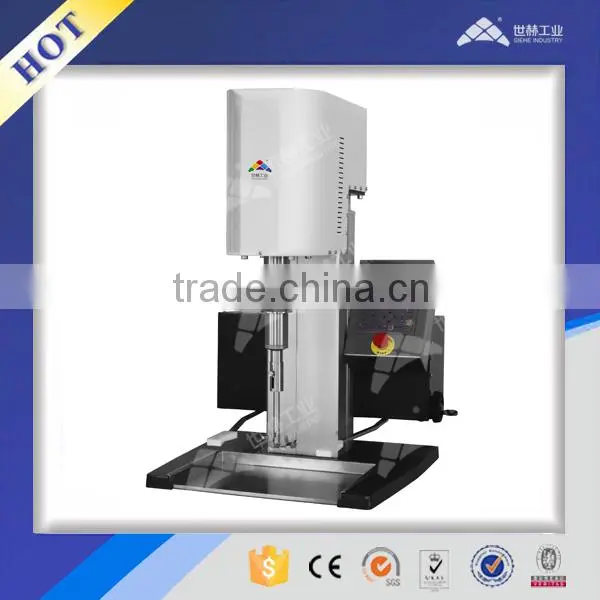

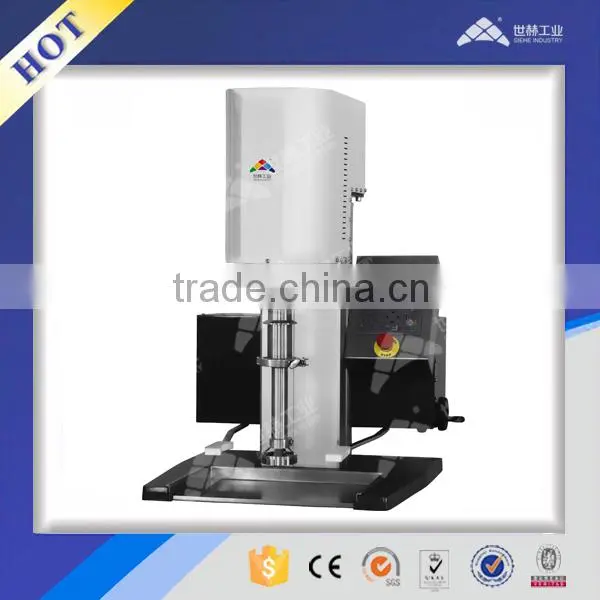

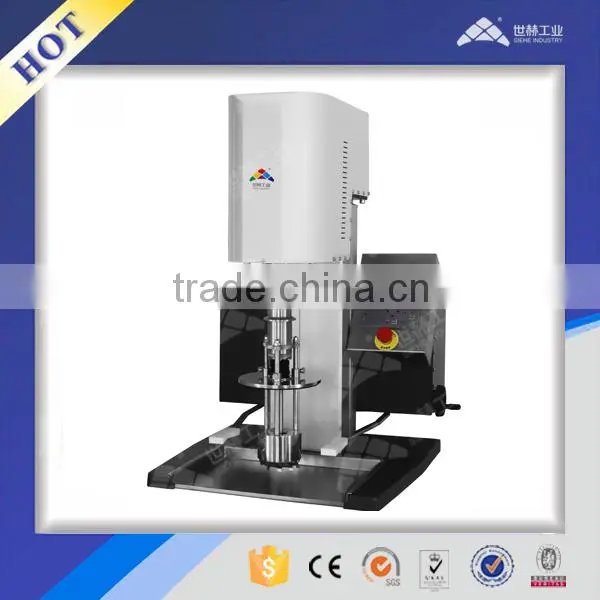

Lab High Speed Disperser Mixer
The lab machine is a newly developed lab machine with multi-function and with high performance. It consists of driving system supporting system, control system, working components and auxiliary system. With the help of different working heads and optional components, one machine can carry out different working modes including Disperser, Basket Mill, Emulsifier, Mixer, Mixing Mill to provide more possibilities for lab application. High-quality components, high-precision processing, intelligent HMI, all make work easy and happy.
Steady lifting
Adopt European imported servo control lifting system with height display and control. The lifting height is settable. Steady lifting, nice appearance, aluminium made shell makes it is easy to clean.
Control system
Adopt SIEMENS HMI and PLC, OMRON programmable Vector frequency conversion controller to realize following functions:
Speed display and control, height display and control, running time display and control, output torque display, load display, total running time display, running data save and output, malfunction alarm and display.
Working head
Various working heads: Disperser, Emulsifier, Mills, Mixer are optional.
Specially designed quick joint to enable to exchange the work head quickly to realize one machine have different functions.
The main part processed by CNC processing center and CNC lathe is with high precision, stable running and long service life.
Working mode |
Voltage |
Power (w) |
Speed |
Working head |
Capacity (water) (L) |
Lifting |
Disperser |
220V 50HZ |
1100 |
100-6000rpm |
50mm, 80mm, 100mm (single layer) 80mm,100mm (double layer) |
2.5L,5L |
Electrical lifting |
Basket mill |
220V 50HZ |
1100 |
100-3000rpm |
The grinding cavity volume is 1L, with 0.6-2mm zirconium bead |
2.5L,5L |
Electrical lifting |
High shear Emulsifier |
220V 50HZ |
1100 |
100-6000rpm |
Two types of working heads, high shear and Up-flow type |
2.5L,5L |
Electrical lifting |
Vacuum dispersing mixer |
220V 50HZ |
1100 |
100-6000rpm |
Tooted type dispersing disc, butterfly agitator, and propeller agitator |
2.5L |
Electrical lifting |
Mixing Mill |
220V 50HZ |
1100 |
100-6000rpm |
One 60mm and one80mm polyamide grinding wheel; One 85mm stainless steel eccentric grinding wheel |
1.5L |
Electrical lifting |
SIEHE - Professional manufacturer of liquid and powder machinery !
