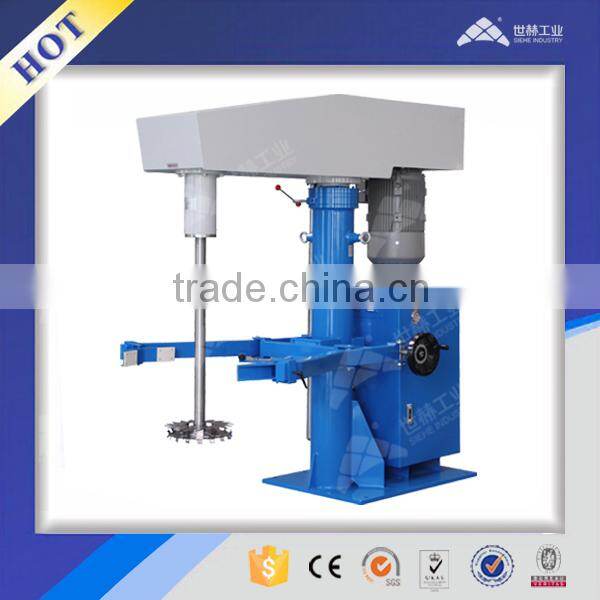

SIEHE paint dispersing machinery equipment
SIEHE paint dispersing machinery equipment has dispersing and mixing function, which used for mass production;
Equipment with inverter has stepless speed, can operate for a long time. It has stable running and low noise; Mixing disc
is easy to be replaced, and can change different forms of dispersing discs according to production technology;
Lifting structure adopts hydraulic cylinder as actuator, stable lifting, integrated hydraulic station, environmental and without
leakage. It is an ideal grinding machine for materials with many varieties and many colors.
[Production Capacity]: 50-20000L
[Applicable Materials]:Material under 100000 cps viscosity, and solid content under 80% of all kinds of slurry such as
emulsion paint, industrial paint, water-based ink, pesticides, adhesives etc.
Higher efficiency, better quality
The Max. rotation speed can be up to 2930rpm (For bigger power, 1450rpm), linear velocity is over 20m/s, it can rapidly
disperse the powder in the liquid evenly;. Due to the strong shearing force , the materials are dispersed evenly and form
good suspension effect.
Safe and convenient operation
Adopt hydraulic cylinder as lifting actuator. Control the hydraulic up, stop, down through the oil pump, easy operation and
stable.The dispersing disc is fixed to the main shaft with Hexagon socket-head cap screws, which can be disassembled and
exchanged quickly, easy to clean. Different dispersing discs can be exchanged accordingly to production process to obtain
optimized dispersing result. Different clamping types(Belt Clamping, Manual Rotation Clamping, Pneumatic Clamping) are
optional to fix the tanks properly to prevent from accident due to the tank displacement during operation.
Various installation ways
With compact structure, the machine can be floor type and platform type. Tank working with the mixer can be removable type
or fixed type.
Customized options
Different options are available such as explosion-proof type, closed type, multi-tanks type, with lifting cover type, co-axial
type/dual-shaft type, mounted on kettle type, etc.. Material can be customized to be SS304 SS321 SS316L .
Model | Motor Power (kw) | Speed | Disc Dia (mm) | Material | Capacity (L) | Hydraulic power (kw) | Lifting (mm)
| Weight (kg)
|
SFSY-1.5 | 1.5 | 0-1450rpm | 120 | Contact material SS304 | ≤60 | 0.55 | 600 | 400 |
SFSY-4 | 4 | 0-1450rpm | 200 | Contact material SS304 | ≤200 | 0.55 | 900 | 600 |
SFSY-7.5 | 7.5 | 0-1450rpm | 230 | Contact material SS304 | ≤400 | 0.55 | 900 | 800 |
SFSY-11 | 11 | 0-1450rpm | 250 | Contact material SS304 | ≤500 | 0.55 | 900 | 1000 |
SFSY-15 | 15 | 0-1450rpm | 280 | Contact material SS304 | ≤700 | 0.55 | 900 | 1100 |
SFSY-18.5 | 18.5 | 0-1450rpm | 300 | Contact material SS304 | ≤800 | 0.75 | 1100 | 1300 |
SFSY-22 | 22 | 0-1450rpm | 350 | Contact material SS304 | ≤1000 | 0.75 | 1100 | 1400 |
SFSY-30 | 30 | 0-1450rpm | 400 | Contact material SS304 | ≤1500 | 0.75 | 1100 | 1500 |
SFSY-37 | 37 | 0-1450rpm | 400 | Contact material SS304 | ≤2000 | 1.1 | 1600 | 1600 |
SFSY-45 | 45 | 0-1450rpm | 450 | Contact material SS304 | ≤2000 | 1.1 | 1600 | 1900 |
SFSY-55 | 55 | 0-1450rpm | 500 | Contact material SS304 | ≤2500 | 1.1 | 1600 | 2100 |
SFSY-75 | 75 | 0-1450rpm | 550 | Contact material SS304 | ≤4000 | 2.2 | 1800 | 2300 |
SFSY-90 | 90 | 0-950rpm | 600 | Contact material SS304 | ≤6000 | 2.2 | 1800 | 2600 |
SFSY-110 | 110 | 0-950rpm | 700 | Contact material SS304 | ≤8000 | 3 | 2100 | 3100 |
SFSY-132 | 132 | 0-950rpm | 800 | Contact material SS304 | ≤10000 | 3 | 2300 | 3600 |
Remarks:
* The capacity is data based on materials with viscosity approx. 1000cps, specific gravity 1g/cm3 as medium. The model selection
shall be based on the data such as the materials viscosity, density etc..
* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details are
required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
