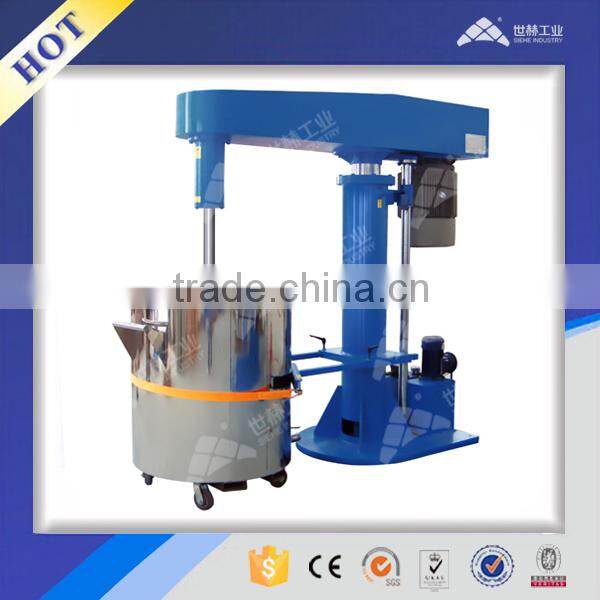

varnish disperser
1. Introduction
It is to dissolve, disperse and mix materials with different viscous. Through the very high peripheral tip speed of the toothed disc, the strong shearing, crashing and friction forces generated between the materials and toothed disc disperse, dissolve and mix the materials efficiently. The large stress forces break down the agglomerates into the liquid or paste suspension and solid particle wetted out.
2. Main Features
a. Little air absorption during mixing and dispersing process.
b. It disperses and dissolves materials to smaller particle size efficiently.
c. No dead corner during mixing. Easy to clean, wide capacity range, various speed control,digital display, stable operation, low noise and long-time continuous operation.
3. Reference Parameter
Model | Capacity | Main Motor | Speed | Disc Dia. | Lift (mm) | Pump (kw) |
SFSY -1.5 | ≤50 | 1.5 | 0-1450 | 150 | 600 | 0.55 |
SFSY -4 | ≤200 | 4 | 0-1450 | 200 | 800 | 0.55 |
SFSY -7.5 | ≤400 | 7.5 | 0-1450 | 230 | 900 | 0.55 |
SFSY -11 | ≤500 | 11 | 0-1450 | 250 | 900 | 0.55 |
SFSY -15 | ≤700 | 15 | 0-1450 | 280 | 900 | 0.55 |
SFSY -18.5 | ≤800 | 18.5 | 0-1450 | 300 | 1100 | 0.75 |
SFSY -22 | ≤1000 | 22 | 0-1450 | 350 | 1100 | 0.75 |
SFSY -30 | ≤1500 | 30 | 0-1450 | 400 | 1100 | 0.75 |
SFSY -37 | ≤2000 | 37 | 0-1450 | 400 | 1600 | 1.1 |
SFSY -45 | ≤2500 | 45 | 0-1450 | 450 | 1600 | 1.1 |
SFSY -55 | ≤3000 | 55 | 0-1450 | 500 | 1600 | 1.1 |
SFSY -75 | ≤4000 | 75 | 0-950 | 550 | 1800 | 2.2 |
SFSY -90 | ≤6000 | 90 | 0-950 | 600 | 1800 | 2.2 |
SFSY -110 | ≤8000 | 110 | 0-950 | 700 | 2100 | 3 |
SFSY -132 | ≤10000 | 132 | 0-950 | 800 | 2300 | 3 |
Remarks:
*The above listed Max. processing capacity is calculated as per water as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
*The above data and picture is subject to change without notice. The accurate parameter should be subject to the object
*Not all products are listed. For more, please contact with our sales engineer.
