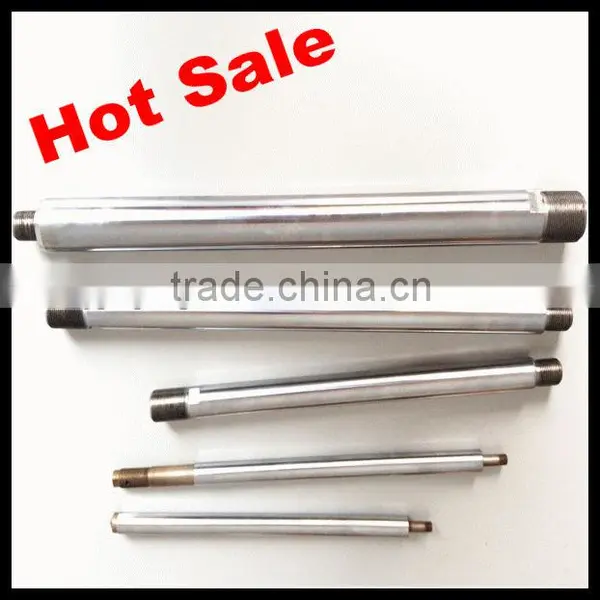

Chrome Hydraulic cylinder piston rod
Name |
Piston Rod |
Remarks |
Diameter |
Φ9-Φ200 |
|
Diameter tolerance |
F6-f9 |
Customized |
Thickness of chromium coating (μm) |
Δ=0.015-0.05 |
Customized |
Surface roughness |
Ra0.2-Ra0.4 |
|
Cylindricity (mm) |
≤0.01 |
|
Straightness (mm) |
≤0.15/1000 |
|
Surface hardness |
HB220-HB260 |
|
Neutral salt spray test (NSS) |
Class 9,120h |
Refer to GB6458-86 standard, equivalent to ISO3768-1976 |
Name |
piston rod |
Remarks |
Length |
100mm - 6 meter |
|
The thickness of Induction quenching hard layer (mm) |
δ≥0.1 |
Customized |
Thickness of hardening layer |
Re68-72 |
Material commonly used reference tables of hydraulic air cylinder piston rod :
Common material |
GB |
ISO |
UNI |
45 |
C45 |
||
20MnV6 |
|||
38MnV6 |
|||
38CrMoAl |
42CD4 |
||
20Cr |
|||
AISI304 |
Relative products
1. Hydraulic piston rod usually packed in Carton with pallets (or as per the customer’s requirements )
2. Hydraulic piston rod usually shipped by sea.
Jiaxing Jingyi Motorcycle And Automobile Fittings Factory has its specific technical personnel and more than 100 production equipments for turning, milling, shaping, grinding, stamping, welding, shearing and blending as well as various test equipments. It is a professional manufacturer of . Moreshock absorber components and metal parts of automobiles and motorcycles. It can make a mould by itself and has a good capability of intensive processingover, the enterprise accepts foreign trade orders for different machining. It has accumulated rich experience in the processing of axis parts of different sizes.In 2004, the enterprise passed ISO9001:2000 Quality System Authentication.
Equipments
Certificates
| Question | Answer |
| Q1: How about the quality? | A1: Our factory has history of almost 20 years, and our products are welcomed bu many countries. Besides,we inspected our 100% final products in order to reduce the rejection rate. Please rest assured about the quality. |
| Q2: How about the delivery time? | A2: It depends on the QTY. Usually we begin production as soon as we get your deposit thus to shorten the delivery time. |
| Q3: Can you offer samples? | A3: Yes of course, samples available. For some samples in stock, we can offer them for free. |
| Q4: What's the payment method? | A4: We accept T/T 70% in advance 30% of the balance before shippment. |
We provide production design, production and technical service, mould development and processing, etc. Small qty welcomed, large qty can be met, with great quality and high tolerance.
If you have any requirements, please feel free to let me know, I'd like to do something for you!
