putty paste complete manufacturing devices

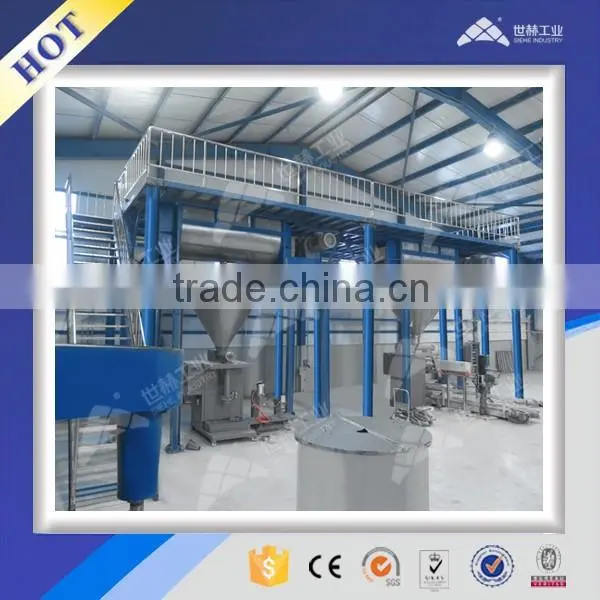

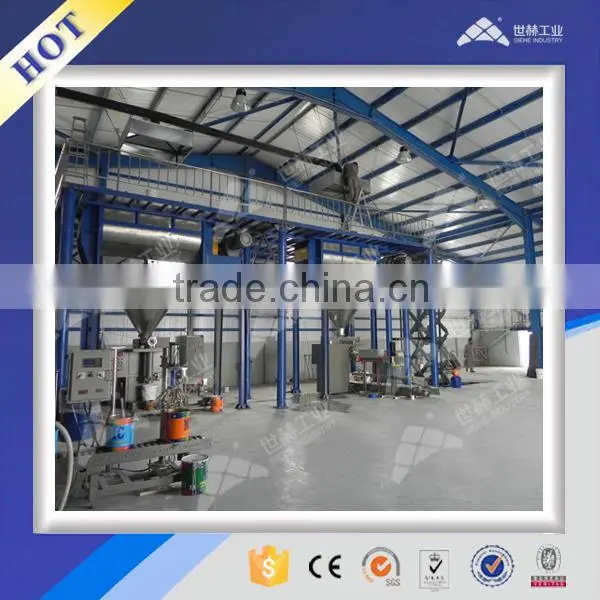

Putty is a kind of thick slurry coating, generally made of few binder, additives, made from a large number of fillers and pigments, which includes water base filler and oil base filler; It has many applications, such as batch of walls, interior walls, exterior walls, furniture, wood, metal etc. The different applications also determines the different production processes. The Siehe Industry for the optimal design of the production line can be according to the properties of puttymaterial features. Putty production complete sets is mainly composed of feeding system, blending mixing system (horizontal ribbon mixer, dual-shaft dispersing mixing tank, three-shaft multi-function mixing kettle), transmission system, measuring system, filling system, control system, dust removal systemetc. The production process is automatic, and reduce work intensity of the operators. It avoid human factors caused quality problem, and greatly improve the product quality and production efficiency.
Working Principle:
Putty production process is divided into the following parts: conveying, batching measuring, mixing, conveying, packing and so on;
Material conveying: liquid conveying pump and flow meter to realize conveying; Medium and small capacity of powder conveying by lifting, hoisting and artificial feeding; The huge production of powder with powder conveying system;
Transport: including the powder pneumatic conveyor, belt conveyor, elevator, screw conveyor, etc.; Liquid and emulsion delivery with centrifugal pump, gear pump, diaphragm pump, etc.;
Measuring: Liquid metering pump + flow meter to realize; Powder measuring conveyor + frequency converter + weighing system to realize;

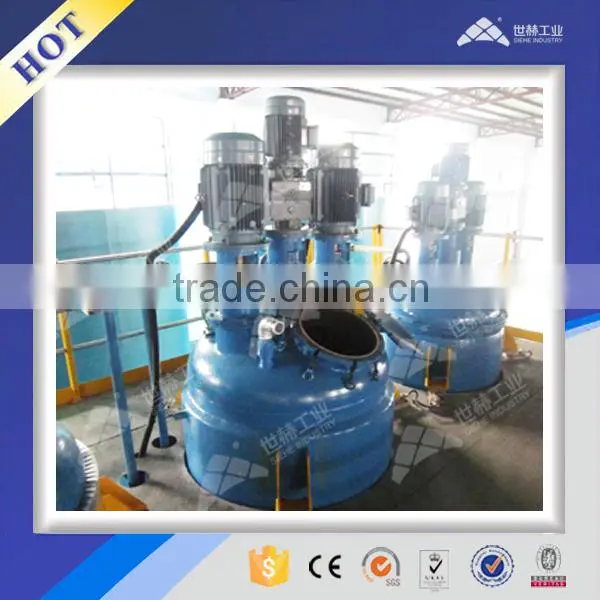

Mixing: vertical dual shaft mixing kettle, tri-shaft multi-function dispersing mixing kettle adopt low speedscraper mixing with high speed dispersing (medium speed screw impelling mixer) to spread material evenly. The characteristic is high shear, and it is more applicablefor oil based putty products ; Horizontal ribbon mixer through a specially designed two-way type ribbon blender, mixed the putty evenly, and applied more widely in water based putty;
Filling: Will packed the finished product measuring packaging according to the requirement, including semi-automatic and automatic filling machine
WHY US
| Wide application range |
Common putty mixing equipment has three kinds: Vertical dual-shaft mixing kettle, trishaft multifunction disperser and horizontal ribbon mixer; Siehe Industry will give best solution according o the material features, system capacity and factory condition. Common putty mixing equipment has three kinds: Vertical dual-shaft mixing kettle, trishaft multifunction disperser and horizontal ribbon mixer; Siehe Industry will give best solution according o the material features, system capacity and factory condition. |
Automatic feeding |
Be bored with child of the main raw material for a large number of filler and right amount have been, additives, pigments; The world Hector industrial design putty production of complete sets of equipment to raw materials using automated feed way; Have been with the method of pump + flowmeter, powder with the method of weighing ingredients, greatly reduce the labor intensity, improve production efficiency. |
Stable system |
Choose mettler Toledo products for weighing system. flowmeter adopted E + H/Yokogawa products, the main body parts adopt international famous brand to ensure the accuracy and stability of the production system. |
