Why more and more people are willing to invest this new project?
As we all know, rubbish (such as wate tire, waste rubber etc.) are increasing every day, at the same time, oil resources are decreasing every day
------ How to deal with the problem?
We use high technology (waste rubber regeneration line) recycling waste to resourses.
Hence how to dispose it become more and more important. The production line we researched process waste tires and waste rubber into new rubber material to satisfy people by physical ways, so it is friendly environment, there is no pollution. besides, the waste rubber do not through anywhere and protect the environment.
Therefore it is a new project which is to " turn the waste into wealth".

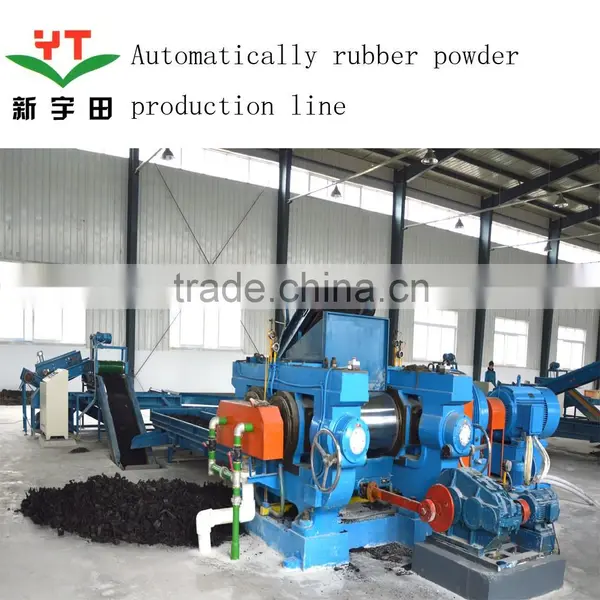

Scrap tire rubber powder making machinery
Scrap tire rubber powder making machinery consist of tire cutting machines and tire crusher unit. It process car tires,truck tires and waste rubber into different sizes of crumb rubber by screen.
The flow chart as below:
Specification of each machine in above flow chart as below:
1.The machine is used for cutting the used tires into tread and beads.
2. such cutting procedure is first part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QKF1150 | 2.2 | 750-1200 | 380v 50Hz | 400 | 1500*1150*1480 | 2ton/hour |
1.The function of the machine is to cut tread and sidewall into strips.
2.Such cutting procedure is second part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QT380 | 4 | tire tread | 380v 50Hz | 900 | 1300*750*1580 | 1ton/hour |
1.The machine is used for cutting tire strips into block which are 30-50mm rubber chips.
2.Such cutting procedure is third part of rubber cuttting line.
Main parameter:
| model | motor(kw) | processing range(mm) | equipped with power | dimension(mm0 | production | weight(kg0 |
| QK200 | 7.5 | rubber tire strips | 380v 50Hz | 800*810*1070 | 1ton/h | 600 |
tire crusher unit
The tire crusher unit is one mainly machine in the scrap tire rubber powder making machinery. and its function is to crush tire blocks into different sizes of rubber powder, and the steel wire and fiber completely separated from the final mixing rubber powder. Such machine consist s of four parts: Crusher, main vibrating screen, main conveyor,magnetic separation system.
Main parameters of Crusher:
Type | diameter of rollers *length(mm) | speed ratio of rollers | the biggest distance of two rollers (mm) | numbers of revolutions | motor power(kw) | dimensions(mm) | weight |
| XKP-400 | 400*600 | 1:1.38 | 10 | 13.65 | 45 | 4210*1850*1925 | 7500kg |
| XKP-450 | 450*760 | 1:1.38 | 10 | 16.57 | 55 | 4550*1970*1860 | 11000kg |
| XKP-560 | 560*800 | 1:1.38 | 15 | 15.5 | 75 | 5620*2260*1900 | 19000kg |

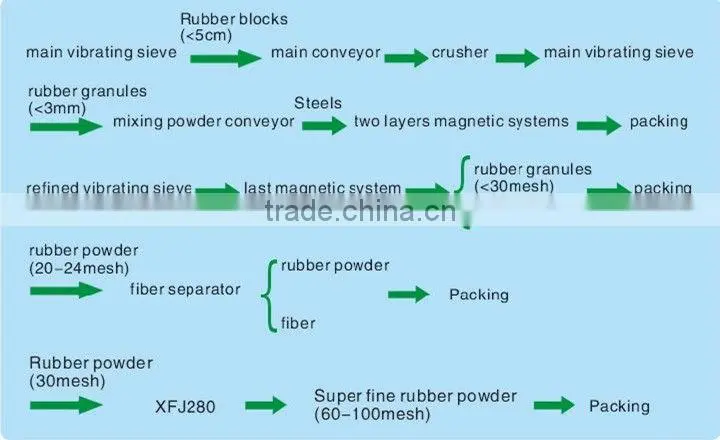

The flow chart as below:
The final products:
Scrap tire rubber powder making is mainly to recycle tire into rubber powder, and it applies to reclaimed rubber industry.
About project
Raw material: waste car tires, truck tires,waste tubber ans waste soles.
Final product: different sizes of rubber granules by crushing recycled, such as 8mesh,16mesh,24mesh,30mesh,40mesh,60mesh etc.
Labor required: 4-7 workers
Space required:110-300m2
Application of final products(rubber powder) as blow:
1. Rubber products(safety cushion,road islation barrier, rubber tube,rubber sheet,rubber sole)
2. Auto industry(tire,vibration absorbing material,shock absorber)
3. Athletic sports ground(runway,rubber title,court)
4. Building material(rubber tile,rubber floor brick,waterproof)
5. Road engineering and bitumious road surfacin(to be mixed with asphalt,be used for surfacing roads or underground railway)
Loading container in our factory
Photos with our clients
Others:
Delivery time
within 7days after we get your 30% down payment.
Terms of payment
30%of the total contract value to be paid by T/T as down payment, and the balance 70% should be paid by T/T before delivery the goods
Transportation
2*40" container for whole line.
Warranty period and after sales
one year. In the warranty period, If there are some troubles with the machines, The manufacturer should send engineers to repair or replace the parts freely(expect for easy broken parts ,like rollers and knife/blade).but you need pay the come and back tickets
About after sales we have whole life repair this machine , but you need pay the cost (ticket ,hotel ,food )
Technology for installation
According to the demand of buyer, Our factory sends the engineers to guide to install and debug. But the charge in the buyer’s site and the traveling should be paid by buyer (including the cost of living, the round-trip ticket etc.
