Specifications
Rubber extruder machine for rubber powdermotion constantly
2.drawing draft provided
3.more safety and stable
About us
We are professional manufacturer of waste tire cutting machines and tire crusher to crumb rubber in Xinxiang city,China. our machines mainly process car tires,truck tires into different sizes rubber granules, such as 8mesh,16mesh,24mesh,40mesh,60mesh etc.
and we have exported our machines to India,UZ,Ukraine,Qatar,Britain and Brazil and get a high reputation from them.
Waste rubber extruder machine for rubber powder
Rubber extruder machine for rubber powder consist of tire cutting machines and tire crusher unit. It process car tires,truck tires and waste rubber into different sizes of crumb rubber by screen.
Specification of each machine in above flow chart as below:

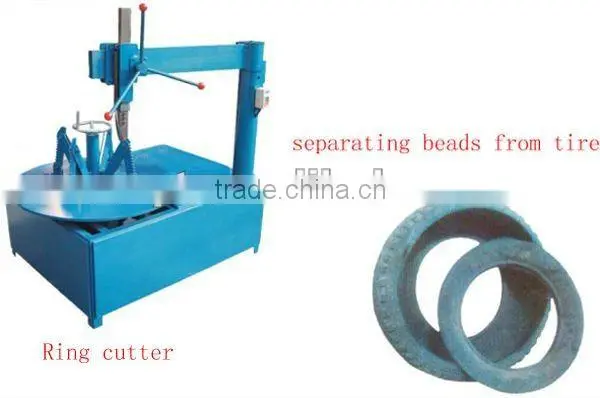

Ring cutter is the first of rubber extruder machine for rubber powder.
1.The machine is used for cutting the used tires into tread and beads.
2. such cutting procedure is first part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QKF1150 | 2.2 | 750-1200 | 380v 50Hz | 400 | 1500*1150*1480 | 2ton/hour |

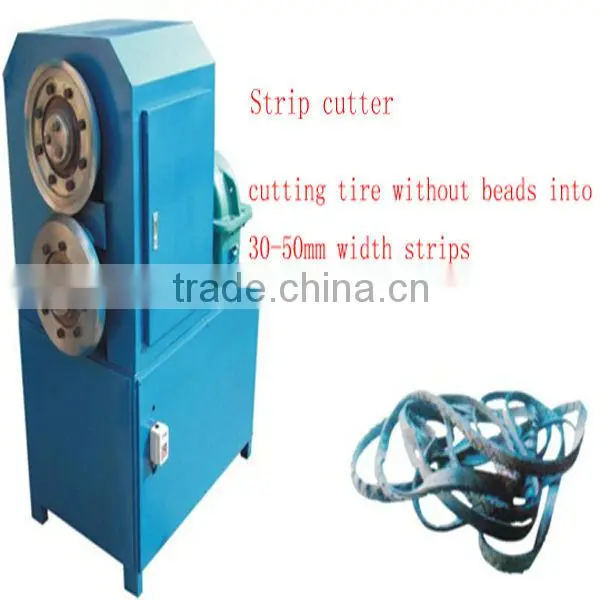

Strip cutter is the second of rubber extruder machine for rubber powder.
1.The function of the machine is to cut tread and sidewall into strips.
2.Such cutting procedure is second part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QT380 | 4 | tire tread | 380v 50Hz | 900 | 1300*750*1580 | 1ton/hour |

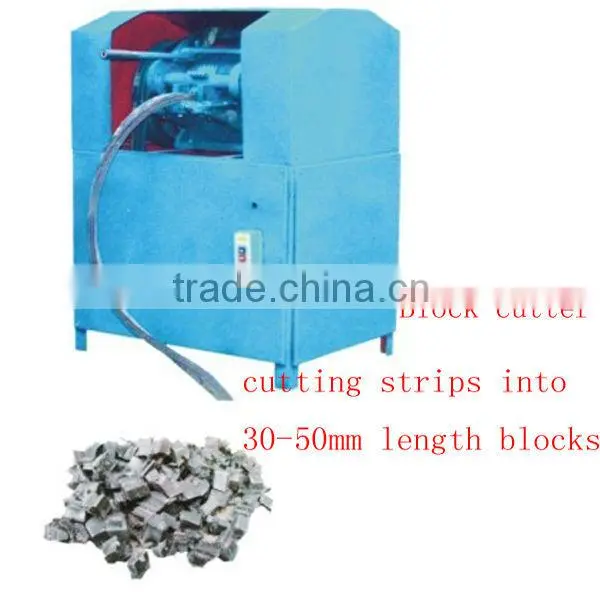

Block cutter is the third of rubber extruder machine for rubber powder.
1.The machine is used for cutting tire strips into block which are 30-50mm rubber chips.
2.Such cutting procedure is third part of rubber cuttting line.
Main parameter:
| model | motor(kw) | processing range(mm) | equipped with power | dimension(mm0 | production | weight(kg0 |
| QK200 | 7.5 | rubber tire strips | 380v 50Hz | 800*810*1070 | 1ton/h | 600 |

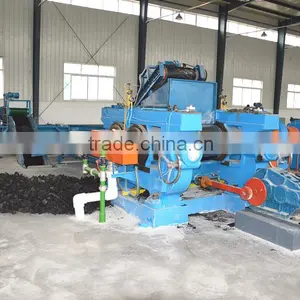

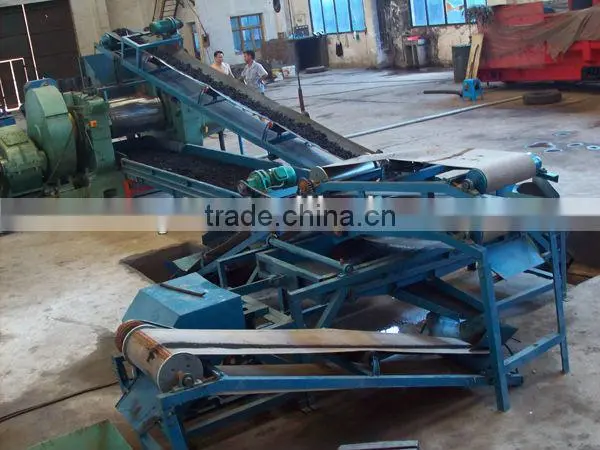

tire crusher unit
The tire crusher unit is one mainly machine in the rubber extruder machine for rubber powder. and its function is to crush tire blocks into different sizes of rubber powder, and the steel wire and fiber completely separated from the final mixing rubber powder. Such machine consist s of four parts: Crusher, main vibrating screen, main conveyor,magnetic separation system.
Main parameters of Crusher:
Type |
diameter of rollers *length(mm) |
speed ratio of rollers |
the biggest distance of two rollers (mm) |
numbers of revolutions |
motor power(kw) |
dimensions(mm) |
weight |
| XKP-400 |
400*600 |
1:1.38 |
10 | 13.65 |
45 |
4210*1850*1925 |
7500kg |
| XKP-450 |
450*760 |
1:1.38 |
10 | 16.57 |
55 | 4550*1970*1860 |
11000kg |
| XKP-560 |
560*800 |
1:1.38 |
15 | 15.5 |
75 | 5620*2260*1900 |
19000kg |

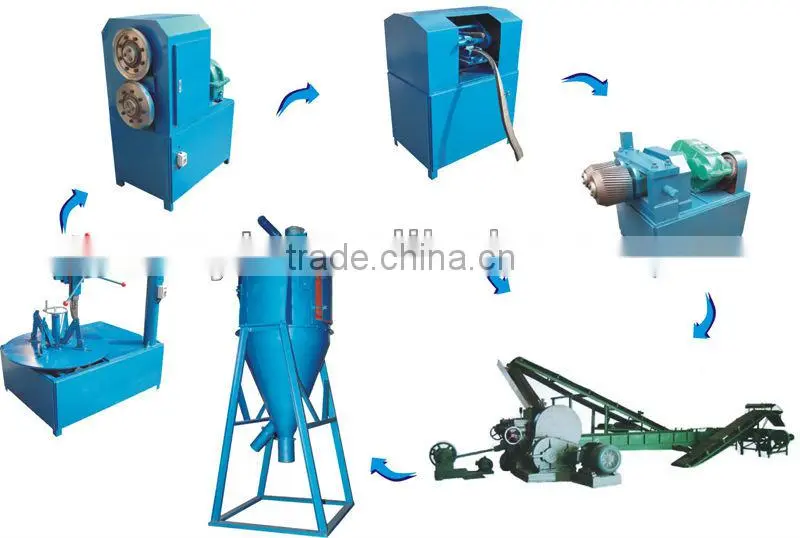

The flow chart as below:

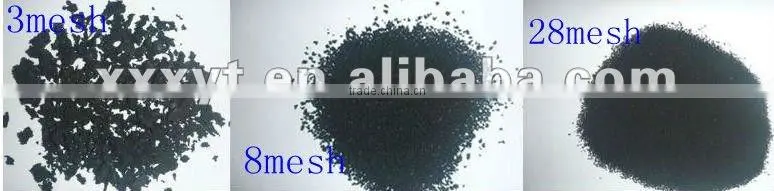

The final products:
Rubber extruder machine for rubber powder line is mainly to recycle tire into rubber powder industry.
About project
Raw material: waste car tires, truck tires,waste tubber ans waste soles.
Final product: different sizes of rubber granules by crushing recycled, such as 8mesh,16mesh,24mesh,30mesh,40mesh,60mesh etc.
Labor required: 4-7 workers
Space required:110-300m2

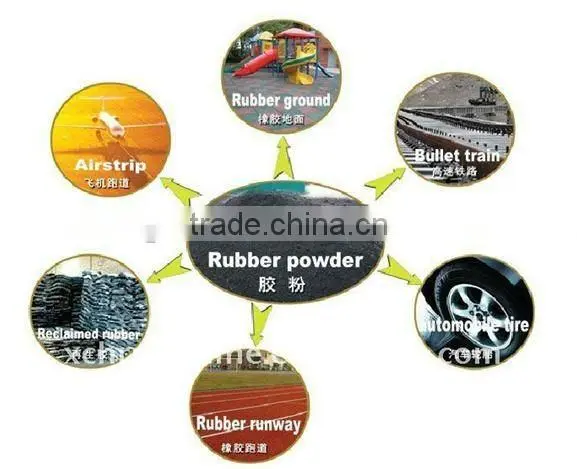

Application of final products(rubber powder) as blow:
1. Rubber products(safety cushion,road islation barrier, rubber tube,rubber sheet,rubber sole)
2. Auto industry(tire,vibration absorbing material,shock absorber)
3. Athletic sports ground(runway,rubber title,court)
4. Building material(rubber tile,rubber floor brick,waterproof)
5. Road engineering and bitumious road surfacin(to be mixed with asphalt,be used for surfacing roads or underground railway)
Loading container in our factory
Photos with our clients
Others:
Delivery time
within 7days after we get your 30% down payment.
Terms of payment
30%of the total contract value to be paid by T/T as down payment, and the balance 70% should be paid by T/T before delivery the goods
Transportation
2*40" container for whole line.
Warranty period and after sales
one year. In the warranty period, If there are some troubles with the machines, The manufacturer should send engineers to repair or replace the parts freely(expect for easy broken parts ,like rollers and knife/blade).but you need pay the come and back tickets
About after sales we have whole life repair this machine , but you need pay the cost (ticket ,hotel ,food )
Technology for installation
According to the demand of buyer, Our factory sends the engineers to guide to install and debug. But the charge in the buyer’s site and the traveling should be paid by buyer (including the cost of living, the round-trip ticket etc.
