---Solutions to doubt
would you like to crush waste tire?
would you choose XKPseries crusher?maybe you find out its disadvanges,like poor stability,too much noise?
now most profitable waste tire recycling rubber powder machine has come out!
---Brief introduction
XKPseries tire crusher rubber powder is to crush rubber blocks into rubber granule.3 models can be choosed for producing different capacity.
structure:base,front and rear rollers,gears,reducer,motor,safety device,electric cabinet,cooling water device,clearance adjust device,transmission device,safety brake.
Type |
diameter of rollers *length(mm) |
speed ratio of rollers |
max distance between two rollers (mm) |
numbers of revolutions |
motor power(kw) |
dimensions (mm) | weight (kg) | capacity(kg/h) |
XKP400 |
400*600 |
1:1.38 | 10 |
13.65 |
45 |
4210*1850*1925 | 7500 | 120-150 |
XKP450 |
450*760 |
1:1.38 | 10 |
16.57 | 55 |
4550*1970*1860 | 11000 | 200-300 |
XKP560 |
560*800 |
1:1.38 | 15 |
15.5 | 75 |
5620*2260*1900 | 19000 | 300-500 |
---Improvement details
1.gearing reducer has been replaced by hardened reducer,gear ratio has been raised that lower noise to the environment.
2.motor power can be rasied to 110kw.
3.material of rollers---cast iron and cast steel can be choosed based on client'request.
4.smooth or groove rollers can be choosed based on need.
----How to grind wearing part like rollers?
model | XM250 |
motor power(kw) | 1.5 |
diameter of grinding wheel(mm) | Φ250 |
size(mm) | 1460*500*800 |
apply model | XKP400/450/560 |
--- Auxiliary equipment for XKP series tire crusher
1.ring cutter,strips cutter,blocks cutter,bead wire separator(alternative)
output is 30-50mm rubber blocks, 1 labor needed.
capacity:10ton/8hours
New GF240A bead wire separator can process rings(sidewalls) and bead,bead wire can be separated completely automatically
capaicty:30pieces tire/h
2.shaking screen,wire magnetic conveyors,conveyor
(1)shaking screen:stainless steel bar web or stainless steel circle web can be choosed if raw material is radial tire or nylon tire.
(2)steel magnetic separate conveyors:strong magnetic separate power to remove steel,ratio can reach 95%.
(3)conveyor:complete PVC annular conveyor wihout any joint.

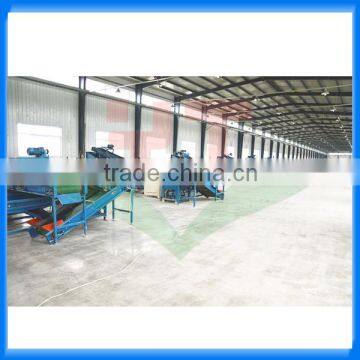

---Successful case
(16sets XKP560 tire cusher for producing rubber powder 50000ton per year)
---About Xinyutian factory
Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd locates in the important industry area of Yubei.Our enterprise is dedicated to research and develop tire recycling rubber powder plant.our machines have been sold all over the world,what is more,we got great feedback from our customers in Asia,Central Asia,North Europe and South America
---Advantages of Xinyutian
1.special manufacturer that has professional producing team and technical support
level sale teams to communicate with clients by email,telephone,face to face.
fessional explanation to clients about machines(techonogy,apply,using guide and so on)

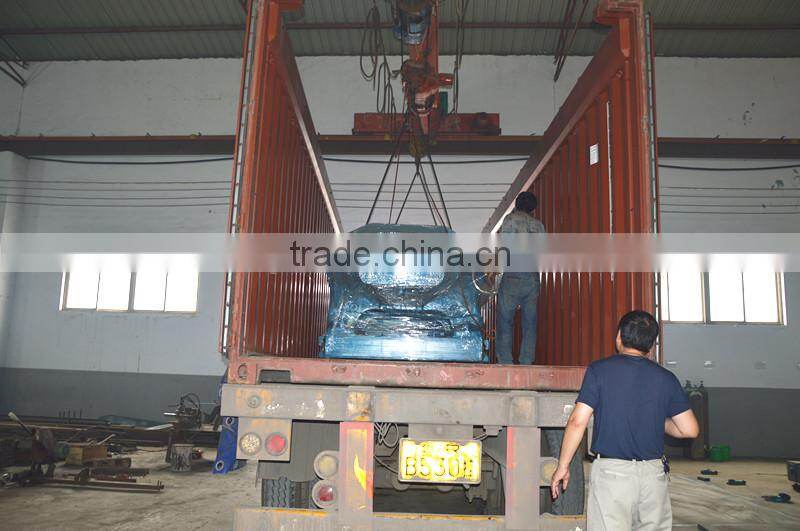

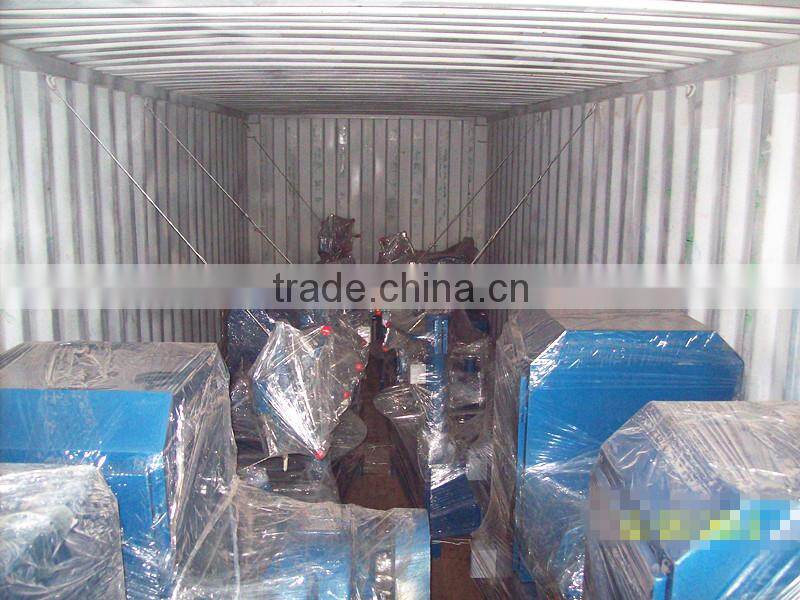

4.best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur.
5.reasonable price
6.flexible delievery time
7.more than 15 years of experience of exporting ability
Welcome inquiry from overseas friends,Contact us at any time!
Tel:+86(0)373 3033288
Fax: +86(0)373 3692059
mobile:+86 15936531984
skype:wjangelabaibai
Address:Xinpu Road,Xinxiang City,Henan Pro.China
