Auto Vet Hematology Analyzer

Name: Auto Vet Hematology Analyzer
Brand: Foinoe
SKU: 100429867

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Blood Analysis System

Brand Name:

Foinoe

Model Number:

PE-6800v

Nanjing Foinoe Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Nanjing

Delivery Detail:

Delivery time depends on order quantity.

Type Blood Analysis System

Brand Name Foinoe

Model Number PE-6800v

Place of Origin Jiangsu, China

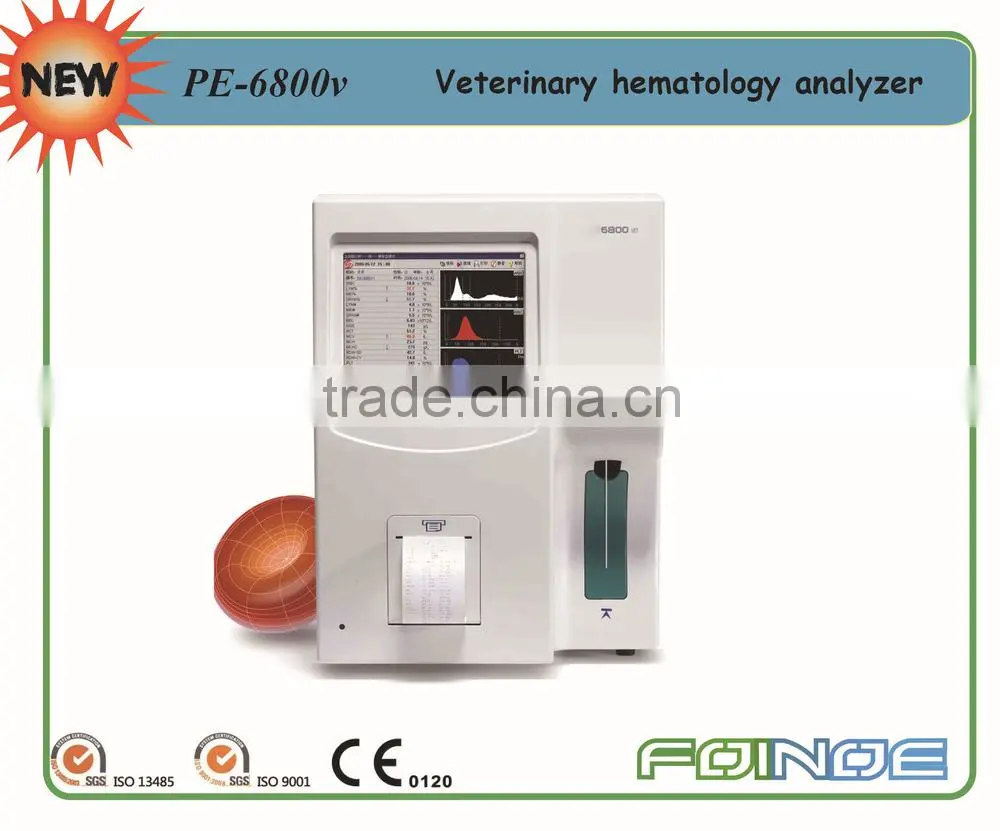

Auto vet hematology analyzer

Features

How it works: electrical impedance method, methemoglobin cyanide and cyanide SFT Law Ac

Detection parameters: WBC third group, 23 parameters (including WBC, RBC, PLT color histogram)

Standard dosage: 9.6μl (whole blood mode) 20μl (pre-dilution mode)

Detection rate: ≥ 40 samples / hour, for 24 hours a day with an automatic sleep and wake up function

The result is stored: 12,000 copies host automatically stores all the parameters of samples including

histogram, historical data query management more convenient

Animal species: dogs, cats, horses, cattle, sheep, monkey, rat, and four kinds of other eight

user-defined mode

QC way: X-B, L-J, X, SD, CV

Standard: automatic calibration and manual calibration

Display: large-screen color LCD, 640X480 resolution

Technical Specification

Principle:	Electrical resistance for counting,cyanide tree method for hemoglobin
Parameters:	3-part differential of WBC ;20 parmetes+3 color histograms (WBC/RBC/PLT)
Sample Consumption:	Venous Mode :9.6µL,Capillary Mode:9.6µL,Pre-diluted Mode:20µL
Working Mode:	Double passage counting detection+independent HGB measurement system;24 hours with auto standby
Operation Mode:	Windows operation system with keyboard&mouse input
Throughput:	35 samples/hour
Storage:	12,000 sample results inclusive of the histograms
QC Mode:	L-J,X-B,SD,CV,QC histogram
Cross Contamination Ratio:	WBC/RBC/HGB<0.5%,PLT<1%
Performance:	Parameter Repeatability (CV%)	Linear Range
	WBC≤2.5%	0.00-99.9x10/L
	RBC≤2.0%	0.00-9.99x10/L
	HGB≤1.5%	0-300g/L
	MCV≤0.4%	40-150fL
	PLT≤4.0%	0-999x10/L
Display:	8.4″LCD,resolution:640×480
Reference Value:	Baby, Kid, Woman, Man, Normal, and, Customization
Interface:	2×USB, 1×parallel(for external priter),1×VGA(for external monitor),2×PS/2,2×RS-232(for network)
Printer:	Built-in thermal recorder ,optional external printer,eight report formats
Environment Requirement:	Temperature:15℃~35℃;Humidity:10%-90%
Powersupply:	AC 100-240V 50/60Hz
