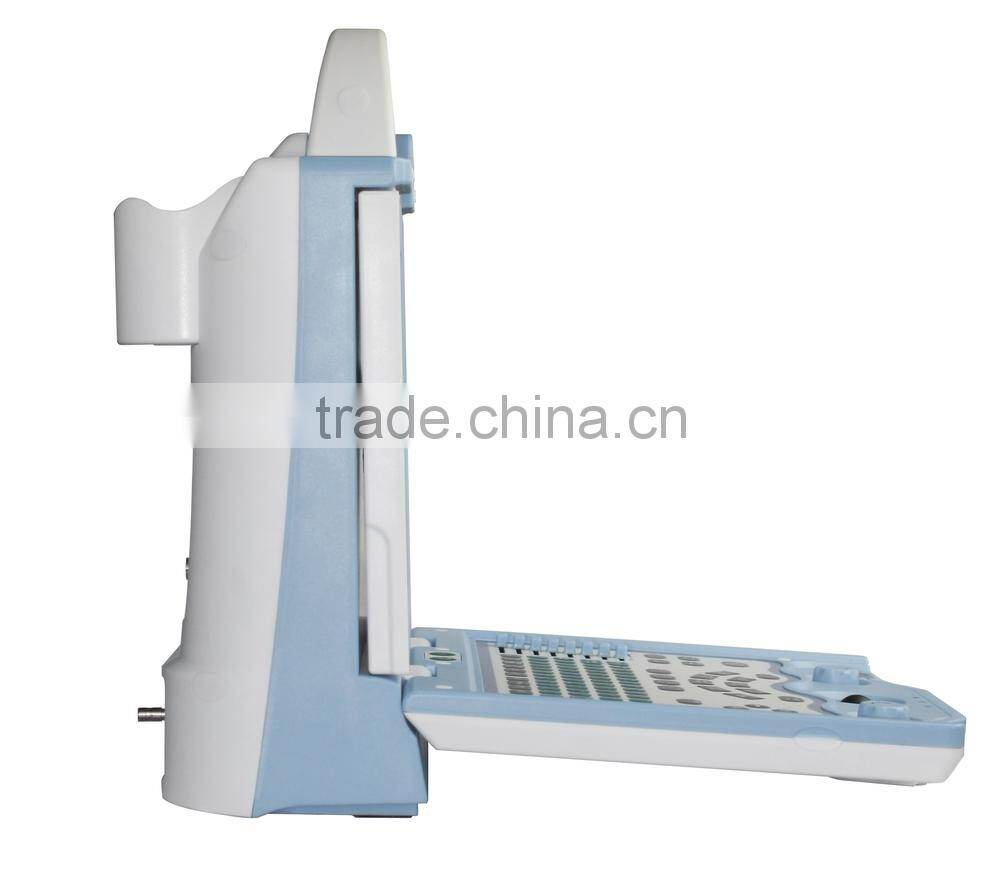

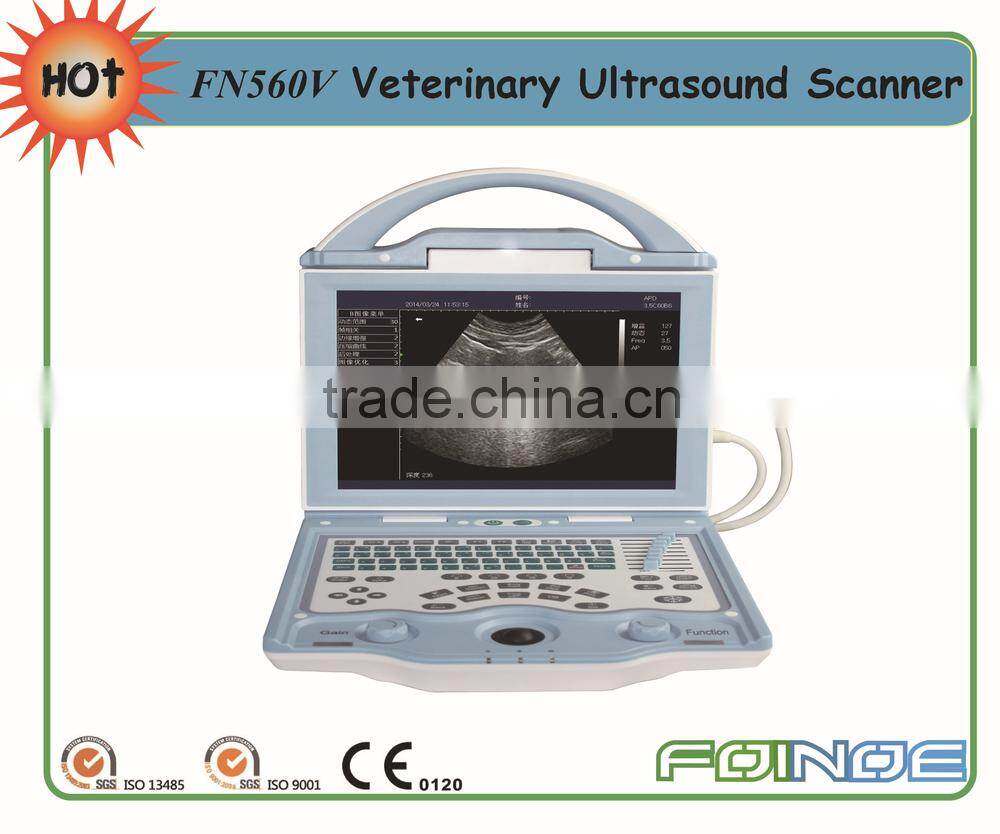

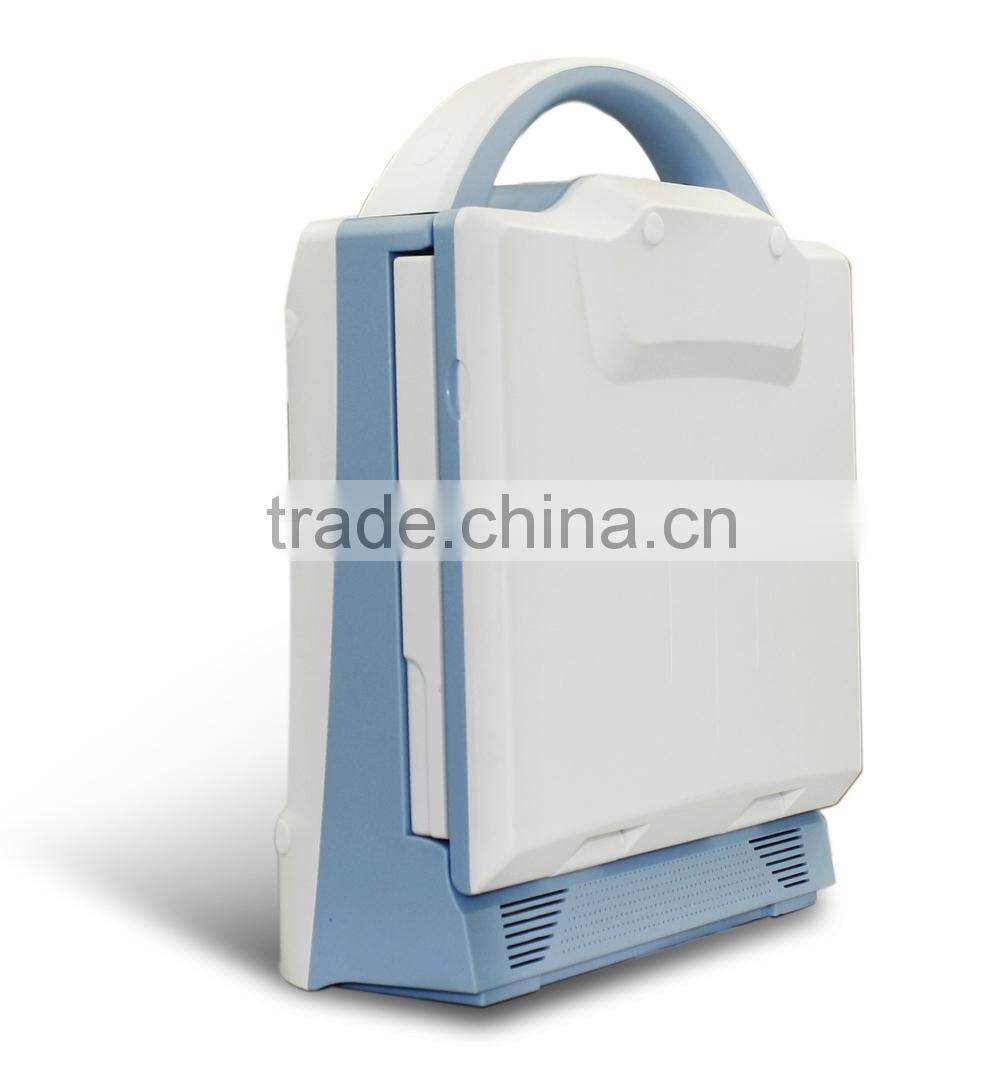

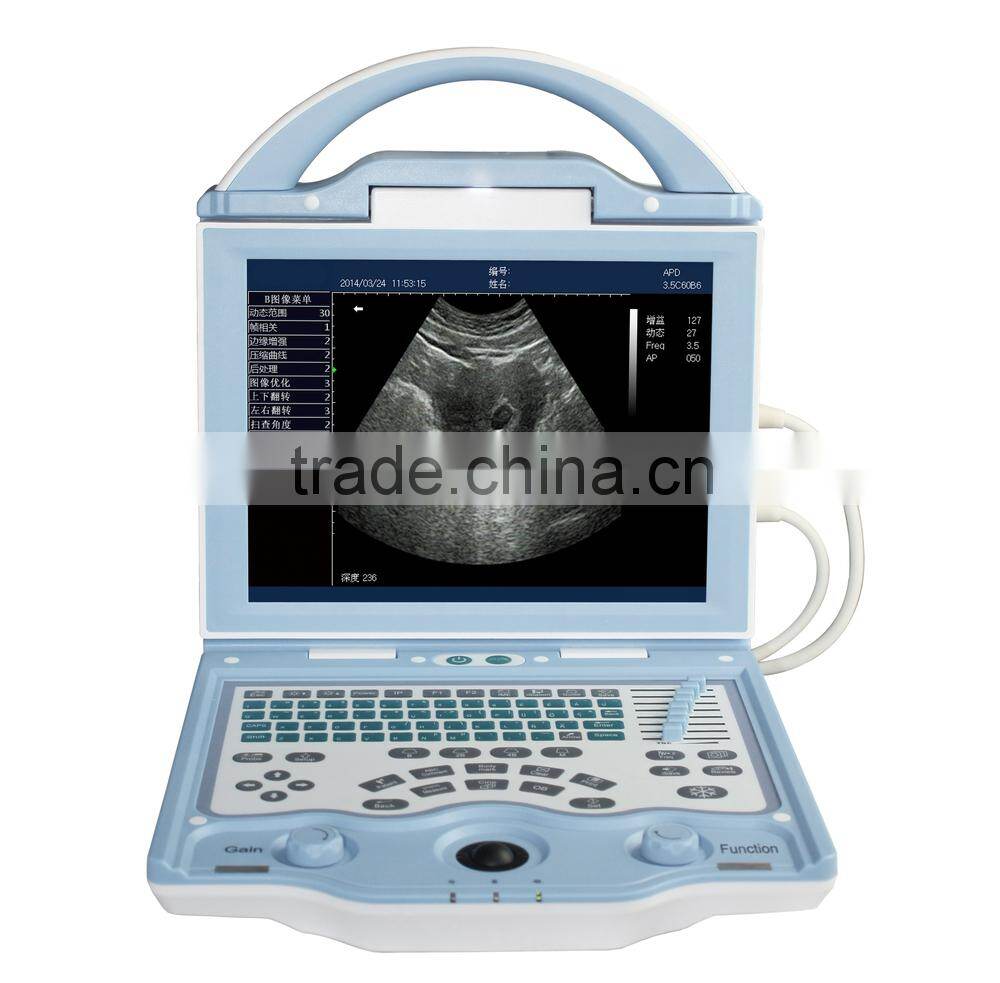

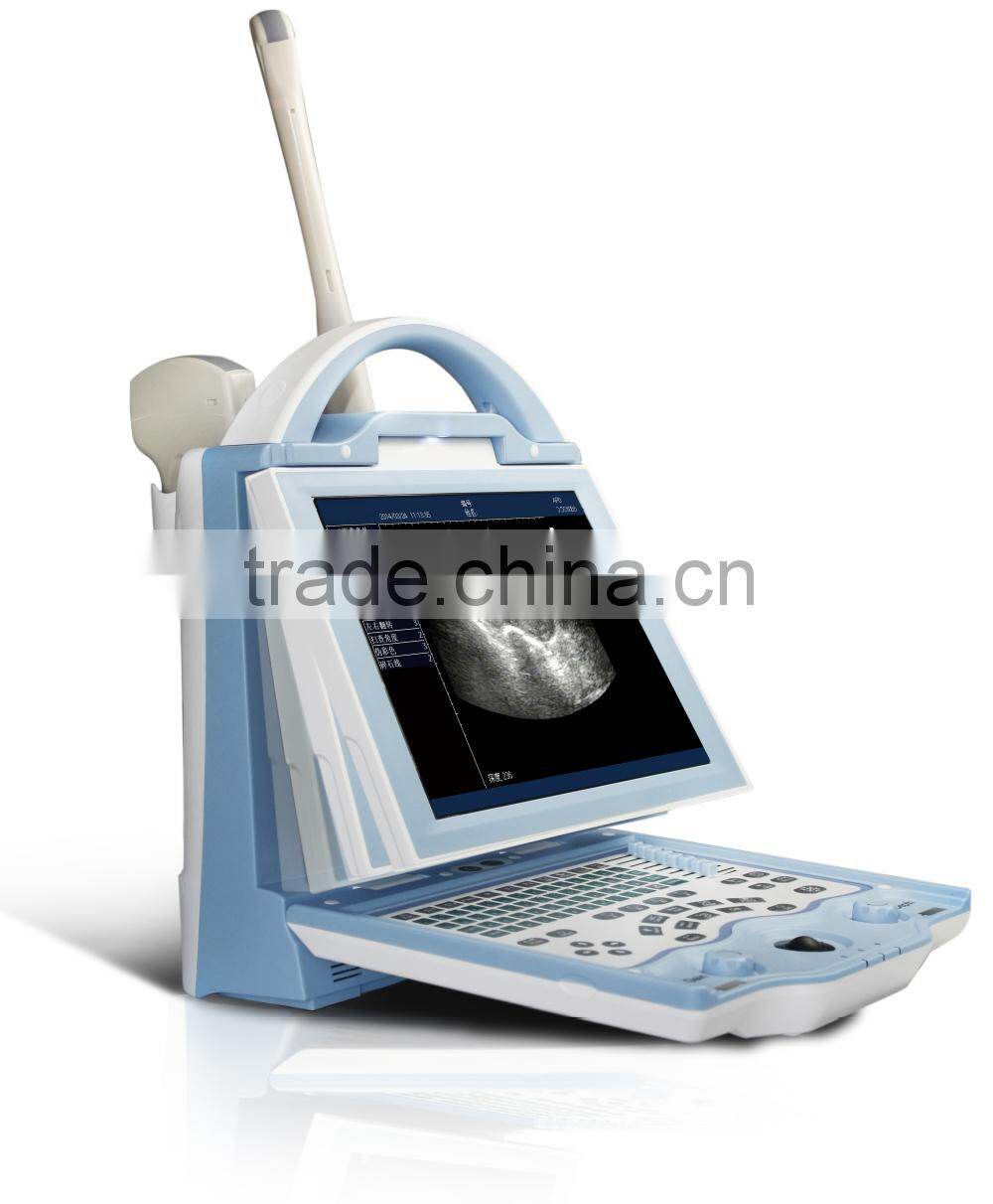

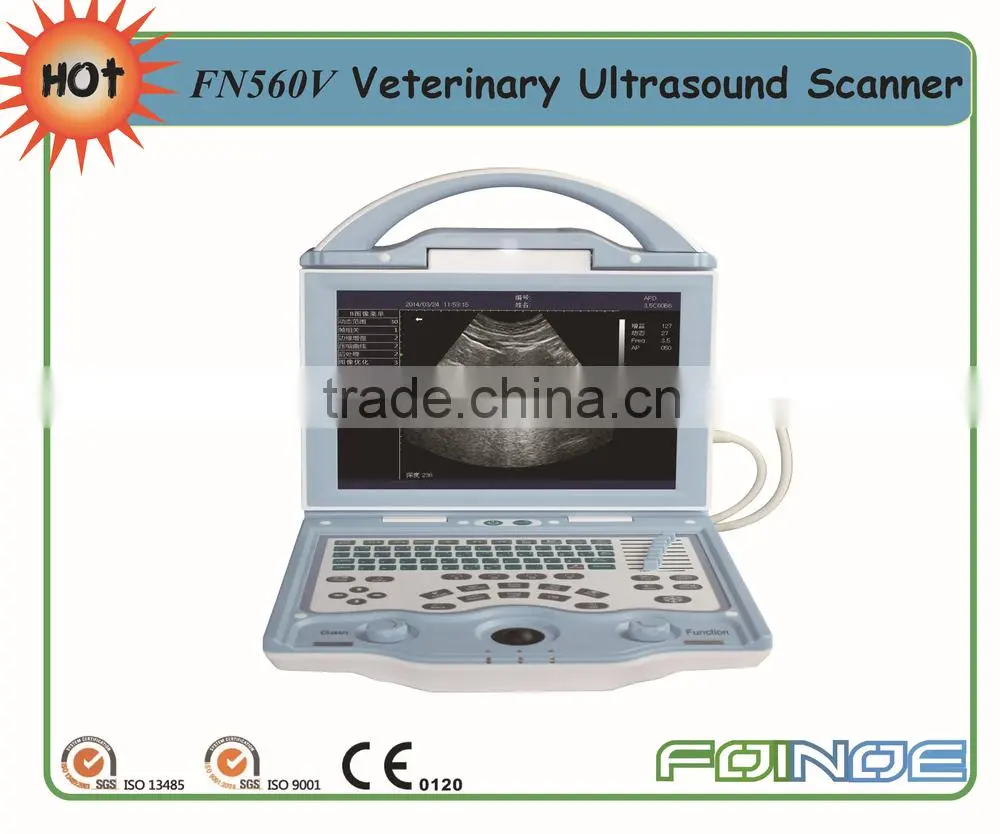

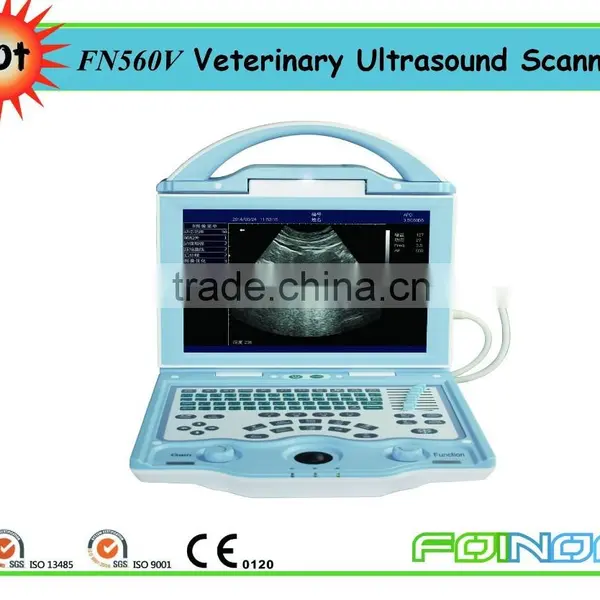

Model:FN560V Pregnancy sheep ultrasound scanner
Tech Parameters:
l 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
l Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound
hardware system, all make the unit more stable.
l Menu operation system, with different languages according to requirement including Spanish,
English, French, Russian and Portuguese;
l Two probe sockets, auto-identify different optional probe;
l Body marks:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body
marks indicating probe position;
l Display mode:B,2B,4B ,B/M,M ;
l Adjustable depth: 10 grades, max depth to 236mm;
l Gain:0~127dB;
l Contrast:27~90dB;
l Gray scale:256;
l 8 steps intelligent TGC;
l 8 kinds pseudo colors;
l Image storage: 4G hard disk to permanently store about 5000 frames images;
l Cine loop:256 frames;
l Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);
l the gravel software package with real-time position line measurement
l Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
l Cardio measurement:Depth, slope, heart rate, cycle;
l OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age
birth;
l Other measurement: pig’s meat factor measurement;
l OB report function;
l One-key store: concise and practical;
l One-key review:fast, practical image review function;
l One-key Print;
l One-key Transfer the current frozen image to net workstation to complete its image text report and
print directly;
l Concise and practical, easy operation. The system includes network workstation to complete
data & report management (You don’t need to invest more to buy extra ultrasound working
station);
l Unique One-key-light keyboard function for black room use;
l Display brightness adjustable;
l Dual TV output: PAL/NTSC, can connect video printer when necessary;
l Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz;
l Power supply adaptor output:DC12.8V 3.0A;
l Main unit weight:4.5kg(without accessories);
l Main unit dimension:256×150×326mm(L×W×H);
Main basic configuration:
Main unit |
1pc |
6.5MHz linear rectal probe |
1pc |
Power supply adaptor |
1pc |
Reticle |
1pc |
Two probe sockets |
Optional parts:
l Optional probes
4.0MHz convex rectal probe
6.5MHz micro-convex probe for small animals
3.5MHz linear probe for eye muscle
3.5MHz convex probe
7.5MHz linear probe
l Battery charger
l Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
l trolley
l Video printer(UP-897MD)
l Ethernet Switch
We have other similar models for you to choose !!!
