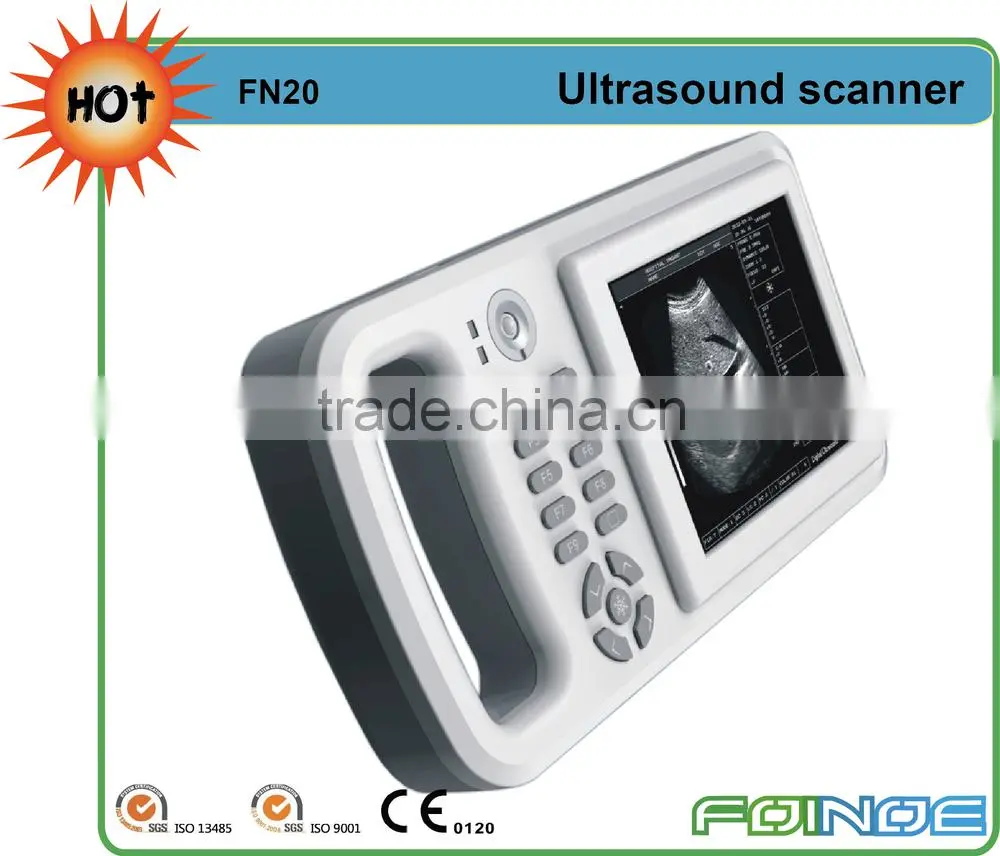

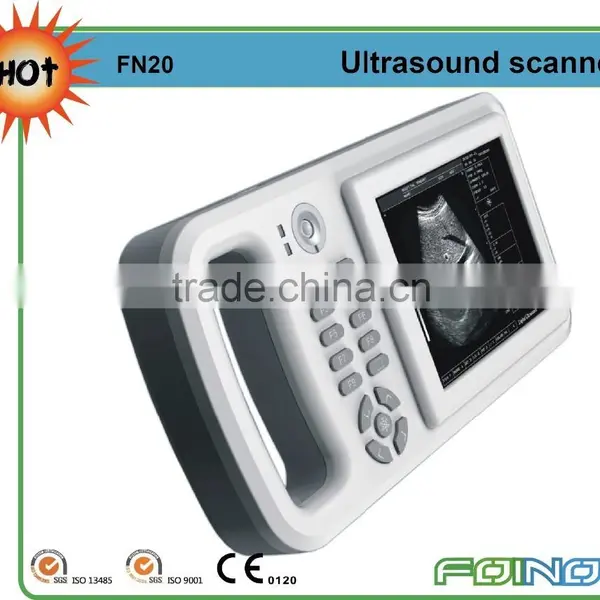

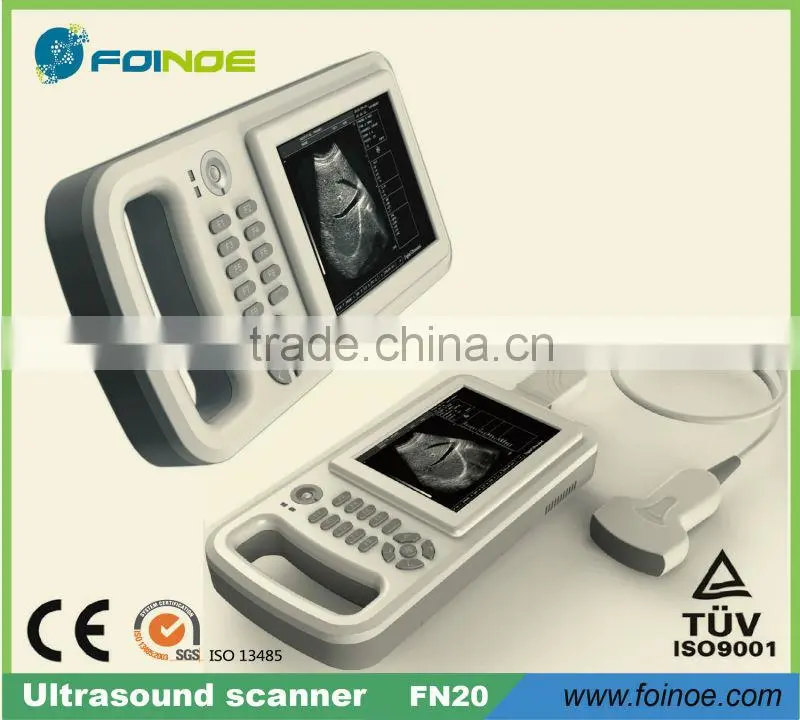

FN20 hot seller veterinary ultrasonic equipment device
Technical data
Display size: 6.5 inch LED displayer
Display modes: B, B/B, 4B, B+M, M;
Image multiplying factor:
3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes)
×0.8, ×1.0 (display penetration depth);
E-zoom: magnify 2 times of real time image
Dynamic range: 0~120dB adjustable.
Focus position: dynamic electron focusing.
Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
Gray scale: 256 levels
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe.
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc.
Annotation function: hospital name, patient’s name, age and gender;
Kinds of body marks (with probe’s position);
Full-screen character annotation;
Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, up and down flip.
Capacity cine loop: real time display 256 consecutive images which are memorized successively
Image playback: series playback or check one by one
Permanent storage: 128 images
Output interface: USB port.
We have other models for you to choose !!!
