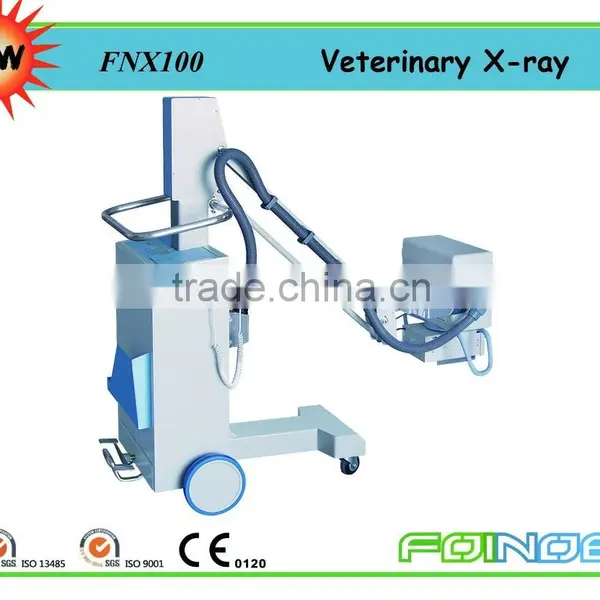

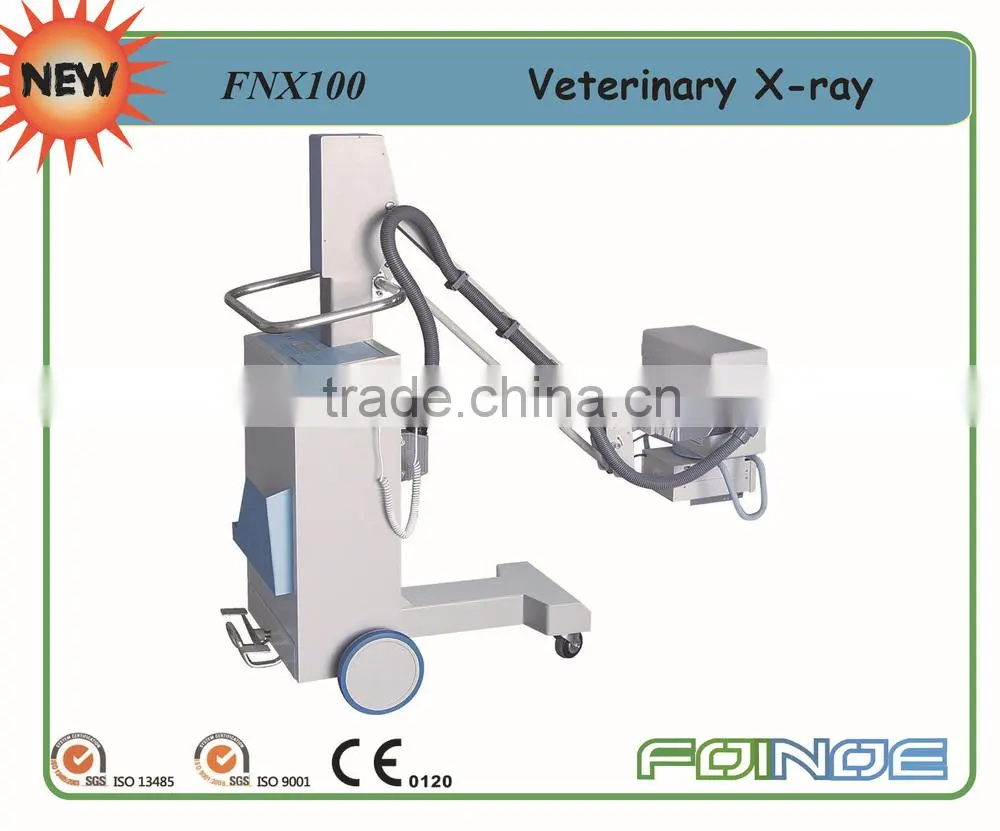

Model:FNX100 Veterinary Use Mobile X-ray Machine

Model:FNX100 Veterinary Use Mobile X-ray Machine thumbnail-1
Model:FNX100 Veterinary Use Mobile X-ray Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Properties:
Other, Medical X-ray Equipments & Accessories
Brand Name:
Foinoe
Model Number:
FNX100
Contact Supplier Request Quote Chat Now
Nanjing Foinoe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nanjijng
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties Other, Medical X-ray Equipments & Accessories
Brand Name Foinoe
Model Number FNX100
Place of Origin Jiangsu, China

Model:FNX100 Veterinary use mobile x-ray machine

Model:FNX100 Veterinary use mobile x-ray machine

ⅠSpecifications

Power Output

 2.5KW

Frequency

25KHz

X-ray Tube

Fixed anode
 Focus  1.5 (X-ray tube for high frequency)

Tube Voltage

40~100KV   (interval 1KV)

Tube Current

40~49KV     50mA      1~160 mAs
50~59KV     42mA      1~160 mAs
60~69KV     36mA      1~140 mAs
70~79KV     31mA      1~125 mAs
80~89KV     28mA      1~100 mAs
90~100KV    25mA      1~80 mAs

mAs

1.0~160 mAs (45steps)

Power Supply

220V±10%  50Hz   inner-resistance≤1.0Ω

Operation Method

Wire/Wireless control , 20 meters microwave remote control exposure

( Advantage)It is different from infrared remote control exposure, does not

suffer any obstaclesin the way



Ⅱ Standard configuration and Features

A.Standard configuration :

1. Combined high-frequency high-voltage X-ray generator and

    high-frequency inverter power supply  1 set

2. Mobile X-ray camera mainframe     1 set

3. Mobile X-ray Camera Control System    1 set

4. With a light source symmetrical adjustable speed limiter  1 set

5. remote control 1 set

6. Common Parts    Several

7. Application

The machine is Combined  X-ray photography of medical diagnostic equipment ,

application for wards, emergency rooms, operating rooms, ICU, etc. on the human

body the head, limbs, chest, waist and abdomen and many other parts to

photography mobile diagnostic equipment.

B.Features:

1. Structure using ergonomic design, compact appearance, convenient operation

2.With high frenquency inverter to emit high quality X ray and low dose on skin, and

    ensure excellent definition and contrast of pictures

3.With techniques of KV analog closed loop control ,mAs digital closed loop control and

    micro-processing real-time control to ensure precision and repeatability of the dose

4.With kv, mas two button adjustment ,LCD display ,multifunction of safety guard

5.With 50 preset exposure programs ,and can be modified and stored by the user for

   convenient operation

6.With a high-quality knockdown X-ray generator to reduce irradiation,

   which is much safer to environment and operator

7.With a symmetrical beam applicator to adjust the X ray field and a collimator lamp to

   locate the field to ensure accurate radiograph.

C. Options : FNX152 Table for Mobile X ray Equipment and Upright Bucky Stand

a.FNX152 Table ( Special for High Frequency Mobile X ray machine )

Model:FNX100 Veterinary use mobile x-ray machine

 The size of FNX152 is 2000mm×700mm×500mm, cassette movement range is 1680mm

 Low bed to facilitate the patient up and down, Longitudinal center of the bed frame

with the cassette center line are consistent. To make the center of symmetry when

photograph,and the movement range of cassette get larger And have manual brakes

convenient location, bed body can 360 ° moving flexible

b. Upright Bucky Stand



Model:FNX100 Veterinary use mobile x-ray machine

The height : 1768 mm

Movement range of up and down : 470mm~1468 mm

Grid Density :103L/INCH

Grid Ratio : 10:1

Focus Distance : 150cm ,

Features:  with Stationary Filter line, 18” X18”

         Can take maximum 17”X17” X ray film

Ⅲ,Usage

This is a modular X ray photography medical diagnosis equipment, which is available for

wards,emergency,operating room,ICU and so on. An mobile diagnosis equipment for

photography of body locutions such as head,arms,thoracic cavity and waist abdomen





Other models for choice:

Model: FN70A

Model:FNX100 Veterinary use mobile x-ray machine

Model:  FNX100BY

Model:FNX100 Veterinary use mobile x-ray machine

Model:   FNX-300BS

Model:FNX100 Veterinary use mobile x-ray machine

Model:    FNX102

Model:FNX100 Veterinary use mobile x-ray machine

Model:FNX100 Veterinary use mobile x-ray machineModel:FNX100 Veterinary use mobile x-ray machineModel:FNX100 Veterinary use mobile x-ray machine
