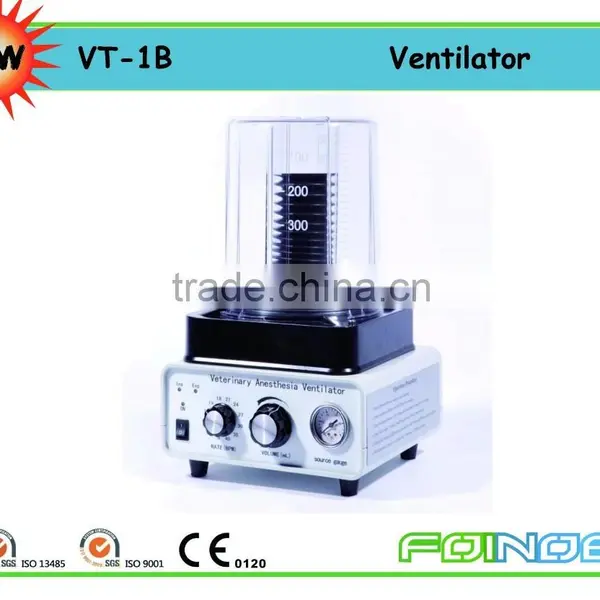

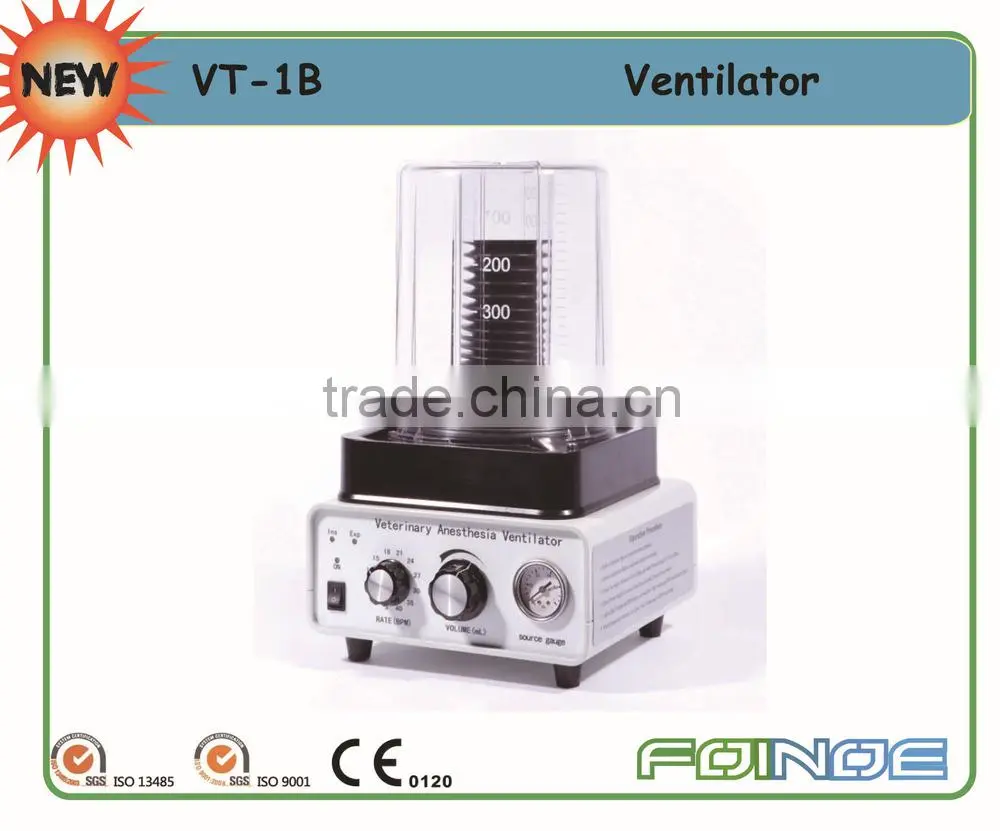

Vet hospital ventilator
Special Feature:
1, CE Certificated
2, Alloy metal stents, spray technology, very durable
3, Stainless steel pressure monitoring gauge, the scope: 0-1Mpa, 0.05 scale readable.
4, Protective power switch and back-up power interface, effective to eliminate the accident happens.
5, New generation veterinary anesthesia ventilator design and architecture platforms
6, Professonal veterinary ventilator operation, some parameter could be set automatically.
7, Adopt power supply rejection grid anti-jamming technology, more stable performance.
8, Good mobility performance,pass vibration test.
9, Easy operation, simple and clear.
10,International standard interface, could match with any anesthesia machine.
Technical Specification
1,Drive:Pneumatic driven and electrical control
2, Operation: Button
3,Sensor Type: Rotor sensor
4,Respiratory mode:IPPV,MAN
5,Tidal Volume:50~1600mL
6, I:E: 1:2 BPM:3-40bpm
7,TV monitoring:20~300 mL,300 ~2000 mL
8,Airway pressure monitoring:-20-100cmH2O
9, Gas source gauge monitoring :0-1MPa
10, Monitor:Inspiratory indicator,Expiratory indicator,Power indicator
11, Gauge:O2 one
12,Small animal bellows,TV:0~300mL
13, Big animal bellows,TV:300~1600mL
Power supply requirement:
1,Power:220V,50HZ or 110V,60HZ
2,Input power: No more than 60VA
3,Maximum input current:5A
4,Main power entrance fuse: 250V 5A φ5X20(F)
Power cable:
1,Length:3 meter
2,Rated voltage:90 to 264V AC
3,Maximum current:220 -240VAC 10A
4,Type: three-core cable (medical grade)
Environment requirement
Temperature |
Operation:18-36℃ Storage: -20-55℃ |
Humidifier |
Operation:45%-75% Storage: ≤93% Operation: 45%-75%
|
Atmospheric pressure |
Operation: 0.95~1.05 bar Storage:500hpa~1060hpa, |
Altitude:Operation |
Operation: 500 to 800 mmHg (3565 to -440m) Storage:375 to 800 mmHg (5860 to -440m) |
Size: 240mm(w)×370mm(H)×230mm(L)
Other models for choice:
