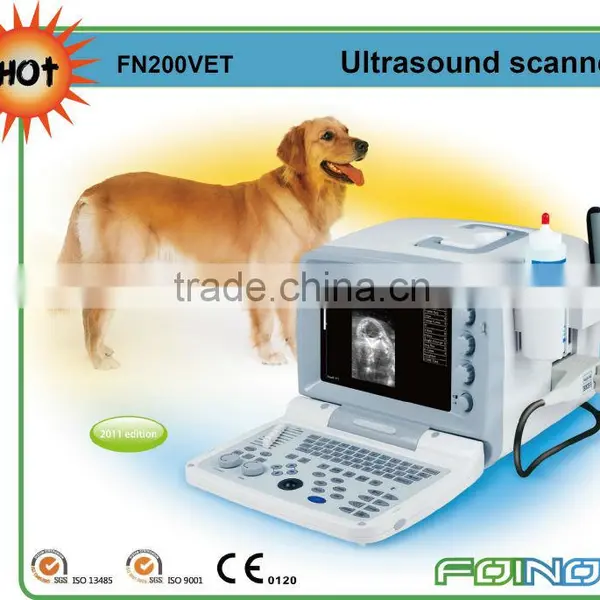

FN200V Full digital B model veterinary portable ultrasound scanner

 Parameter

 Adopt ARM7 Embedded Control Systems, FPGA signal processing systems and specially selected ultrasonic hardware system, making the machine safer and more reliable.
 10" high resolution CRT monitor,progressive scanning without sparkle.
 Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
 Double probe sockets, automatically identify the probe, support several optional probes.
 Body mark: 1. general 2.bovine   3.canine 4.equine 5.feline 6. cardiac 7.swine---7 kinds, total 27 body marks with probe position.
 Display mode:B,2B,4B,B/M,M, total 5 kinds.
 10 grades depth adjustment, maximum display depth is 236mm.
 Gain range:0~127dB.
 Dynamic range:27~90dB.
 Gray:256.
 Intelligent TGC control: 8 segments.
 Frame frequency:30 frames/second.
 Pseudo-color: 8 kinds (incl. B/W).

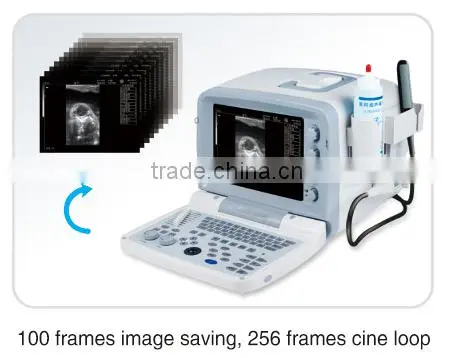

 Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss of image when power off.
 Cine loop:256 frames.
 Puncture guiding function( 2 guiding lines, angle and position adjustable).
 General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.
 Cardiac measurement: depth, slope, heart rate, time.
 OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
 Automatically calculate the Back fat and Lean percentage of swine.
 OB report function.
 Two USB ports support large capacity U disk (support document management/software upgrades/one-key storage), and color laser printer directly print various images and reports.
 Dual-mode TV output:PAL/NTSC, connecting to video recorder and ultrasonic working station.
 Power supply:AC110/230V -15%~+10%(self-adaptation supply voltage)60/50Hz±1Hz.
 Net weight:12kg.
 Main unit size:387x319x270mm(length x width x height).

 Standard configuration:

 Main unit: 1 pc.
 10" high resolution CRT monitor: 1pc.
 Double probe sockets, automatically identify probe.
 6.5MHz linear rectal probe : 1 pc.

 Optional configuration:

 Probe
6.5MHz multi-frequency micro-convex probe
3.5MHz multi-frequency convex probe
7.5MHz multi-frequency linear probe
6.5MHz multi-frequency trans-vaginal probe
4.0MHz multi-frequency convex rectal Probe
 Trolley
 Video recorder(P93W-S)
 Color laser printer(Specified models:HP Color LaserJet CP1515n,HP Color LaserJet CP1525n)
 Color LCD monito
