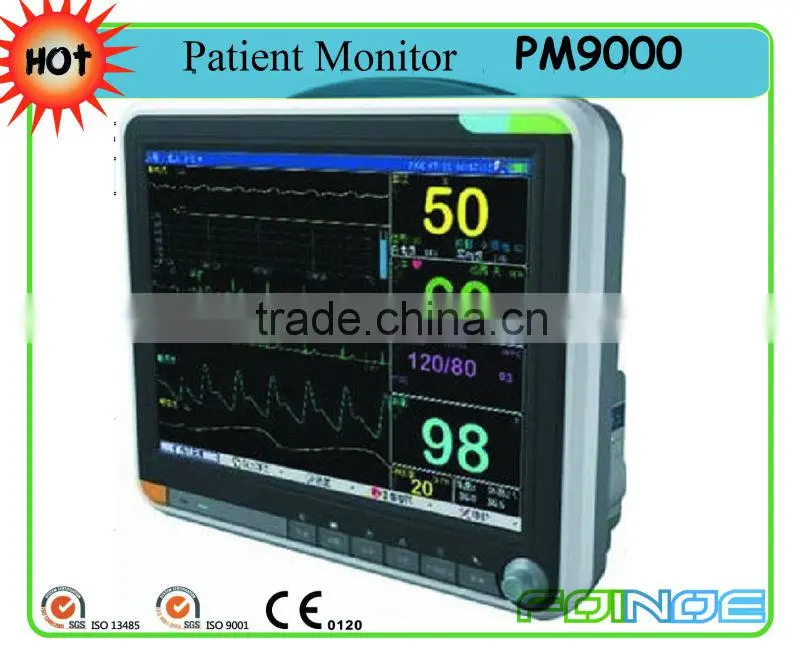

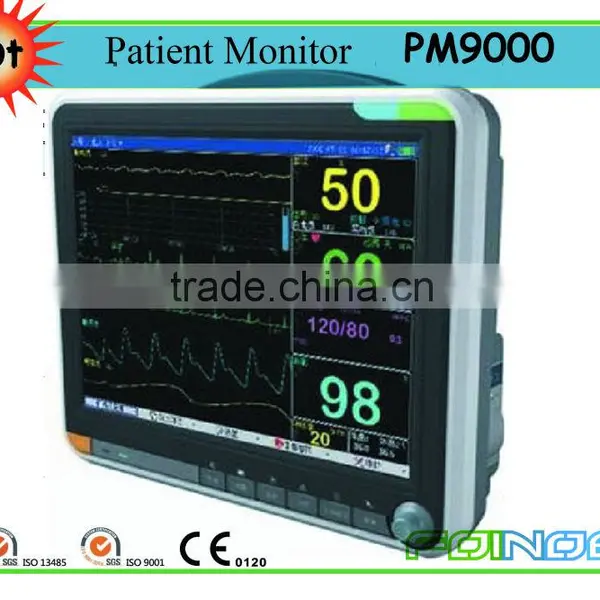

PM-9000 High Quality Medical Price of Patient Monitor

PM-9000 High Quality Medical Price of Patient Monitor thumbnail-1
PM-9000 High Quality Medical Price of Patient Monitor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, patient monitor
Brand Name:
FoiNoe
Model Number:
PM9000
Contact Supplier Request Quote Chat Now
Nanjing Foinoe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nanjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, patient monitor
Brand Name FoiNoe
Model Number PM9000
Place of Origin Jiangsu, China

PM-9000  High Quality Medical Price of Patient Monitor



PM-9000 High Quality Medical Price of Patient Monitor

[Feature]

     15high resolution TFT LCD display

     One level menu, easy to use

    Maximum 720 hours tabular and graphic trends of all parameters

     Bulit-in thermal recorder and battery

     Suitable for adult, pediatric, neonatal patient

     13 Type Arrhythmic analysis, ST segment Analysis, pacemaker detection

     Anti-ESU, anti-defibrillator

     OxyCRG Dynamic View and short Trend Coexist Display, nurse_calling system

     Standard network interface, can connect to the central monitor system

[Standard]

   12.1 inch LCD, 5 ECG leads, RESP, NISP, PR, SPO, 2-TEMP, Rechargable Battery

[Optional]

    Thermal Recorder, 2-IBP, ETCO2



[Specification]

ECG

Lead Mode: 3/5 Leads

Gain:x0.25, x0.5, x1, x2, auto

Heat Rate: 15~300bpm(adult), 15~350bpm(neonatal)

Accuracy: ±1%

Resolution: 1 bpm

ST Segment Range: -2.0~ +2.0 mV

ARR Detecing: Yes

Pacemaker: Yes

Electrode offset potential: ±300mV

Leakage Current: < 10 uA

Bandwidth

Surgery: 1-15 Hz

Monitor: 0.5-35 Hz

Diagnostic: 0.05 ~ 100Hz





RESPIRATION

Method: Impedance between R-F(RA-LL)

Base line Impedance Range: 0-2.5 K

Bandwith: 0.3 ~ 2.5 Hz

Measuring Range

Adult: 0 ~ 120rpm

Neo/Ped: 0-150 rpm

Resolution: 1 rpm

Accuracy: ±2 rpm

Apnea Alarm: 10-40 S



SPO

Measuring And Alarm Range: 0 ~ 100%

Resolution: 1%

Accuracy: 70% ~ 100%±2 %

         0% ~ 69% unspecified

Actualization interval: about 1 Sec.

Alarm Delay: 10sec.





NIBP

Word Mode: Manual, Auto, Continuous

Measuring Period in STAT Mode: 5Min

Pulse Rate Range: 40 ~ 240 bpm

Measurement Types: SYS, DIA, MEAN

Measuring range

Adult Mode

SYS: 40 ~ 270 mmHg

DIA: 10 ~ 215 mmHg

MEAN: 20 ~ 235 mmHg

Pediatric Mode

SYS: 40 ~ 200 mmHg

DIA: 10 ~ 150 mmHg

MEAN: 20 ~ 165 mmHg

Neonatel Mode

SYS: 40 ~ 135 mmHg

DIA: 10 ~ 100 mmHg

MEAN: 20 ~ 110 mmHg

Resolution Pressure: 1 mmHg

Accuracy Pressure Maximum Mean error:±5mmHg

Maximum Standard deviation: ±8mmHg

Overpressure Protection
