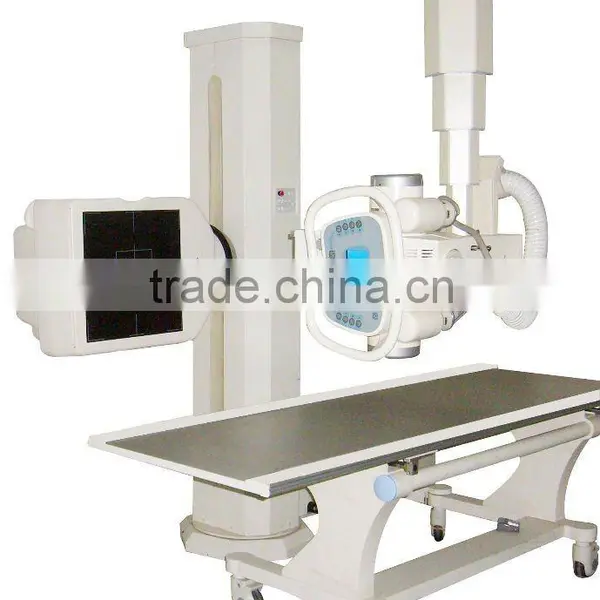

Angell-DR CCD Detector

Name: Angell-DR CCD Detector
Brand: Angell
SKU: 100424991
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Properties:

Other, Medical X-ray Equipments & Accessories

Brand Name:

Angell

Model Number:

Angell-Detector

Shenzhen Angell Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Properties Other, Medical X-ray Equipments & Accessories

Brand Name Angell

Model Number Angell-Detector

Place of Origin Guangdong, China

Specifications

Angell-DR is suitable for digital upgrading of traditional screen/film x-ray imaging equipment.

Main Function
Digital Detector		Blue Plus CCD
Scintillator		Cesium Iodide,Csl / Gd202S,GOS
Effective View Field		17″×17″/ 17″×14″
Filling Factor		100%
Pixel Matrix		4k×4k,3kx3k
Pixel Size		108um (micron)/ /140um
Maximum Spac Resolution		4.6lp/mm/3.57lp/mm
Grayscale		14bits
Time to Take Image		≤5 seconds
POD Technology		The size of the pixel can be doubled and the dose will be reduced
Power Supply Requirement
220V AC 10A 50Hz
In the case of product upgrade, the specification may be changed without notice.
Multi-function Automatic Stand
Imaging Part		all Purpose
Vertical Movement		43-183cm(center of the detector)
Maximum Speed		30 mm/sec
Detector Rotation		0-270 degree
Rotation Speed		2 degree/sec
Main Functions of the Angell-1600 Workstation
Imaging Part Indicator,Tissue Equalization,Filter Correction,Grayscale Transform
Window/Level Adjustment,Gamma Correction,ROI Equalization,Black/White Reversion
Image Segmentation, Mark,Enhancement,Smoothing
Sharpening,Compression,Magnification,Graphic/text report, Printing/typeset
Net Interface DICOM Standard Compatible
Upgrading Requirement
Angell-DR is suitable for digital upgrading of traditional screen/film x-ray imaging equipment
The basic requirement is an X-ray generator or digital gastroenterography
with high frequency and high voltage above 30KW,200mA
