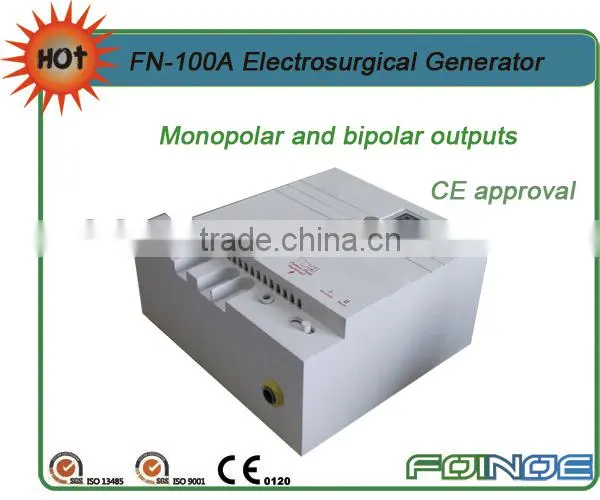

FN-100A Electrocoagulation Electrotome with CE
FEATURES:
1, Microcomputer control
2, Isolated output
3, Patient plate connection warning
4, Auto-protection of short circuit
5, Automatic system self-checking
6, Mono-polar Coagulation and Bipolar Coagulation
7, 0.1w minimum adjustment, mainly applied to plastic surgery, micro-operations
Technical Specifications | ||
Power: |
220V±22V,50Hz±1Hz(110V±11V,50/60Hz) |
|
Bipolar: 550KHz | ||
Power Rating: |
300VA±10% |
|
Operating Mode: |
--- |
|
Monopolar Coag | ||
Contact Coag: |
0~30W(Load 300Ω) |
|
Bipolar (Time delay:0~9s) | ||
Bipolar Coagulation: |
0~30W(Load 300Ω) |
|
Power Consumption: |
300VA±10% |
|
Surgery Type |
For Micro-Operations as Nerve, Facial Features, Anaplasty, Dental Shaping, Pets Clinic |
|
|
Dimension L*W*H |
200mm*160mm*90mm |
|
Weight |
5kg |
|
Monopolar Electrosurgical Unit For Your Reference!

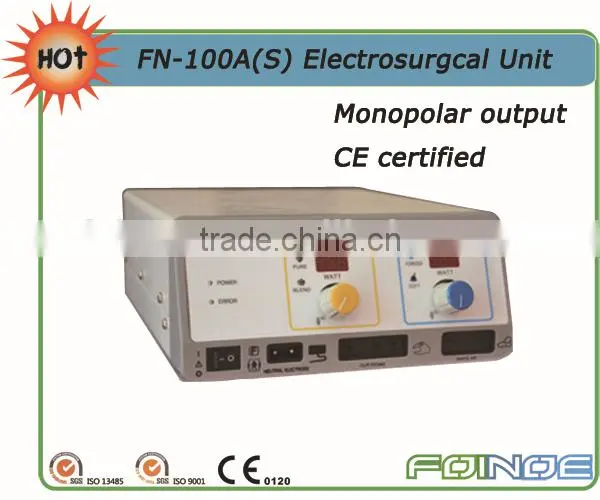

Model:FN-100A(S)
Technical Specifications | ||
Power: |
220V±22V,50Hz±1 Hz(110V±11 V,50/60Hz) |
|
Operating Frequency: |
Monopolar:330KHz |
|
Power Rating: |
500VA±10% |
|
Operating Mode: |
Monopolar Cut |
|
Pure Cut |
0~100W(Load 300Ω) |
|
Blend |
0-50W(Load 300Ω) |
|
Monopolar Coag | ||
Contact Coag: |
0~80W(Load 500Ω) |
|
Forced Coag: |
0~40W(Load 500Ω) |
|
Surgery Type |
For Ordinary Surgical Operations |
|
Model:FN-100A(L)
Technical Specifications | ||
Power |
220V±22V,50Hz±1 Hz(110V±11 V,50/60Hz) |
|
Operating Frequency |
Monopolar:330KHz |
|
Power Rating |
500VA±10% |
|
Operating Mode |
Monopolar Cut |
|
Pure Cut |
0~150W(Load 300Ω) |
|
Blend |
0~150W(Load 300Ω) |
|
Monopolar Coag | ||
Contact Coag |
0~80W(Load 500Ω) |
|
Forced Coag |
0~40W(Load 500Ω) |
|
Surgery Type |
For Ordinary Surgical Operations |
|
Model:FN-200B
Technical Specifications | ||
Power: |
220V±22V,50Hz±1 Hz(110V±11 V,50/60Hz) |
|
Operating Frequency: |
Monopolar:475KHz |
|
Power Rating: |
800VA±10% |
|
Operating Mode: |
Monopolar Cut |
|
Pure Cut |
0~200W(Load 300Ω) |
|
Blend1: |
0~150W(Load 300Ω) |
|
Blend2: |
0~100W(Load 300Ω) |
|
Monopolar Coag | ||
Contact Coag: |
0~120W(Load 500Ω) |
|
Forced Coag: |
0~100W(Load 500Ω) |
|
Soft Coag: |
0~50W(Load 500Ω) |
|
Surgery Type |
For Ordinary Surgical Operations |
|
Bipolar Electrosurgical Unit For Your Reference!

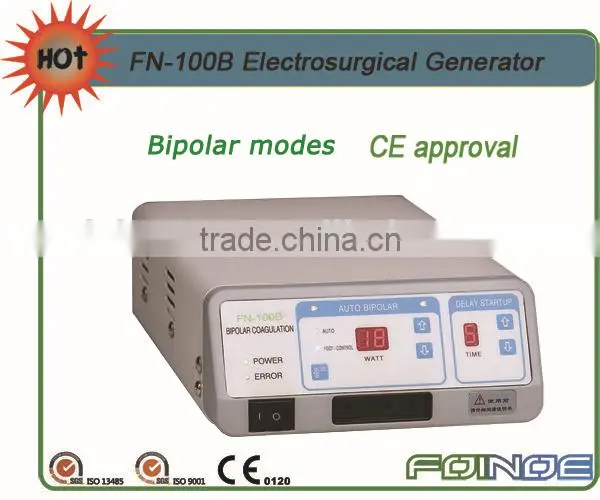

Model:FN-100B
Technical Specifications | ||
Power: |
220V±22V,50Hz±1 Hz(110V±11 V,50/60Hz) |
|
Operating Frequency: |
Bipolar: 1000KHZ |
|
Power Rating: |
300VA±10% |
|
Operating Mode: |
Bipolar (Time Delay:0~9s) |
|
Bipolar Coagulation: |
0~80W(Load 100Ω) |
|
Bipolar Cut: |
0~80W(Load 100Ω) |
|
300VA±10% | ||
Power Consumption: |
300VA±10% |
|
Surgery Type |
For Ordinary Surgical Operations |
|
Monopolar & Bipolar Electrosurgical Unit For Your Reference!
Model:FN-300
Technical Specifications | ||
Power: |
220V±22V,50Hz±1 Hz(110V±11V,50/60Hz) |
|
Operating Frequency: |
Monopolar:475KHz |
|
Bipolar: 1000KHZ | ||
Power Rating: |
800VA±10% |
|
Operating Mode: |
Monopolar Cut |
|
Pure Cut |
0~300W(Load 300Ω) |
|
Blend 1: |
0~200W(Load 300Ω) |
|
Blend 2: |
0~100W(Load 300Ω) |
|
Monopolar Coag | ||
Contact Coag: |
0~120W(Load 500Ω) |
|
Forced Coag: |
0~100W(Load 500Ω) |
|
Soft Coag: |
0~50W(Load 500Ω) |
|
Bipolar | ||
Bipolar Coagulation: |
0~100W(Load 100Ω) |
|
Bipolar Cut: |
0~50W(Load 100Ω) |
|
Surgery Type |
For Variety of Gynecological Operations With Interface for Endoscopy |
|
Model:FN-350
Technical Specifications | ||
Power: |
220V±22V,50Hz±1 Hz(110V±11V,50/60Hz) |
|
Operating Frequency: |
Monopolar: 475KHz |
|
Bipolar: 1000KHz | ||
Power Rating: |
800VA±10% |
|
Operating Mode: |
Monopolar Cut |
|
Pure Cut |
0~300W(Load 300Ω) |
|
Blend 1: |
0~300W(Load 300Ω) |
|
Blend 2: |
0~200W(Load 300Ω) |
|
Blend 3: |
0~100W(Load 300Ω) |
|
Monopolar Coag (Endoscopic mode and a normal mode) | ||
Contact Coag: |
0~120W(Load 500Ω) 0~120W(Load 500Ω) |
|
Forced Coag: |
0~100W(Load 500Ω) 0~100W(Load 500Ω) |
|
Soft Coag: |
0~50W(Load 500Ω) 0~50W(Load 500Ω) |
|
Bipolar | ||
Bipolar Coagulation: |
0-100W 0-100W 0~50W(Load 100Ω) |
|
Bipolar Cut: |
0~50W(Load 100Ω) |
|
Surgery Type |
For Variety of Gynecological Operations With Interface for endoscopy |
|
OUR SERVICE :
1. High quality with competitive price.
2. Small quantity orders are also acceptance.
3. We also provide OEM and ODM services.
4. Strictly control system and test methods to guarantee product’s quality.
5. Skilled workers, professional technical personnel and first-rate equipments.
Nanjing Foinoe Co., Ltd. is a specialized supplier of medical, dental, and biochemistry lab products. Our number one priority is customer satisfaction and we achieve this through professional customer support and quality products. Our knowledge and experience in the health care market ensures that we provide our customers with exceptional service.
Most of our products have CE and FDA certifications, and we guarantee your satisfaction by our product lines.
Our goal is to achieve long-term cooperation. This is accomplished through not only quality products, but also striving to provide the best price to our customers.
