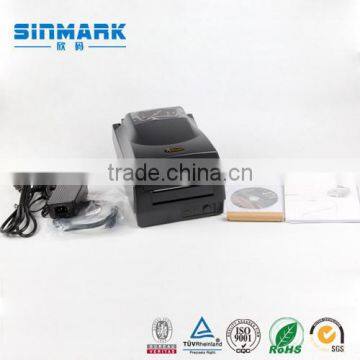

Argox Desktop thermal transfer barcode label printer / QR barcode label printer
Argox OS-214 plus
Argox Barcode printer argox os-214 plus is the newest generation of Argox's most successful medium volume printer model.
The OS-214plus is the newest generation of Argox's most successful medium volume printer model. Its attractive and stylish design is just one of several new features and advanced functions. The significantly larger onboard memory increases print capability for producing a wider range of label applications. A full-speed USB interface adds flexibility for use with any of today's notebook and other computers. Its space-saving design offers the same small footprint and light weight as previous models for easy and convenient placement. The new OS-214plus maintains Argox's leading position as the industry standard for style, price, and performance.
Advantages:
1. 203dpi resolution model available
2. Centronics Parallel, RS-232, USB and interfaces available
3. Durable and easy maintenance : only 10 screws disassemble entire unit
4. Snap-in thermal print head loads in 2 seconds

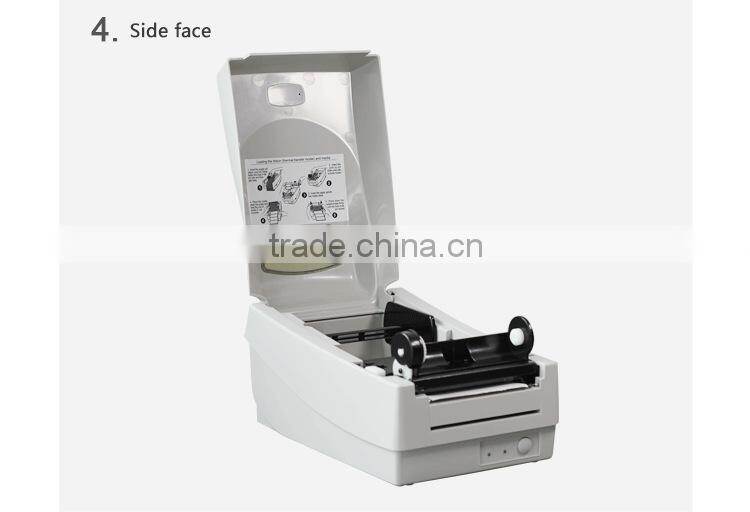

5. Easy media loading & ribbon installation
6. Detachable top cover for kiosk and other special applications
7. PPLA, PPLB emulations available
8. Support 1D/GS1 Data bar, 2D/Composite codes and QR barcodes
9. Full range of options :Cutter, Stacker, Font card, RTC and standalone keyboard (Argokee)
10. Printer Server external for Ethernet/Wireless options
Printing method |
Direct Thermal / Thermal Transfer |
||
Printing resolution |
203 dpi (8 dots/mm) |
||
Printing Speed |
2~ 3 ips (51~76mm/s) |
||
Printing Length |
Max 43”(1092mm) |
||
Printing Width |
Max 4.16”(105mm) |
||
Memory |
8MB DRAM(7MB user available) 4MB Flash ROM(3MB user available) |
||
CPU Type |
32 bit RISC microprocessor |
||
Sensors |
Reflective |
||

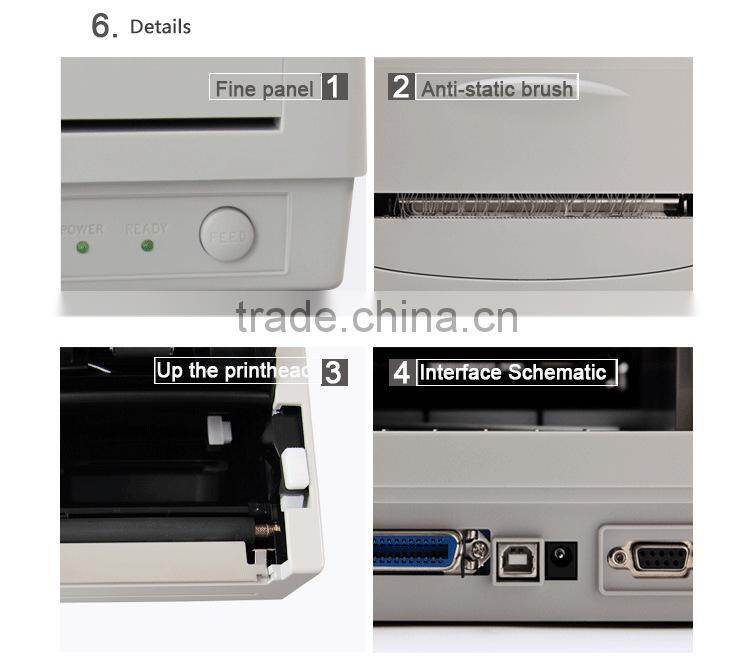

Operation Interface |
LED indicator (Power/Ready)x 2, Button(Feed) x 1 |
||
Communication Interface |
Centronics Parallel, RS-232, USB |
||
Fonts |
Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable |
||
1D Barcodes |
PPLA: Code 39, Code 93,Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars , Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen , FIM PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human readable check digit, Matrix 2 of 5, UPC A/E 2 and 5 add-on, EAN-8/13, Code 128UCC, UCC/EAN, Postnet |
||
2D Barcodes |
PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR Code, Composite codes PPLB: MaxiCode, PDF-417, QR Code, Composite codes |
||
Graphics |
PPLA: PCX, BMP, IMG, HEX ,GDI PPLB: PCX, Binary raster , GDI |
||
Emulation |
PPLA / PPLB |
||
Software - Label editing |
Windows Driver (Win 2000/XP/Vista/Windows 7) BarTender, ArgoBar Pro |
||
Software - Utility |
Printer Utility,Font Utility |
||
Media Type |
Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper |
||
Media |
Max Width: 4.33”(110mm) Min Width:1”(25.4mm) Thickness: 0.0025”~0.01”(0.0635~0.254mm) Max roll capacity(OD): 4.3”(109mm) Core size:1”(25mm) optional, 0.5”(12.7mm) |
||
Ribbon |
Ribbon Width: 1”~4” Ribbon roll – max OD: 1.45”(37mm) Ribbon Length: max 92m Core size – ID: 0.5”(13mm) with notch, Wax, Wax/Resin, Resin (Outside Ribbon) |
||
Dimensions |
W 186mm x H 165mm x L 278mm |
||
Weight |
2.0kgs |
||
Power Source |
Universal Switching Power Supply Input: 100V~240V, 1.5A, 50~60Hz, Output: 24VDC, 2.4A |
||
Operation Environment |
Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C) |
||
Optional Items |
Cutter, Stacker, RTC Card, Asian Font Card(Traditional Chinese, Simplified Chinese, Korean and Japanese), ArgoKee |
||
Agency Listing |
CE, FCC, UL, CUL, CCC, RoHS |
||
Attention |
*This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied in this summary. Specifications are subject to change without notice. All trademarks are the property of their respective owners. More specific information, please refer to user’s manual. |
